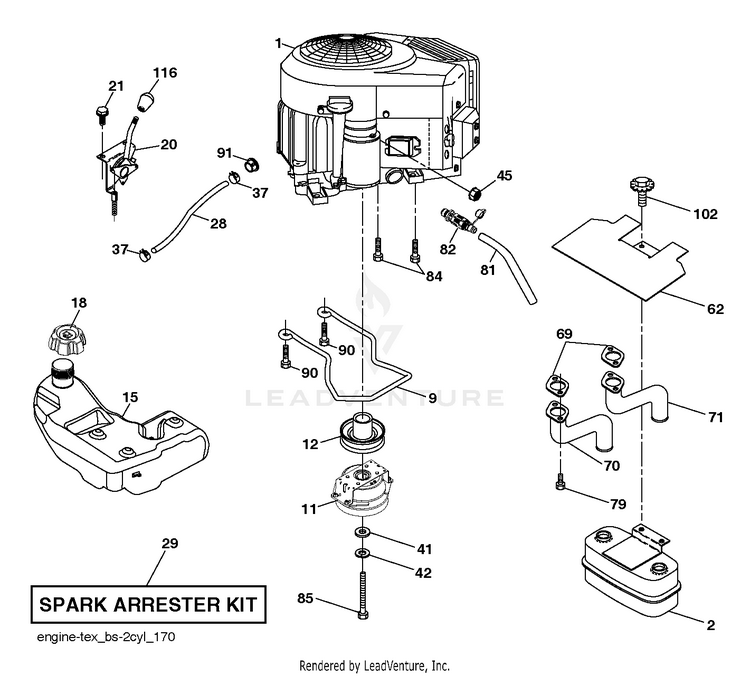

Husqvarna TS 148X - 96043030300 (2019-06) Riding Tractor

Model: TS 148X - 96043030300 (2019-06)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
15
FUEL TANK, 3GAL, 2.25"NECK, 20 HUS-599306004
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044864
...
85
BOLT.HEX.7/16-20X3.75.GR5.RED HUS-501606601
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
71
EXHAUST.TUBE.LH.BS/TWIN HUS-581881101
...
90
SCREW 3/8-16X1 HUS-817000616
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
102
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
82
VALUE.OIL.DRAIN HUS-532428287
...
37
HOSE CLAMP HUS-532123487
...
69
GASKET.MUFFLER HUS-532165391
...
116
KNOB - SHIFT HUS-539132624
...
18
CAP ASSY FUEL 3" GRAY HUS-585124801
...
12
PULLEY.ENGINE.TUFFTORQ HUS-532405097
...
20
THROTTLE.PRO.RSTART. 38 HUS-587242701
...
79
Screws HUS-596134202
...
1
ENGINE B&S MODEL NO. 44N877-0018-G1 (597895801) HUS-000000000
...
91
BUSHING.1.375OD HUS-532187495
...
45
Hardware HUS-596133601
...
11
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 HUS-587241601
...
84
SCREW.3/8-16 HUS-817060620
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
41
WASHER HUS-532126197
...
21
Screws HUS-596321701
...
9
Keepers HUS-596501502
...
2
MUFFLER.ASM.TWIN.MNTG.BRACKET HUS-589818702
...
70
EXHAUST.TUBE.RH.B&S.TWIN.INTEK HUS-581881001
...
42
Washers HUS-596238901
