Husqvarna TS 142TX - 96041043400 (2019-06) Riding Tractor

Model: TS 142TX - 96041043400 (2019-06)

Back To Assemblies

Save Part Not Listed?
product name

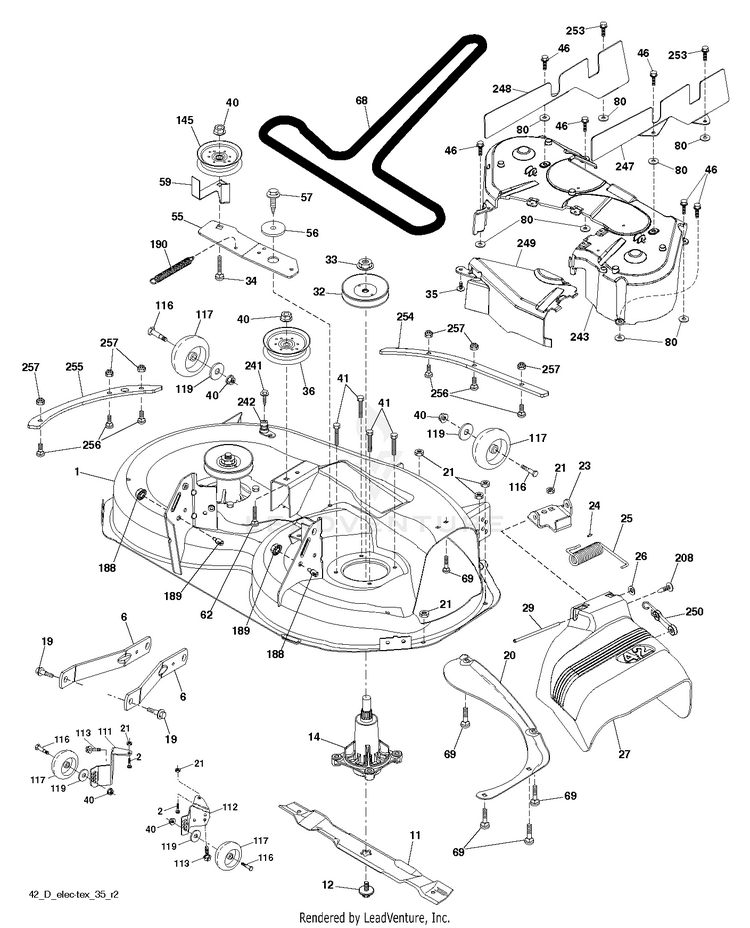

MOWER DECK / CUTTING DECK

...
...
189
GSPW Nuts HUS-596135701
...
62
Bolts HUS-596136301
...
14
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
56
SPACER.RETAINER HUS-532199092
...
23
BRKT.DEFLECTOR.38"2005+ HUS-532192557
...
119
GSPH HUS-596134901
...
32
PULLEY MANDREL HUS-532173436
...
69
Bolts HUS-596136401
...
36
PULLEY.IDLER.2006 HUS-532196106
...
257
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
20
SERVICE KIT BAFFLE.VORTEX BAFF HUS-531167001
...
6
SERVICE.KIT ARM.SUSPENSION.MOW HUS-529846401
...
117
WHEEL.GAUGE.RALLY.NARROW HUS-589527401
...
27
Deflectors HUS-597316501
...
111
SERVICE KIT BRKT.WHEEL.GAUGE B HUS-531170801
...
11
42" HI-LIFT BLADE HUS-532138971
...
208
SCREW 3/8-16X1/2 HUS-817670608
...
248
SHIELD.DECK.LH.2"TEX.FREN.010 HUS-583457501
...
12
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
241
SCREW.TT.#10-32X.5.3/8.FLANGE HUS-532152927
...
55
SERVICE KIT IDLER.ARM.42" HUS-531171201
...
256
BOLT CUP HEAD SQUARE NECK 1/4- HUS-592807801
...
242
PORT.WASHOUT HUS-532415598
...
255
PLATES.RENFRCE.42DECK.X431SIDE HUS-585317005
...
243
COVER.ASY.TEX.DECK.42" HUS-583479801
...
247
SHIELD.DECK.RH.2"TEX.FREN.010 HUS-583457601
...
19
BOLT.SHOULDER HUS-532196539
...
- -
Decks HUS-598602801
...
188
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
34
GSPW Bolts HUS-596136101
...
26
NUT PUSH M HUS-532110452
...
2
GSPW Bolts HUS-595901601
...
59
SERVICE KIT GUARD HUS-531165901
...
33
Nuts HUS-596134801
...
41
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
254
PLATES.RENFRC.42DECK.PT431FRNT HUS-585316805
...
1
Decks HUS-598602801
...
116
Bolts HUS-596434402
...
253
TULFLOK.RIVET HUS-583441001
...
80
PALNUT 1/4 HUS-532423062
...
112
SERVICE KIT BRKT.WHEEL.GAUGE B HUS-531170901
...
145
PULLEY.IDLER.FLAT HUS-532177968
...
250
KIT.STRAP.BUNGEE.DEFLECTOR.SVC HUS-583508201
...
24
CAP-SLEEVE LT HUS-532105304
...
68
BELT V SECONDARY HUS-532144959
...
46
SCREW.1/4-20X5/8 HUS-532137729
...
25
SPRING.TORSION.DEFLECT HUS-532197026
...
21
Hardware HUS-596040501
...
249
COVER.CABLE.CLUTCH.38/42"TEX HUS-583298901
...
40
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
57
SCREW 3/8-16X1 HUS-817000616
...
190
SPRING.MOWER.DRIVE.ELECTRIC HUS-532197251
...
35
FASTENER.XMAS.TREE HUS-532133835
...
113
BOLT.5/16HEX.WHS.HD HUS-817000510
...
29
Rods HUS-595297001
