Husqvarna TS 142 - 96043031400 (2019-07) Riding Tractor

Model: TS 142 - 96043031400 (2019-07)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
1
ENGINE B&S MODEL NO. 31S777-0004-G1 (597971301) HUS-000000000
...
2
MUFFLER.ASM.SINGLE HUS-590645302
...
94
EXHAUST.TUBE.B&S.28/31 HUS-581880901
...
45
Hardware HUS-596133601
...
21
Screws HUS-596321701
...
79
Screws HUS-596134201
...
90
SCREW 3/8-16X1 HUS-817000616
...
42
Washers HUS-596238901
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044864
...
84
SCREW.3/8-16 HUS-817060620
...
85
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
12
ENGINE.PULLEY HUS-586478501
...
37
HOSE CLAMP HUS-532123487
...
69
GASKET.ENG.1.313 ID.TIN PLATED HUS-532272293
...
87
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
9
Keepers HUS-596501502
...
20
THROTTLE CABLE HUS-587242604
...
18
CAP ASSY FUEL 3" GRAY Fits 2.75" filler neck HUS-585124801
...
91
BUSHING.1.375OD HUS-532187495
...
18
FUEL CAP Fits 2.00" filler neck HUS-529989701
...
15
FUEL TANK, 3GAL, 2.25"NECK, 20 Fits 2.75" filler neck HUS-599306004
...
82
VALUE.OIL.DRAIN HUS-532428287
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180

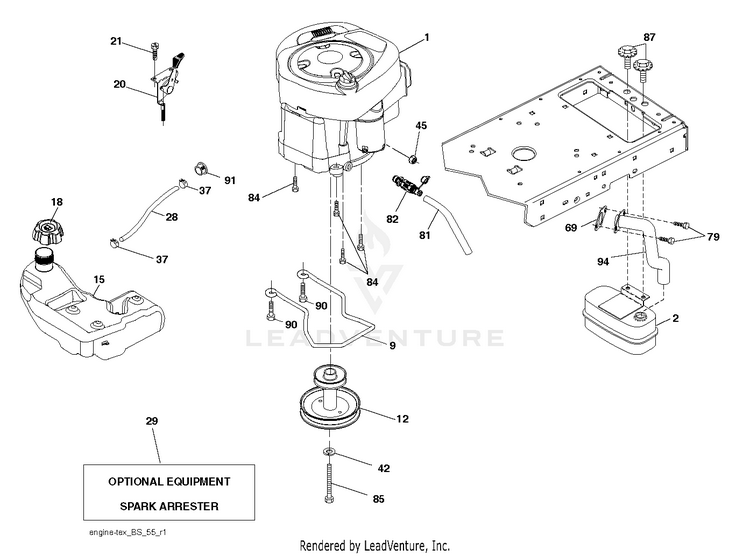

Schematic Image Zoomed
