Husqvarna TS 142 - 96041044000 (2019-09) Riding Tractor

Model: TS 142 - 96041044000 (2019-09)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
86
NUT.HEX.FLANGE.TOPLOCK HUS-532184362
...
15
FUEL.TANK.ASM.NON-EPA Non-EPA HUS-581289901
...
92
SCREW 3/8-16X1 HUS-817120616
...
20
CONTROL.TH/CK.C.BLACK HUS-532176636
...
82
VALUE.OIL.DRAIN HUS-532428287
...
69
GASKET GASKET.EXHAUST. LONCIN HUS-590863601
...
94
TUBE TUBE.EXHAUST.LONCIN 608.T HUS-590864801
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
87
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
2
MUFFLER.ASM.SINGLE HUS-590645302
...
85
CLUTCH BOLT7/16-20X3.5 GR524HR HUS-581332804
...
41
WASHER HUS-532126197
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
15
FUEL TANK EPA HUS-597952203
...
21
Screws HUS-596321701
...
138*
NEEDS DESCRIPTION Only equipped with unit using EPA TANK HUS-587044531
...
37
HOSE CLAMP HUS-532123487
...
12
PULLEY.ENGINE.TUFFTORQ HUS-532405097
...
18
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
9
Keepers HUS-596501502
...
96
Washers HUS-596135301
...
1
ENGINES HUSQVARNA MODEL NO. HS608 (COMPLETE IPL AVAILABLE SEPARATELY) HUS-598693901
...
90
SCREW 3/8-16X1 HUS-817000616
...
97
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
11
CLUTCH.OGURA.4.4PD.GT1.5-EH13V HUS-587241501
...
42
Washers HUS-596238901

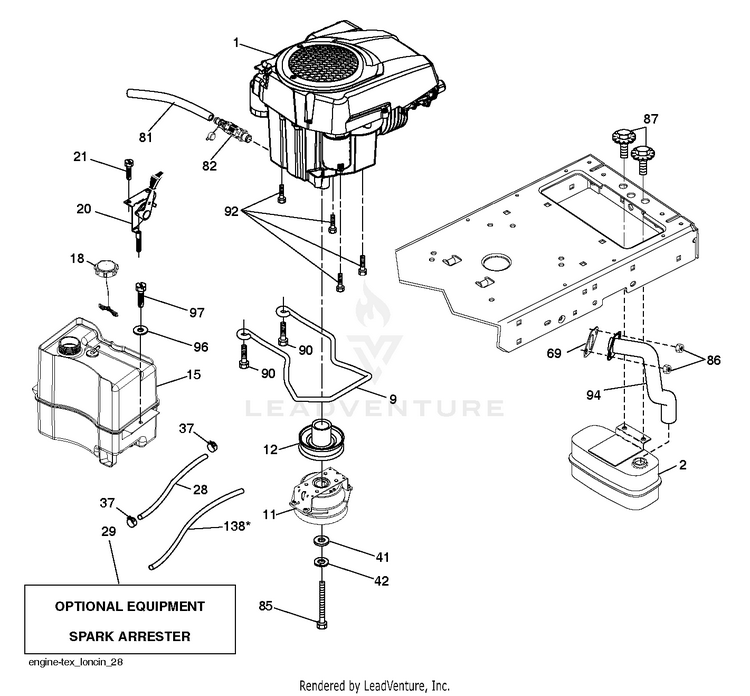

Schematic Image Zoomed
