Husqvarna TS 142 - 96041043000 (2019-04) Riding Tractor

Model: TS 142 - 96041043000 (2019-04)

Back To Assemblies

Save Part Not Listed?
product name

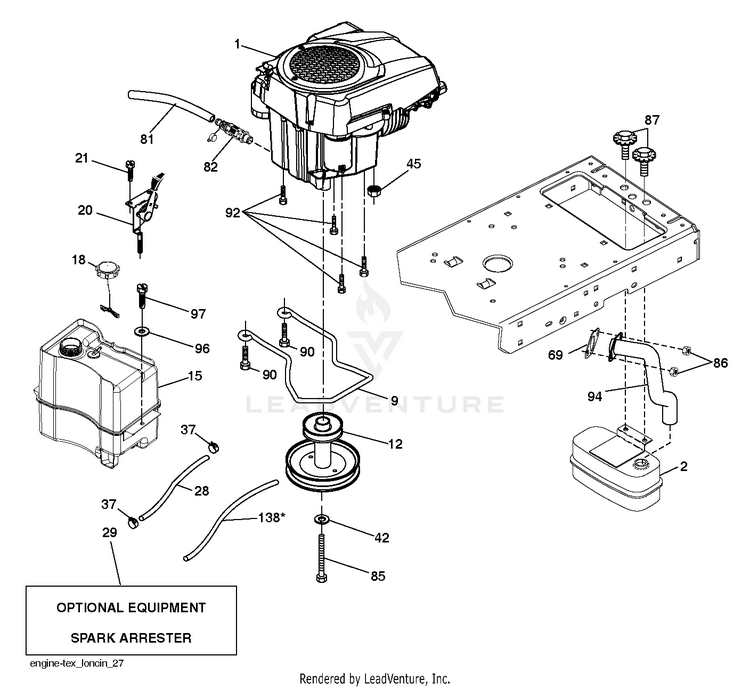

ENGINE

...
...
2
MUFFLER.ASM.SINGLE HUS-590645302
...
12
ENGINE.PULLEY HUS-586478501
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
97
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
138*
NEEDS DESCRIPTION Only equipped with unit using EPA TANK HUS-587044531
...
90
SCREW 3/8-16X1 HUS-817000616
...
96
Washers HUS-596135301
...
15
FUEL.TANK.ASM.NON-EPA EPA HUS-581289901
...
94
TUBE TUBE.EXHAUST.LONCIN 608.T HUS-590864801
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
45
NUT HEXAGON WITH FLANGE, SERRA HUS-593356401
...
92
SCREW 3/8-16X1 HUS-817120616
...
37
HOSE CLAMP HUS-532123487
...
42
Washers HUS-596238901
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
20
CONTROL.TH/CK.C.BLACK HUS-532176636
...
1
ENGINE.LONCIN.SPARE./608 HUSQVARNA MODEL NO. HS608 (COMPLETE IPL AVAILABLE SEPARATELY) HUS-593230101
...
15
FUEL TANK Non-EPA HUS-597952203
...
85
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
86
NUT.HEX.FLANGE.TOPLOCK HUS-532184362
...
82
VALUE.OIL.DRAIN HUS-532428287
...
21
Screws HUS-596321701
...
69
GASKET GASKET.EXHAUST. LONCIN HUS-590863601
...
18
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
9
Keepers HUS-596501502
...
87
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
