Husqvarna TS 142 - 96041036803 (2017-04) Tractors/Ride Mower

Model: TS 142 - 96041036803 (2017-04)

Back To Assemblies

Save Part Not Listed?
product name

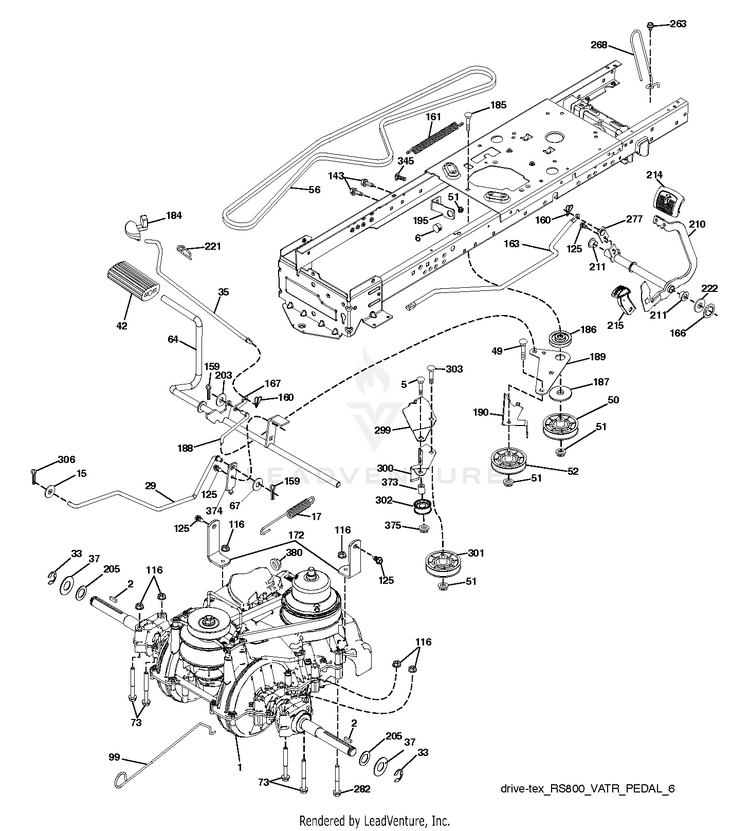

DRIVE

...
...
188
LINK.CLUTCH.GROUND DRIVE.LONG HUS-582217001
...
205
WASHER HUS-532121748
...
211
BEARING.NYLON HUS-532120183
...
210
WELDMENT.PEDAL.VARIATOR.X431 HUS-588921002
...
215
PEDAL.REVERSE.VARIATOR.MS428 HUS-591100101
...
195
BRACKET.BRAKE.BRAKE.VAR.SD HUS-581504601
...
374
ARM.CONTROL.BRAKE HUS-581475201
...
222
WASHER 21/32 X 1-1/4 X 10 GA. HUS-879212010
...
185
BOLT HUS-872110622
...
49
Bolts HUS-596136201
...
221
RETAINER.SPRING.CLIP.H HUS-532403187
...
42
PAD, FOOT PEDAL HUS-510089501
...
52
IDLER.V-GROOVE.910.OFFSET HUS-532194326
...
64
SHAFT VARIATOR PEDAL CROSS HUS-589671401
...
189
SERVICE KIT BELLCRANK HUS-531169001
...
67
WASHER.NYLON;13/32X13/16X.109 HUS-582580101
...
50
IDLER.FLAT.910.OFFSET HUS-532194327
...
1
Transaxle, Variator SD Pedal (590277501) Order parts from transaxle manufacturer.) HUS-000000000
...
17
SPRING.BRAKE.VARIATOR HUS-501487101
...
56
BELT.V.EURO.VARIATOR HUS-581603801
...
203
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
160
GSPW Retainers HUS-596029401
...
51
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
33
E-RING LT HUS-812000001
...
375
Nuts HUS-596322601
...
172
STRAP.TORQUE.VARIATOR HUS-583974201
...
143
Screws HUS-596030701
...
299
BRACKET.MOUNT.IDLERS HUS-532415683
...
300
SERVICE KIT IDLER KEEPER HUS-531153901
...
159
Pins HUS-596029501
...
37
WASHER.HARDENED HUS-532188967
...
73
Bolts HUS-595316601
...
35
Rods HUS-596874801
...
125
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
5
BOLT HUS-874760636
...
6
BUSHING.SNAP.NYL.BLK. HUS-532124028
...
99
ROD.BYPASS.VARIATOR.GEN2 HUS-532435935
...
2
SQUARE KEY HUS-532123583
...
282
BOLT HEX FLGHD 5/16-18X3 GR. 5 HUS-874490548
...
116
GSPW Nuts HUS-596135701
...
184
HANDLE.PARKNG BRK.PRED.LT.428 HUS-532411484
...
163
ROD.CONTROL.PEDAL.VARIATOR HUS-583971301
...
263
SCREW, 3/8-16X3/4 HUS-817000612
...
214
PEDAL.FORWARD.PAD.TEX HUS-532421263
...
380
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
166
NUT.PUSH.625 HUS-532429164
...
277
SUBASM.LINK.ROCKER.PEDAL HUS-532448500
...
373
SPACER.IDLER HUS-581461801
...
190
KEEPER.BELLCRANK.DRIVE HUS-532194318
...
306
Pins HUS-596029601
...
186
SPACER.RETAINER HUS-532194321
...
187
Washers HUS-596135501
...
303
BOLT CARRIAGE HUS-872110618
...
302
PULLEY.IDLER.FLAT.2" HUS-581420501
...
345
Bolts HUS-596136001
...
29
ROD.BRAKE.VARIATOR.SD3.X431 HUS-584823102
...
301
PULLEY.IDLER.V-GROOVE HUS-532415680
...
15
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
167
SERVICE KIT LATCH LATCH.BRAKE. HUS-531152901
...
268
GUARD.MUFFLER HUS-583122001
...
161
SPRING, RETURN LT HUS-532105709
