Husqvarna TS 138L - 96041043900 (2019-05) Riding Tractor

Model: TS 138L - 96041043900 (2019-05)

Back To Assemblies

Save Part Not Listed?
product name

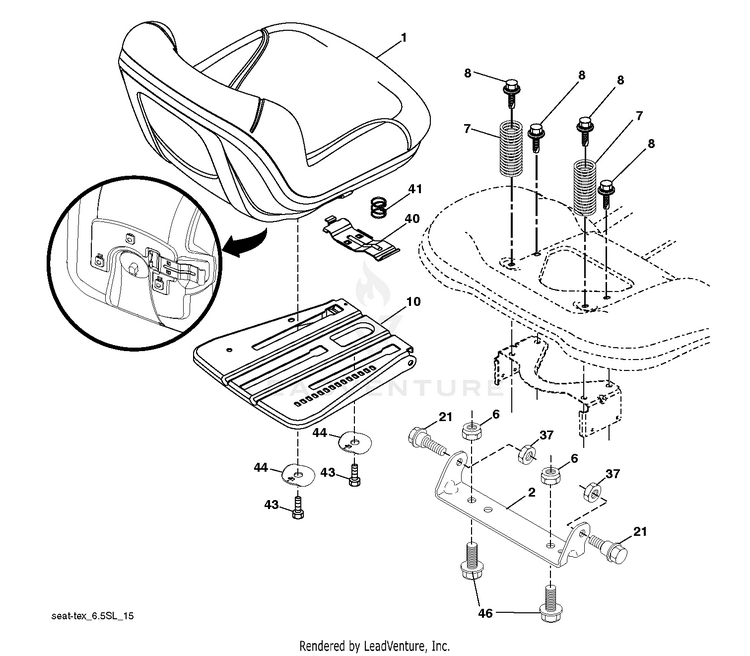

SEAT

...
...
40
Handles HUS-595088102
...
46
BOLT.3/8-16X1;1.25OD.WSHR.SEMS HUS-588090401
...
41
SPRING.LATCH.SEAT.TEX HUS-532198200
...
6
Nuts HUS-596322601
...
8
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
10
KIT.PLATE.SEAT HUS-596768801
...
7
SPRING.COMPRESS.SEAT.TAPERED HUS-589483501
...
44
WASHER.WINGED.3/8ID.1.5OD HUS-501051801
...
37
Nuts HUS-596583702
...
43
BOLT HUS-874760612
...
1
SEAT.TH110.HUSQ.TEX.GREY HUS-583544801
...
2
BRKT.PIVOT.FENDER HUS-532180166
...
21
BOLT.5/16-18X5/8.SHOULDER HUS-587907801
