Husqvarna TS 138L - 96041043100 (2019-08) Riding Tractor

Model: TS 138L - 96041043100 (2019-08)

Back To Assemblies

Save Part Not Listed?
product name

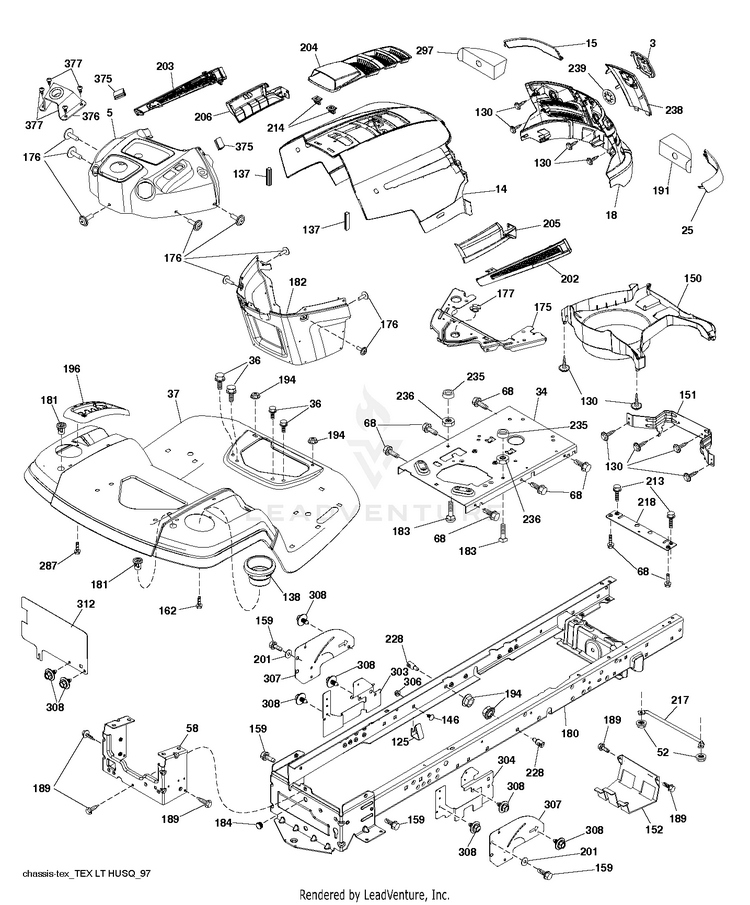

CHASSIS & ENCLOSURES

...
...
183
Screws HUS-595305701
...
25
LENS.HUSQVARNA LT.RH HUS-532406663
...
303
SHIELD.LWR.LH.LTGT.NON30 HUS-589008102
...
312
COVER DRBAR.LT.FRTTANK.ISO X43 HUS-589006702
...
177
BUSHING STEERING HUS-532195228
...
297
INSERT REFLECTIVE HUS-532406665
...
238
TRIM.HUSQ LT.668 HUS-532407881
...
307
SHIELD.UPPER.LT.GT.ISO HUS-587494601
...
5
SUBASM.DASH.UPPER.W/BUMPER HUS-532438964
...
375
BUMPER CLIP-ON. DASH 1" HUS-586908201
...
206
SKIRT.SIDE.HUSQVARNA.LT.LEFT HUS-532441345
...
18
ASM.GRILLE HUSQVARNA.LT.498 HUS-532439421
...
150
AIR DUCT HUS-532406662
...
34
PLATE.ENGINE.WELDED.CHASSIS HUS-580910801
...
218
X-PIECE.HOOD.STOP.NON/ HUS-532196395
...
182
DASH.LOWER.PREDATOR LT HUS-532407176
...
52
Hardware HUS-596040501
...
146
BOLT.RDHD.SHT.SQNK.3/8-16X5/8 HUS-581857901
...
180
CHASS.WLDMNT.TL.12GA/2P.48/54 HUS-532415063
...
36
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
68
Screws HUS-596030701
...
15
LENS.HUSQVARNA LT.LH HUS-532406664
...
159
SCREW, 3/8-16X3/4 HUS-817000612
...
189
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
137
BUMPER DASH HUS-532407590
...
138
HOLDER.CUP.LT.GREY HUS-532439747
...
376
KIT.HOP.3-HI.UPPER.STRNG.MOUNT HUS-589458401
...
151
BRACKET PIVOT HUS-532407807
...
308
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
217
ROD.PIVOT.HOOD HUS-532409167
...
194
GSPW Nuts HUS-596135701
...
125
CLIP.FUEL.LINE HUS-581684801
...
204
SUBASM.TOP.VENT.HUSQ.LT HUS-532441375
...
236
NUT.CENTERLOCK.5/16- HUS-873930500
...
287
SCREW 1/4X20 HUS-817600406
...
214
CLIP.RETAINER.TINNER. HUS-532199145
...
58
SERVICE KIT DRAWBAR FENDER DRA HUS-531152601
...
14
HOOD.HUSQVARNA.LT.ORANGE HUS-532441267
...
175
CROSSMEMBER HUS-532199472
...
203
VENT SIDE HOOD HUS-532406671
...
201
GSPH HUS-596134901
...
176
SCREW.#10-24X5/8.RN.QU HUS-532400776
...
152
SERVICE KIT SHIELD SHIELD.BROW HUS-531169901
...
184
PLUG.DEMO.625 HUS-587554101
...
191
INSERT.REFLECTIVE.RH. HUS-583358401
...
37
FENDER.TLT.FS.W/CUPHLD.ORANGE HUS-532441266
...
213
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
239
IS ITO HUS-532404883
...
205
SKIRT.SIDE.HUSQVARNA.LT.RT HUS-532441344
...
306
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
377
SCREW 10 X 1/2 ZN PL PHIL PAN HUS-589455301
...
235
Spacers HUS-596564201
...
196
CONSOLE.DECKLIFT.GREY.PKG.KIT HUS-547634701
...
304
SHIELD.LWR.RH.LTGT.NON30.NOTCH HUS-589009002
...
181
BUSHING.MNT.FEND.CRGO. HUS-532403025
...
162
Screws HUS-596134101
...
202
VENT.SIDE.HUSQVARNA.LT.RT HUS-532441342
...
3
LOGO.HUSQ.GT.LT.CROWN.H HUS-532430771
...
130
Screws HUS-596321701
...
228
STUD.W/"D"ANTI-ROTATION HUS-593824001
