Husqvarna TS 138L - 96041043100 (2019-08) Riding Tractor

Model: TS 138L - 96041043100 (2019-08)

Back To Assemblies

Save Part Not Listed?
product name

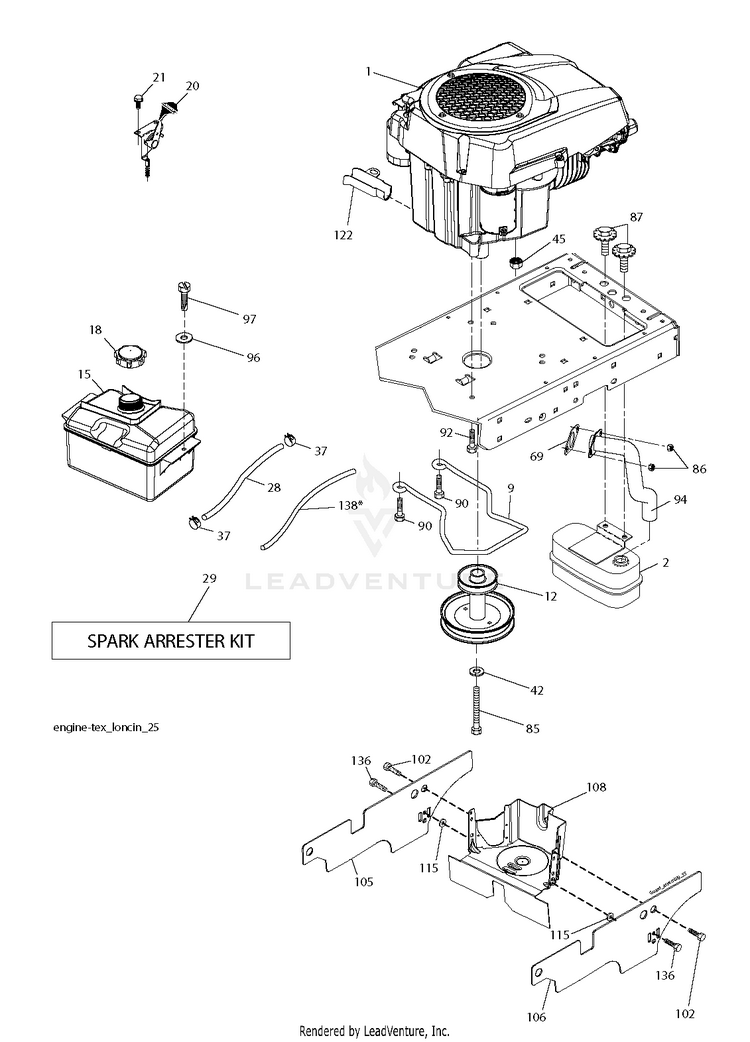

ENGINE

...
...
96
Washers HUS-596135301
...
97
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
79
Screws For 96041043900 HUS-596134202
...
69
GASKET GASKET.EXHAUST.LONCIN 3 HUS-590863501
...
18
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
102
BOLT.HEX.HD.WASHER.5/16-18X.75 For 96041043100 HUS-532428867
...
15
FUEL TANK EPA HUS-597952203
...
138*
NEEDS DESCRIPTION For 96041043900. only quipped with unit using EPA TANK HUS-587044531
...
87
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
105
SHIELD.SIDE.LH.3842"TEX FRN.BK For 96041043100 HUS-501267202
...
20
CONTROL.TH/CK.C.BLACK HUS-532176636
...
92
SCREW 3/8-16X1 HUS-817120616
...
9
Keepers HUS-596501502
...
1
NEEDS DESCRIPTION ENGINE HUSQVARNA MODEL NO. HS452 (COMPLETE IPL AVAILABLE SEPARATELY) HUS-598694001
...
94
TUBE TUBE.EXHAUST.LONCIN 452.T HUS-590864701
...
21
Screws HUS-596321701
...
90
SCREW 3/8-16X1 HUS-817000616
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
106
SHIELD.SIDE.LH.3842"TEX FRN.BK For 96041043100 HUS-501268202
...
85
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
2
MUFFLER.ASM.SINGLE HUS-590645302
...
37
HOSE CLAMP HUS-532123487
...
45
NUT HEXAGON WITH FLANGE, SERRA HUS-593356401
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
12
ENGINE.PULLEY HUS-586478501
...
86
NUT.HEX.FLANGE.TOPLOCK For 96041043100 HUS-532184362
...
136
Screws For 96041043100 HUS-596434001
...
115
RETAINER For 96041043100 HUS-532431761
...
122
EXTENSION DRAIN OIL HUS-532421922
...
42
Washers HUS-596238901
...
15
FUEL.TANK.ASM.NON-EPA Non-EPA HUS-581289901
...
108
COVER ENGINE PULLEY COVER WITH For 96041043100 HUS-587179509
...
1
ENGINE.LONCIN.SPARE/452 For 96041043900. Engine Husqvarna HS452 HUS-593230401
