Husqvarna TS 138 Riding Tractor

Model: TS 138

Back To Assemblies

Save Part Not Listed?
product name

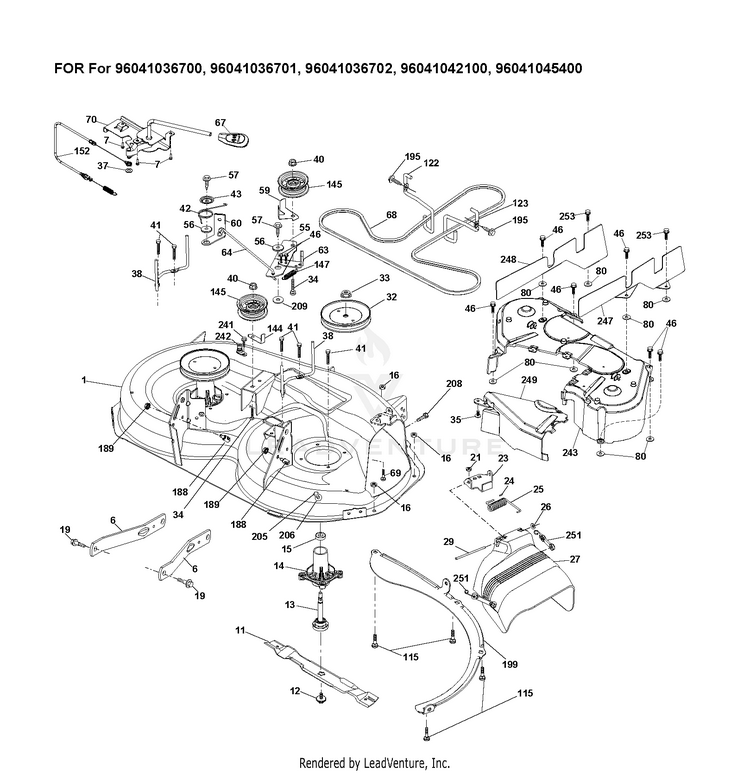

MOWER DECK / CUTTING DECK 4

...
...
25
SPRING.TORSION.DEFLECT HUS-532197026
...
1
SERVICE KIT DECK 38" X428 HUS-547565001
...
6
SERVICE.KIT ARM.SUSPENSION.MOW HUS-529846401
...
145
PULLEY.IDLER.FLAT HUS-532177968
...
195
SCREW, 3/8-16X3/4 HUS-817000612
...
23
BRKT.DEFLECTOR.38"2005+ HUS-532192557
...
242
PORT.WASHOUT HUS-532415598
...
189
GSPW Nuts HUS-596135701
...
147
SPRING RETURN HUS-532401872
...
188
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
29
Rods HUS-595297001
...
248
GUARD.DECK.38IN.LH.X431 HUS-589009502
...
152
CABLE.CLUTCH.MANUAL. HUS-532435111
...
32
SERVICE KIT PULLEY PULLEY.MAND HUS-531170001
...
38
BELT KEEPER.MANDREL.38"COATED HUS-532400140
...
243
COVER.DECK.38"FRENCH.TEX HUS-583298801
...
11
BLADE.2 IN 1.38"DECK.BLACK HUS-581116302
...
69
Bolts HUS-596136401
...
123
SERVICE KIT KEEPER BELT KEEPER HUS-531169701
...
12
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
206
Washers For 96041045400 HUS-596135301
...
80
PALNUT 1/4 HUS-532423062
...
55
SERVICE KIT IDLER.ARM HUS-531169401
...
46
SCREW.1/4-20X5/8 HUS-532137729
...
57
SCREW 3/8-16X1 HUS-817000616
...
59
SERVICE KIT GUARD HUS-531165901
...
19
BOLT.SHOULDER HUS-532196539
...
16
GSPW Nuts For 96041045400 HUS-596135701
...
43
SRPING.TORSION.RETAINE HUS-532197256
...
247
SHIELD.DECK.RH.38"TEX.FREN.010 For 96041036700, 96041036701, 96041036702 HUS-583457301
...
253
TULFLOK.RIVET HUS-583441001
...
34
GSPW Bolts HUS-596136101
...
21
Hardware HUS-596040501
...
249
COVER.CABLE.CLUTCH.38/42"TEX HUS-583298901
...
26
NUT PUSH M HUS-532110452
...
- -
SERVICE KIT DECK 38" X428 HUS-547565001
...
1
DECK SVCX1.38"194251X418 KIT For 96041036700, 96041036701, 96041036702 HUS-583498001
...
70
CLUTCH.ASM.MANUAL.LT.PRED HUS-532401246
...
41
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
40
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
67
HANDLE.CLUTCH.CABLE.LT HUS-532403012
...
37
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
14
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
251
KIT.STRAP.BUNGEE.DEFLECTOR.SVC HUS-583508201
...
144
SERVICE.KIT KEEPER BELT KEEPER HUS-531148901
...
208
SCREW 3/8-16X1/2 HUS-817670608
...
199
SERVICE KIT BAFFLE BAFFLE.VORT HUS-531170401
...
63
BRAKE.ARM.LH.38"TEX.COATED HUS-532400130
...
247
GUARD DECK.38IN.RH.ISO X431 BL HUS-589009402
...
241
SCREW.TT.#10-32X.5.3/8.FLANGE HUS-532152927
...
122
SERVICE KIT BELT KEEPER HUS-531169501
...
27
Shields HUS-597316601
...
209
Washers HUS-596135501
...
33
Nuts HUS-596134801
...
68
V-BELT HUS-532408381
...
35
FASTENER.XMAS.TREE HUS-532133835
...
60
ARM BRAKE MOWER RH 38" HUS-532199471
...
115
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
205
For 96041036700, 96041045400 HUS-817640416
...
64
LINKAGE.BRAKE.ASM.ZINC HUS-532199918
...
7
Screws HUS-596321701
...
42
SPRING.TORSION.BRAKE HUS-532198410
...
15
BEARING.MANDREL.TOP.EXTENDED For 96041036700 HUS-585323901
...
24
CAP-SLEEVE LT HUS-532105304
...
56
SPACER.RETAINER HUS-532199092
...
13
KIT.MANDREL.NONGREASE.TALL HUS-587819701
