Husqvarna TS 138 Riding Tractor

Model: TS 138

Back To Assemblies

Save Part Not Listed?
product name

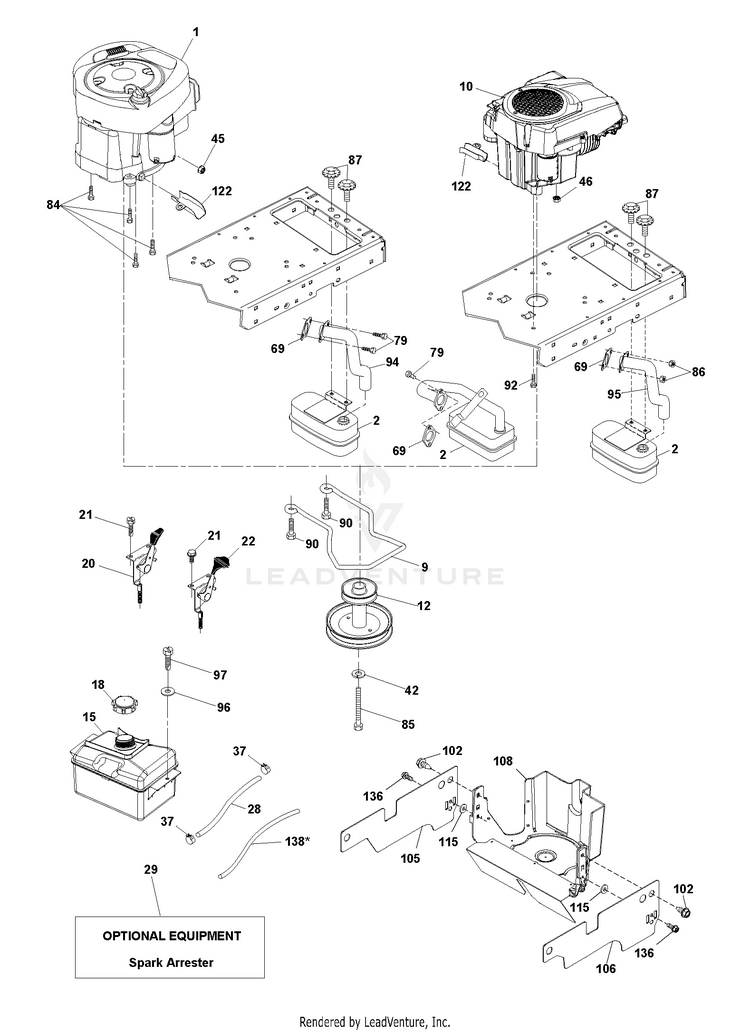

ENGINE

...
...
136
Screws For 96041036700, 96041036701, 96041036702 HUS-596434001
...
115
RETAINER For 96041036700, 96041036701, 96041036702, 96041042100, 96041045400 HUS-532431761
...
122
EXTENSION DRAIN OIL HUS-532421922
...
10
ENGINE.LONCIN.SPARE/452 For 96041042900. HUSQVARNA MODEL NO. HS452 (COMPLETE IPL AVAILABLE SEPARATELY). HUS-593230401
...
105
SHIELD.SIDE.LH.3842"TEX FRN.BK For 96041036700, 96041036701, 96041036702, 96041042100, 96041045400 HUS-501267202
...
69
GASKET.ENG.1.313 ID.TIN PLATED For 96041041700, 96041042100, 96041036700, 96041036701, 96041036702, 96041038300, 96041038301 HUS-532272293
...
9
Keepers For all except 96041038300, 96041038301 HUS-596501502
...
106
SHIELD.SIDE.LH.3842"TEX FRN.BK For 96041036700, 96041036701, 96041036702, 96041042100, 96041045400 HUS-501268202
...
12
ENGINE.PULLEY For 96041036700, 96041036701, 96041036702, 96041041700, 96041042100, 96041042900, 96041045400 HUS-586478501
...
21
Screws HUS-596321701
...
37
HOSE CLAMP HUS-532123487
...
18
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
136
Screws HUS-596434001
...
42
Washers HUS-596238901
...
46
NUT HEXAGON WITH FLANGE, SERRA For 96041042900, 96041045400 HUS-593356401
...
12
PULLEY.ENGINE For 96041038300, 96041038301 HUS-586729001
...
10
NEEDS DESCRIPTION For 96041042900, 96041045400. Europe Only. Engine Husqvarna Model HV 452CC. Engine IPL available separately HUS-598694001
...
2
MUFFLER.LT.BRIGGS.14HP.IC/OHV For 96041041700, 96041036700, 96041038300, 96041038301, 96041042100 HUS-532137352
...
87
BOLT.5/16-18UNCX3/4 W/SEMS.BLK For 96041036701, 96041036702, 96041042100, 96041042900, 96041045400 HUS-532171877
...
1
For 96041042100. Engine B&S Model No. 31R577-0027-B5 (597359601). HUS-000000000
...
96
Washers For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301 HUS-596135301
...
97
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
9
Keepers For 96041036700, 96041036701, 96041036702, 96041041700, 96041042100, 96041042900 HUS-596501502
...
85
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
1
For 96041038300, 96041038301, 96041041700. ENGINE B&S MODEL 31R977-0046-G1 (588640801). HUS-000000000
...
79
Screws For 96041042900 HUS-596134202
...
69
GASKET GASKET.EXHAUST.LONCIN 3 For 96041042900, 96041045400 HUS-590863501
...
28
HOSE.1/4".LOW.PERM.FUEL.LN.22" For 96041042900 HUS-587044822
...
15
FUEL TANK For 96041042900 EPA TANK HUS-597952203
...
69
GASKET.EXHAUST.KOHLER For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301 HUS-532185909
...
21
Screws For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301 HUS-596321701
...
2
MUFFLER.SINGLE.CYL.KOHL/B&S For 96041036701, 96041036702, 96041042100 HUS-532188655
...
84
SCREW.3/8-16 For all EXCEPT 96041042900 HUS-817060620
...
86
NUT.HEX.FLANGE.TOPLOCK For 96041045400 HUS-532184362
...
20
THROTTLE CABLE For all EXCEPT 96041042900, 96041045400 HUS-587242604
...
79
Screws For all EXCEPT 96041042900 HUS-596134201
...
22
CONTROL.TH/CK.C.BLACK For 96041042900, 96041045400 HUS-532176636
...
2
MUFFLER.ASM.SINGLE For 96041042900, 96041045400 HUS-590645302
...
42
Washers For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301 HUS-596238901
...
108
COVER ENGINE PULLEY COVER WITH For 96041036700, 96041036701, 96041036702, 96041042100, 96041045400 HUS-587179509
...
90
SCREW 3/8-16X1 HUS-817000616
...
94
EXHAUST.TUBE.B&S.28/31 For 96041036701, 96041036702, 96041042100 HUS-581880901
...
102
BOLT.HEX.HD.WASHER.5/16-18X.75 For 96041036700, 96041036701, 96041036702, 96041042100, 96041045400 HUS-532428867
...
28
HOSE 1/4" LOW PERMEATION FUEL All except 96041042900 HUS-587044820
...
92
SCREW 3/8-16X1 For 96041042900, 96041045400 HUS-817120616
...
138
NEEDS DESCRIPTION Only equipped with the unit using EPA tank HUS-587044531
...
45
Hardware For all EXCEPT 96041042900, 96041045400 HUS-596133601
...
96
Washers HUS-596135301
...
95
TUBE TUBE.EXHAUST.LONCIN 452.T For 96041042900, 96041045400 HUS-590864701
...
15
FUEL.TANK.ASM.NON-EPA NON-EPA TANK HUS-581289901
...
20
THROTTLE CABLE For all EXCEPT 96041042900, 96041045400 HUS-587242604
...
9
KEEPER.BELT.ENG.3.25"2BOLT.PNT For 96041038300, 96041038301 HUS-582540302
...
1
For 96041036700, 96041036701, 96041036702. ENGINE B&S MODEL 31R577-0027-B1 (587333501). HUS-000000000
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
28
HOSE 1/4" LOW PERMEATION FUEL For all EXCEPT 96041042900 HUS-587044820
...
45
NUT HEX_LRG FLG_1_4-20_LOCK For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301 HUS-586668901
