Husqvarna TS 138 Riding Tractor

Model: TS 138

Back To Assemblies

Save Part Not Listed?
product name

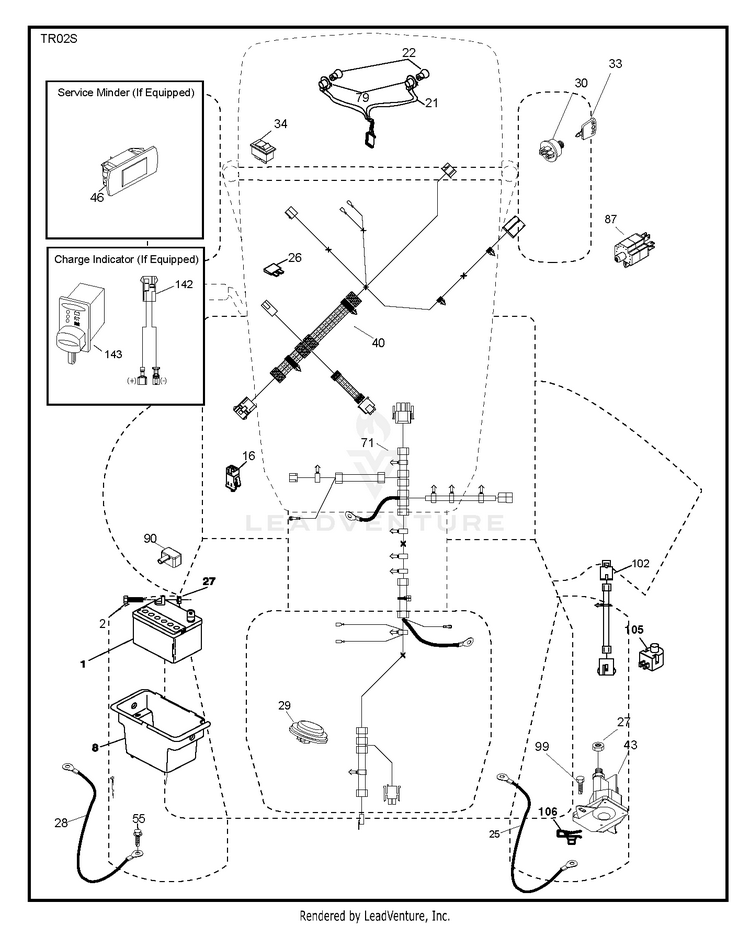

ELECTRICAL

...
...
102
HARNESS.PIGTAIL.VARIATOR.SD For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301 HUS-581023401
...
142
CTEK CHARGE PORT W/HARNESS For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301 HUS-583593501
...
25
CABLE.BATT.RED.8GA.17 HUS-581498001
...
90
COVER.TERMINAL.BATTERY HUS-532435395
...
46
GUAGE.SRVCMNDR.HRMTR. For all except 96041036700, 96041036701, 96041036702. HUS-594919101
...
43
Solenoids For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301 HUS-582042802
...
46
GUAGE.SRVCMNDR.HRMTR. For 96041038300, 96041038301 HUS-594919101
...
30
SWITCH.IGN.DELTA.W.LGH.ROS HUS-532193350
...
8
BOX.BATTERY.MNT.REAR.L HUS-532193228
...
71
HARNESS.CHASSIS.RRBATT.RDYSTRT HUS-501133701
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
26
FUSE 20AMP HUS-532175158
...
27
Hardware HUS-596133601
...
143
CTEK CHARGE PORT W/HARNESS For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301 HUS-583593501
...
34
SWITCH LT HUS-532110712
...
99
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
106
1/4-20 U NUT HUS-532174814
...
33
KEY.CHAIN.BLISTER.PACK.GEN.INT HUS-532411935
...
21
HARNESS.LIGHT W/4152J BULBS HUS-532400252
...
40
HARNESS.DASH.RRBATT.CC.CHG For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301 HUS-585555201
...
43
Solenoids HUS-582042802
...
105
REVERSE SWITCH HUS-532407568
...
2
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
87
SWITCH.INTRLCK.CLUTCH. HUS-532197802
...
40
HARNESS.TEX.DASH.MAN.REAR BATT For 96041045400, 96041041700, 96041042100, 96041042900 HUS-581023101
...
29
SWITCH.SEAT.DELTA.OPC. HUS-532401545
...
55
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
102
HARNESS PIGTAIL PCH TEX ROS For 96041045400, 96041041700, 96041042100, 96041042900 HUS-532404454
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
28
CABLE.GROUND.REAR.BATTERY.8GA HUS-583390701
...
79
BULB HOLDER ASM. HUS-532175242
...
27
NUT HEX_LRG FLG_1_4-20_LOCK For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301 HUS-586668901
...
22
LIGHTBULB HUS-532004152
