Husqvarna TS 138 Riding Tractor

Model: TS 138

Back To Assemblies

Save Part Not Listed?
product name

STEERING

...
...
28
SCREW, 3/8-16X3/4 HUS-817000612
...
66
BOLT HEX FGHD 7/16-14 X 3 SERR HUS-871020748
...
60
NUT.FLANGE.LOCK.5/8-11 HUS-583612801
...
35
GEAR.SECTOR.PLATE.DDL. HUS-532194732
...
21
KIT.SRVC.STEERINGSHAFT.ADAPTER HUS-587738905
...
5
SPINDLE.WLDMT.RH.15INTIRE.X431 HUS-538691201
...
59
WASHER.THURST.SECTOR.S HUS-532194748
...
4
SPINDLE.WELDED.LH.15"TEX.X431 HUS-596873601
...
26
Steering For 96041042100, 96041042900, 96041045400 HUS-594949101
...
58
BOLT.SHOULDER.SECTOR.P HUS-532194747
...
62
Links For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301, 96041041700 HUS-597047902
...
2
SERVICE KIT AXLE HALF ASM HUS-531171101
...
6
WASHER THRUST HUS-532006266
...
70
BRACKET FRONT DECK SUSPENSION HUS-585338802
...
20
STEERING.BOOT.HUSQ.LT HUS-532441425
...
71
SHAFT.EXTEN.STRG.SPLINE HUS-532190752
...
45
Washers For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301 HUS-596040001
...
68
NUT.LOCK.FLANGE.7/16 HUS-873900700
...
15
NUT CROWNLOCK 3/8-24 HUS-873540600
...
62
Links HUS-597047902
...
14
Washers HUS-596238701
...
57
BRACKET.UPSTOP.TEX HUS-532407465
...
7
WASHER HUS-532121748
...
72
Bolts For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301 HUS-596039701
...
61
Links For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301, 96041041700 HUS-597047802
...
69
WASHER.1.5X.505X.118 HUS-532199162
...
63
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
74
BEARING.STEERING.COLUMN HUS-532003366
...
33
WASHER SPRING LOCK WASHER WITH For 96041042100, 96041042900, 96041045400 HUS-596238801
...
8
RING CLIP HUS-812000029
...
45
Washers HUS-596040001
...
27
Washers HUS-596933401
...
26
INSERT.CAP.WHL.STRG.HUSQ.PREM For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301, 96041041700 HUS-532439743
...
53
WASHER.HARDENED HUS-532188967
...
61
Links HUS-597047802
...
33
WASHER SPRING LOCK WASHER WITH For 96041036700, 96041038300, 96041036701 HUS-596238801
...
22
KIT.SRVC.STEERINGSHAFT.LWRBSHG HUS-587738901
...
76
SCREW HEAD SOCKET LRVB HUS-580683601
...
122
CAP.GEAR.SECTOR.TEX HUS-583576601
...
33
WASHER SPRING LOCK WASHER WITH For 96041036702, 96041038301, 96041041700 HUS-596238801
...
27
Washers For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301 HUS-596933401
...
67
BUSHING, AXLE HUS-529496302
...
19
SERVICE KIT PLATE PLATE.STEER. HUS-531169101
...
13
WASHER HUS-532121749
...
75
KIT.SRVC.STEERINGSHAFT.PINION HUS-587738906
...
64
RETAINER.CLIP.SPRING.S HUS-532199849
...
1
WHEEL.STEERING.HUSQ.PREM.HRDRM For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301, 96041041700 HUS-532439997
...
16
KIT.SRVC.STEERINGSHAFT.3HISHFT HUS-587738903
...
1
Service Kit For 96041042100, 96041042900 HUS-597866101
...
9
CAP.SPINDLE.BLACK HUS-532121232
...
72
Bolts HUS-596039701

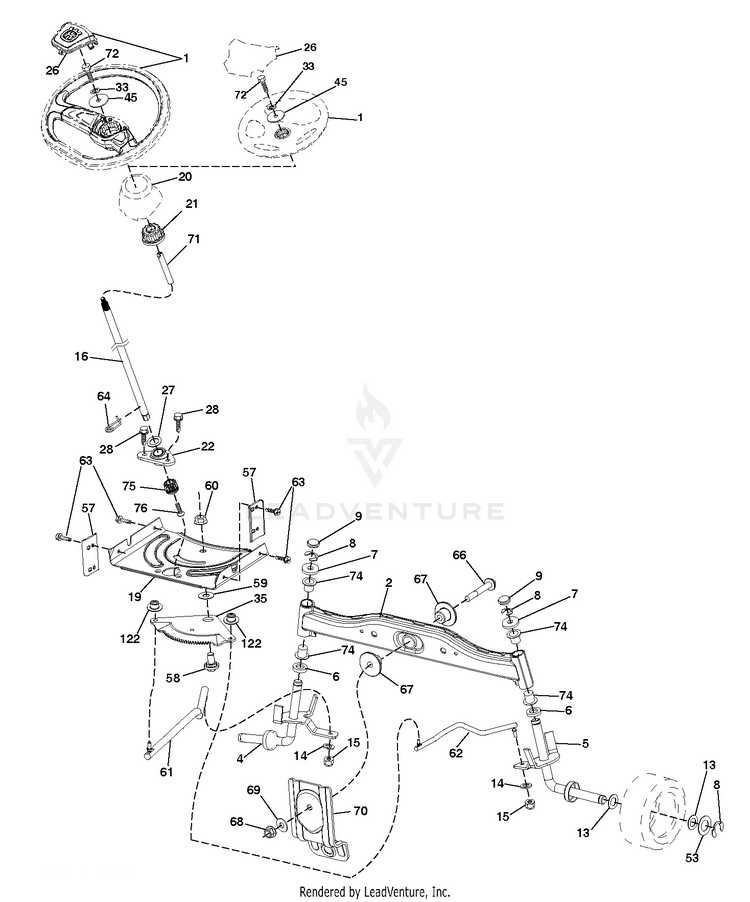

Schematic Image Zoomed
