Husqvarna TS 138 - 96041038301 (2017-04) Tractors/Ride Mower

Model: TS 138 - 96041038301 (2017-04)

Back To Assemblies

Save Part Not Listed?
product name

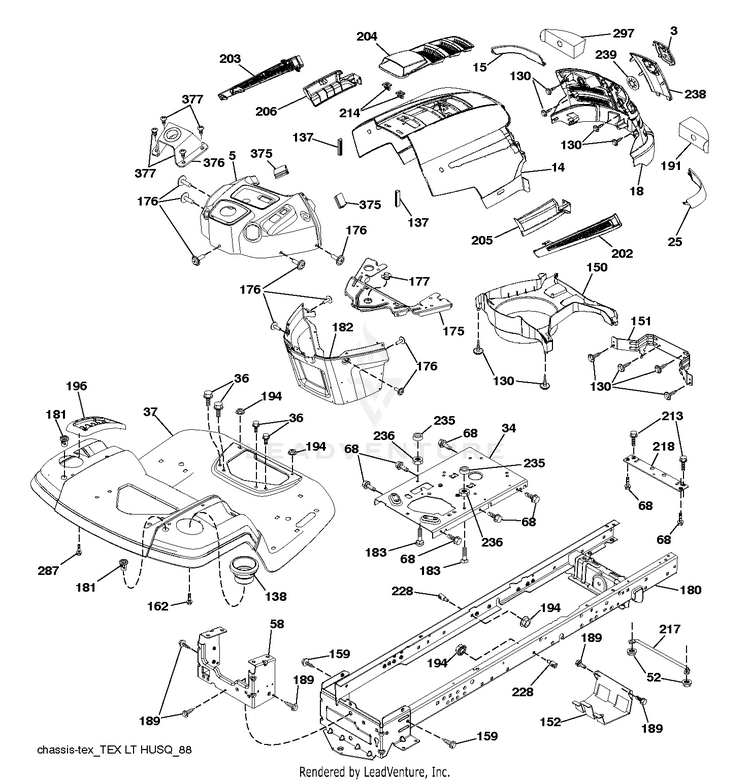

CHASSIS & ENCLOSURES 2

...
...
68
Screws HUS-596030701
...
214
CLIP.RETAINER.TINNER. HUS-532199145
...
235
Spacers HUS-596564201
...
287
SCREW 1/4X20 HUS-817600406
...
3
LOGO.HUSQ.GT.LT.CROWN.H HUS-532430771
...
159
SCREW, 3/8-16X3/4 HUS-817000612
...
175
CROSSMEMBER HUS-532199472
...
194
GSPW Nuts HUS-596135701
...
25
LENS.HUSQVARNA LT.RH HUS-532406663
...
137
BUMPER DASH HUS-532407590
...
183
Screws HUS-595305701
...
206
SKIRT.SIDE.HUSQVARNA.LT.LEFT HUS-532441345
...
196
CONSOLE.DECKLIFT.GREY.PKG.KIT HUS-547634701
...
152
SERVICE KIT SHIELD SHIELD.BROW HUS-531169901
...
213
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
297
INSERT REFLECTIVE HUS-532406665
...
18
GRILLE.SVC.HUSQVARNA.L HUS-584382301
...
204
SUBASM.TOP.VENT.HUSQ.LT HUS-532441375
...
181
BUSHING.MNT.FEND.CRGO. HUS-532403025
...
217
ROD.PIVOT.HOOD HUS-532409167
...
5
DASH.UP.HU.LT.CBL.CLTCH.CHG.PT HUS-585529806
...
151
BRACKET PIVOT HUS-532407807
...
377
SCREW 10 X 1/2 ZN PL PHIL PAN HUS-589455301
...
52
Hardware HUS-596040501
...
236
NUT.CENTERLOCK.5/16- HUS-873930500
...
239
IS ITO HUS-532404883
...
58
SERVICE KIT DRAWBAR FENDER DRA HUS-531152601
...
130
Screws HUS-596321701
...
14
HOOD.HUSQVARNA.LT.ORANGE HUS-532441267
...
238
TRIM.HUSQ LT.668 HUS-532407881
...
176
SCREW.#10-24X5/8.RN.QU HUS-532400776
...
189
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
375
BUMPER CLIP-ON. DASH 1" HUS-586908201
...
138
HOLDER.CUP.LT.GREY HUS-532439747
...
37
SERVICE KIT FENDER.TLT.CPH.615 HUS-597652401
...
376
KIT.HOP.3-HI.UPPER.STRNG.MOUNT HUS-589458401
...
191
INSERT.REFLECTIVE.RH. HUS-583358401
...
218
X-PIECE.HOOD.STOP.NON/ HUS-532196395
...
34
PLATE.ENGINE.WELDED.CHASSIS HUS-580910801
...
150
AIR DUCT HUS-532406662
...
15
LENS.HUSQVARNA LT.LH HUS-532406664
...
180
CHASS.WLDMNT.TL.12GA/2P.48/54 HUS-532415063
...
182
DASH.LOWER.PREDATOR LT HUS-532407176
...
203
VENT SIDE HOOD HUS-532406671
...
205
SKIRT.SIDE.HUSQVARNA.LT.RT HUS-532441344
...
202
VENT.SIDE.HUSQVARNA.LT.RT HUS-532441342
...
162
Screws HUS-596134101
...
177
BUSHING STEERING HUS-532195228
...
36
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
228
STUD.W/"D"ANTI-ROTATION HUS-593824001
