Husqvarna TS 138 - 96041038301 (2017-04) Tractors/Ride Mower

Model: TS 138 - 96041038301 (2017-04)

Back To Assemblies

Save Part Not Listed?
product name

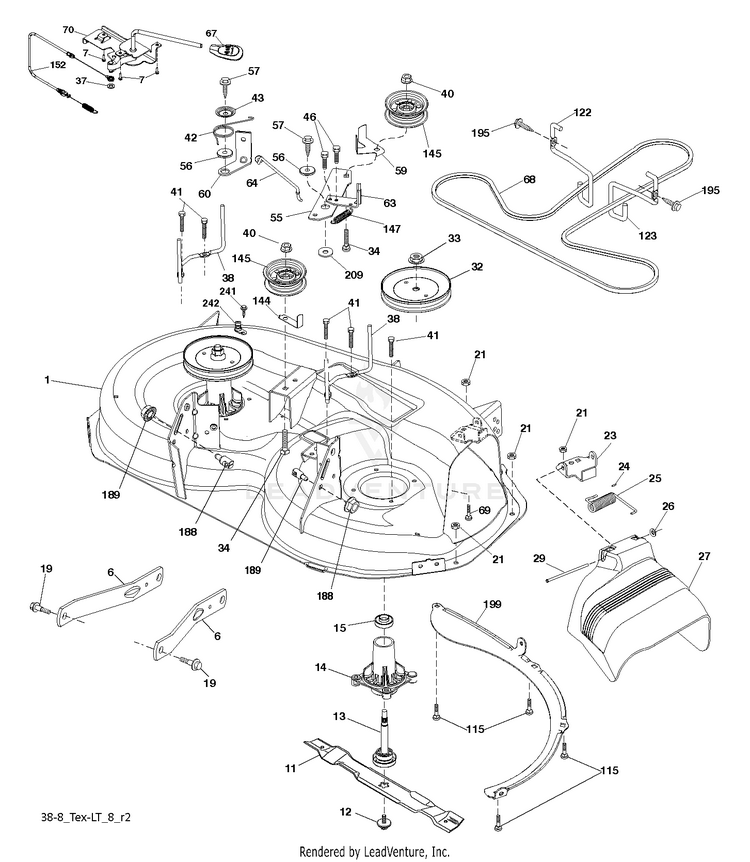

MOWER DECK / CUTTING DECK 2

...
...
55
SERVICE KIT IDLER.ARM HUS-531169401
...
41
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
123
SERVICE KIT KEEPER BELT KEEPER HUS-531169701
...
38
BELT KEEPER.MANDREL.38"COATED HUS-532400140
...
19
BOLT.SHOULDER HUS-532196539
...
25
SPRING.TORSION.DEFLECT HUS-532197026
...
14
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
68
V-BELT HUS-532408381
...
115
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
209
Washers HUS-596135501
...
27
SHIELD.DEFLECTOR.MOWER.38" HUS-532192572
...
199
SERVICE KIT BAFFLE BAFFLE.VORT HUS-531170401
...
64
LINKAGE.BRAKE.ASM.ZINC HUS-532199918
...
32
SERVICE KIT PULLEY PULLEY.MAND HUS-531170001
...
29
Rods HUS-595297001
...
7
Screws HUS-596321701
...
144
SERVICE.KIT KEEPER BELT KEEPER HUS-531148901
...
152
CABLE.CLUTCH.MANUAL. HUS-532435111
...
56
SPACER.RETAINER HUS-532199092
...
- -
SERVICE KIT DECK 38" X428 HUS-547565001
...
15
BEARING.MANDREL.TOP.EXTENDED HUS-585323901
...
189
GSPW Nuts HUS-596135701
...
188
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
46
SCREW.1/4-20X5/8 HUS-532137729
...
12
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
6
SERVICE.KIT ARM.SUSPENSION.MOW HUS-529846401
...
145
PULLEY.IDLER.FLAT HUS-532177968
...
33
Nuts HUS-596134801
...
23
BRKT.DEFLECTOR.38"2005+ HUS-532192557
...
26
NUT PUSH M HUS-532110452
...
241
SCREW.TT.#10-32X.5.3/8.FLANGE HUS-532152927
...
21
Hardware HUS-596040501
...
122
SERVICE KIT BELT KEEPER HUS-531169501
...
63
BRAKE.ARM.LH.38"TEX.COATED HUS-532400130
...
40
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
43
SRPING.TORSION.RETAINE HUS-532197256
...
147
SPRING RETURN HUS-532401872
...
69
Bolts HUS-596136401
...
60
ARM BRAKE MOWER RH 38" HUS-532199471
...
11
BLADE.2 IN 1.38"DECK.BLACK HUS-581116302
...
37
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
242
PORT.WASHOUT HUS-532415598
...
- -
KIT.MANDREL.NONGREASE.TALL MANDREL ASSEMBLY (Includes Housing (Key # 14), Shaft Assembly (Key # 13) and Bearing Only (Key # 15) - Pulley/Nut/Washer and Blade Bolt/Wasdhers Not Included) HUS-587819701
...
195
SCREW, 3/8-16X3/4 HUS-817000612
...
57
SCREW 3/8-16X1 HUS-817000616
...
24
CAP-SLEEVE LT HUS-532105304
...
42
SPRING.TORSION.BRAKE HUS-532198410
...
67
HANDLE.CLUTCH.CABLE.LT HUS-532403012
...
34
GSPW Bolts HUS-596136101
...
13
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
1
DECK SVCX1.38"194251X418 KIT HUS-583498001
...
59
SERVICE KIT GUARD HUS-531165901
...
70
CLUTCH.ASM.MANUAL.LT.PRED HUS-532401246
