product name

Husqvarna TR800D (1996) Tiller

Model: TR800D (1996)

Back To Assemblies

Save Part Not Listed?

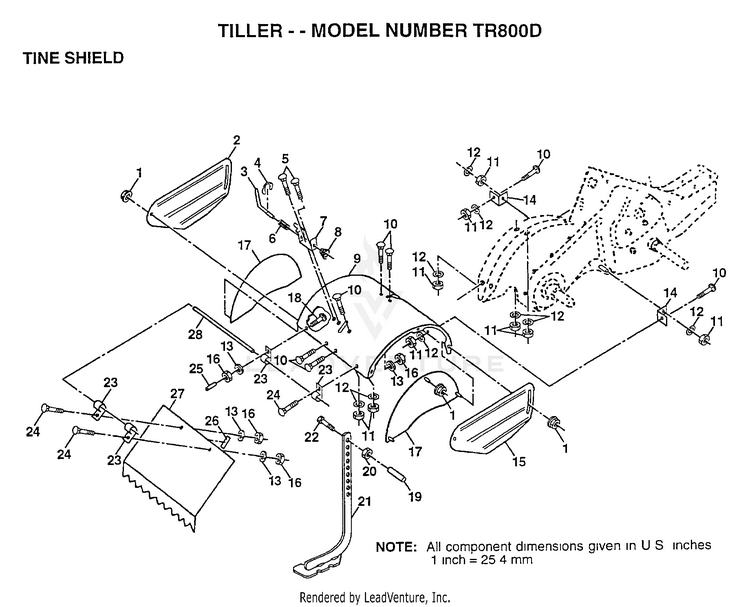

product name

TINE SHIELD

...
...
1
NUT HUS-98000129
...
2
SHLD.PNT.LH. HUS-108711X550
...
3
STAKE PIN TI HUS-8393J
...
4
KLIP RING TI HUS-12000036
...
5
BOLT HUS-72140508
...
6
SPRING TI HUS-8394J
...
7
LATCH BRACKET TI HUS-8392J
...
8
SPRING CRT HUS-109230X
...
9
SHIELD.PNT.TINE. HUS-104178X550
...
10
BOLT HUS-72140506
...
11
NUT.HEX.5/16-18 HUS-73220500
...
12
LOCKWASHER HUS-10040500
...
13
LOCKWASHER HUS-10040400
...
14
TINE SHLD BRKT TI HUS-8386J
...
15
SHIELD.PNT.RH HUS-108710X550
...
16
SUB= 50675 HUS-73220400
...
17
SHLD.ASM.PNT HUS-104084X550
...
18
BOLT HUS-72040410
...
19
GRIP CRT HUS-102701X
...
20
NUT.HEX.3/8-16UNC HUS-73220600
...
21
STAKE.ASM.DEPTH HUS-138420
...
22
BOLT HUS-74930632
...
23
HINGE CRT HUS-4440J
...
24
BOLT.1/4-20X1/2 HUS-72140408
...
25
VINYL CAP TI HUS-6712 J
...
26
PAD IDLER TI HUS-109227X
...
27
SHIELD.PNT.LEVEL. HUS-102713X550
...
28
PIN.HINGE HUS-138609
