Husqvarna TP1946A (1999 & Before) Tractor

Model: TP1946A (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

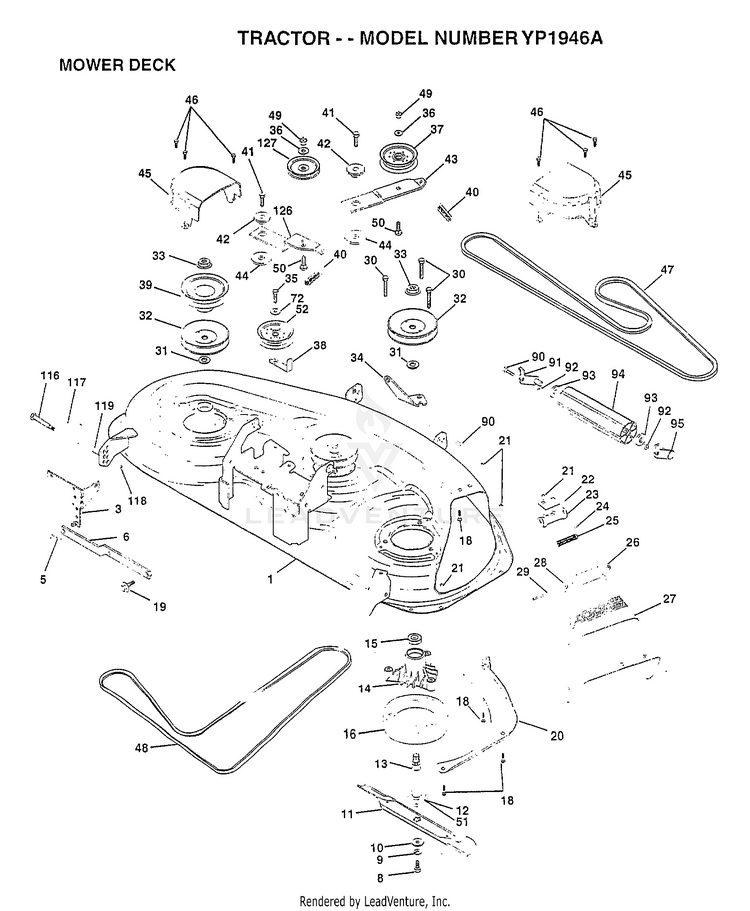

MOWER DECK

...
...
1
"MOWER ASM 46""" HUS-156948
...
3
BRKT.ASM.SW.44/50 HUS-138457
...
5
SUB= 85902 HUS-4939M
...
6
SUB= 130833 HUS-130832
...
8
BLADE BOLT HUS-850857
...
9
SUB= 10040600 HUS-10030600
...
10
WASHER.HARD.BLADE HUS-140296
...
11
SUB= 159705 HUS-157353
...
12
BEARING.BALL HUS-129895
...
13
SHAFT.ASM.W/BRNG HUS-137553
...
14
HOUSING.MAND.44.V HUS-137152
...
15
BEARING HUS-110485X
...
16
STRIPPER RND MWR HUS-140329
...
18
BOLT HUS-72140505
...
19
BOLT SHD 5/16-18 HUS-132827
...
20
BAFFFLE.VORTEX.46 HUS-145055
...
21
SUB= 73690500 HUS-73680500
...
22
STIFFENER BRKT HUS-134753
...
23
DEFLECTOR BRKT HUS-131267
...
24
CAP-SLEEVE LT HUS-105304X
...
25
SPRING TORSION HUS-123713X
...
26
NUT PUSH M HUS-110452X
...
27
SHIELD DEFLECTOR HUS-157788
...
28
WASHER HUS-19111016
...
29
HINGE ROD HUS-131491
...
30
SUB= 157722 HUS-138776
...
31
WASHER HUS-129963
...
32
PULLEY.MAND.36/46 HUS-153531
...
33
SUB= 139729 HUS-137266
...
34
ANCHOR.SPRING.46 HUS-144945
...
35
SCREW LT HUS-17490628
...
36
WASHER HUS-19131316
...
37
FLAT IDLER PULLEY HUS-131494
...
38
"KEEPER BELT,IDLER" HUS-156086
...
39
PULLEY.DRV.DCK.46 HUS-144917
...
40
"SPRING.SEC.44""VEN" HUS-137273
...
41
SCREW HUS-17490620
...
42
SPACER RETAINER HUS-122052X
...
43
ARM.IDLER.DECK.46 HUS-144949
...
44
HARDENED WASHER HUS-133943
...
45
COVER.MANDREL.46 HUS-145059
...
46
SCREW.1/4-20X5/8 HUS-137729
...
47
BELT-V.SEC.46.KEL HUS-144959
...
48
BELT V PRIM 50 HUS-139573
...
49
SUB= 73690600 HUS-73680600
...
50
BOLT.3/8-16X1.50 HUS-72110612
...
51
WASHER.FELT. HUS-153390
...
52
"PULLEY IDLER,FLAT" HUS-156493
...
72
WASHER HYT HUS-19131616
...
90
BOLT HUS-74760616
...
91
SUB= 532132274 HUS-132274
...
92
NUT HUS-73800600
...
93
WASHER HUS-19171416
...
94
SUB= 532132264 HUS-132264
...
95
SUB= 532132273 HUS-132273
...
116
BOLT.SHOULDER HUS-137644
...
117
WHEEL GAGE DONUT HUS-133957
...
118
LOCKNUT HUS-73930600
...
119
WASHER HUS-19121414
...
126
ARM.IDLER.PRIM.46 HUS-144948
...
127
PULLEY.IDLER.4.25 HUS-146763
...
xx
MANDREL SERV ASM HUS-143651
...
xx
MOWER SERV DECK46 HUS-157251
