Husqvarna TF1036AR (1999 & Before) Tractor

Model: TF1036AR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

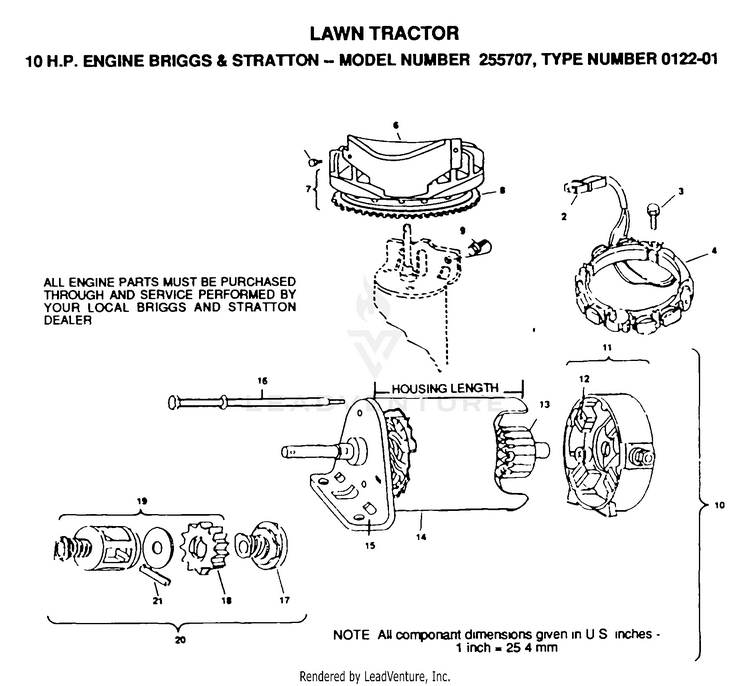

ENGINE/BRIGGS AND STRATTON

...
...
2
DIODE & CONNECTOR ASSY HUS-393456
...
3
SCREW, SEMS HUS-93621
...
4
STATOR, ALTERNATOR, DUAL CIRCUIT HUS-393474
...
5
SCREW, SEMS HUS-93984
...
6
COVER, STARTER HUS-395405
...
7
FLYWHEEL & RING ASSY HUS-391988
...
8
GEAR, RING HUS-392134
...
9
SCREW HUS-93523
...
10
MOTER AND DRIVE ASSY. HUS-394805
...
11
END CAP ASS'Y. COMMUTATOR HUS-395537
...
12
BRUSH ASSEMBLY HUS-395538
...
13
ARRMATURE ASSEMBLY HUS-390837
...
14
HOUSING ASSEMBLY HUS-393825
...
15
CAP, DRIVE HUS-394856
...
16
BOLT HUS-94003
...
17
CLUTCH ASSEMBLY HUS-398003
...
18
GEAR, STARTER HUS-280104
...
19
RETAINER & PIN HUS-393254
...
20
DRIVE ASSY HUS-396865
...
21
ROLL PIN HUS-94192
