Husqvarna TC 38 - 96051013900 (2015-07) Tractors/Ride Mower

Model: TC 38 - 96051013900 (2015-07)

Back To Assemblies

Save Part Not Listed?
product name

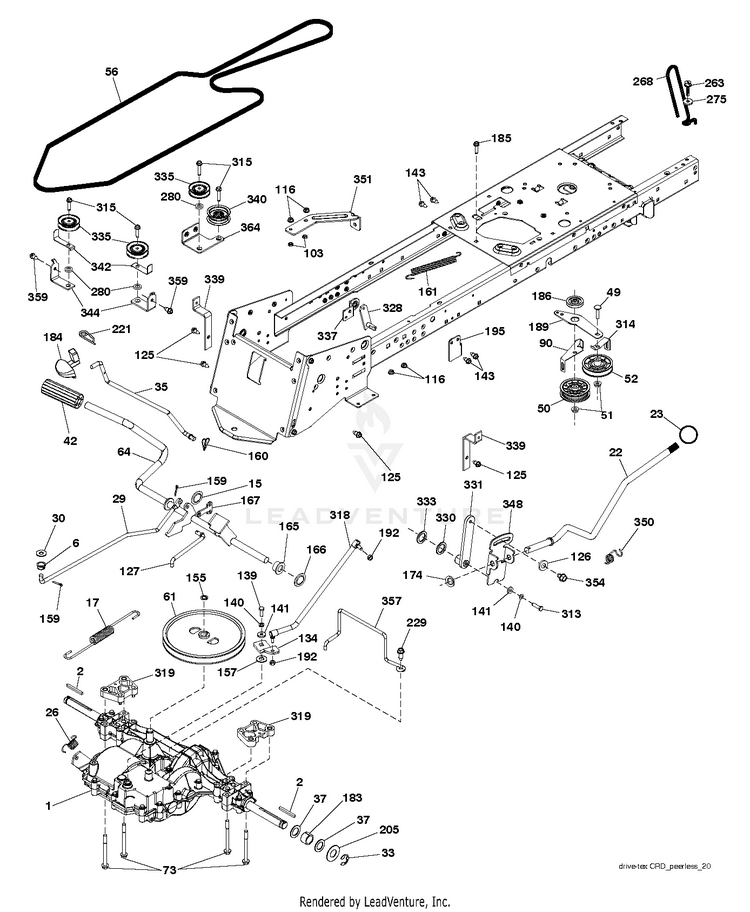

DRIVE

...
...
73
BOLT.FLANGED HUS-583613201
...
29
ROD.BRAKE.GEAR.CRD.TEX HUS-532437016
...
139
Bolts HUS-596136601
...
143
Screws HUS-596030701
...
314
KEEPER.BELT HUS-583575801
...
103
Nuts HUS-596436301
...
52
IDLER.V-GROOVE.910.OFFSET HUS-532194326
...
268
GUARD.MUFFLER HUS-583122001
...
125
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
275
Washers HUS-596140201
...
183
SPACER AXLE HUS-532137057
...
166
NUT.PUSH.625 HUS-532429164
...
6
BUSHING.SNAP.NYL.BLK. HUS-532124028
...
192
NUT LOCK CENTER 1/4 -28 FNTHD HUS-532150360
...
56
V-BELT.TEX.CRD.GEAR HUS-583508901
...
42
PAD, FOOT PEDAL HUS-510089501
...
61
PULLEY TRANSAXLE.7" HUS-584450701
...
134
ARM SHIFT HUS-532145090
...
195
BRACKET.ROD.BRAKE HUS-580456901
...
159
Pins HUS-596029501
...
64
SHAFT.ASM.PEDAL.BRAKE. HUS-532196200
...
30
Washers HUS-596140201
...
357
KEEPER-BELT.TRANS.TEX-CRD.GEAR HUS-583555901
...
318
Links HUS-593974401
...
174
NUT.PUSH.500.2006 HUS-532197289
...
335
PULLEY.V-IDLER. HUS-532199534
...
50
IDLER.FLAT.910.OFFSET HUS-532194327
...
140
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
331
HUB.SHIFT.FENDER.TEX.CRD HUS-583570101
...
351
BRACKET.97.CRD.DECK.SWAY HUS-583515101
...
22
ROD.SHIFT.FENDER.K46.CRD.TEX HUS-583568701
...
348
ARM.CLEVIS.ROD.SHIFT.TEX.CRD HUS-583570201
...
141
Washers HUS-596039801
...
160
GSPW Retainers HUS-596029401
...
354
Bolts HUS-594094101
...
127
LINK.CLUTCH.GROUND DRIVE.LONG HUS-582217001
...
330
PULLEY.V-IDLER. HUS-532199534
...
37
WASHER.HARDENED HUS-532188967
...
359
Screws HUS-596564002
...
26
SPRING,BRAKE RETURN HUS-532146682
...
328
SHAFT.SUBASM.SHIFT.FRONT.CRD HUS-583524801
...
51
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
184
HANDLE.PARKNG BRK.PRED.LT.428 HUS-532411484
...
126
Washers HUS-596218801
...
2
SQUARE KEY HUS-532123583
...
280
Washers HUS-596039901
...
339
STRAP.TORQUE.K46.CRD.TEX HUS-583512601
...
186
SPACER.RETAINER HUS-532194321
...
344
BRACKET.IDLER.CRD.TEX HUS-583506401
...
319
SPACER.TRANSAXLE.TEX.CRD HUS-583512001
...
313
Screws HUS-596230901
...
1
TRANSAXLE PEERLESS 206-578 (436815) HUS-000000000
...
221
RETAINER.SPRING.CLIP.H HUS-532403187
...
155
RETAINING RING LT HUS-812000028
...
90
KEEPER.BELT.CLUTCHING.TEX.CRD HUS-583570001
...
185
BOLT HUS-872110622
...
167
SERVICE KIT LATCH LATCH.BRAKE. HUS-531152901
...
161
SPRING, RETURN LT HUS-532105709
...
157
WASH-SHFT PLT LT HUS-532105701
...
263
SCREW, 3/8-16X3/4 HUS-817000612
...
205
WASHER HUS-532121748
...
116
GSPW Nuts HUS-596135701
...
340
IDLER.FLAT.2.25.INCH HUS-583512101
...
23
KNOB.DUCKHEAD.1/2 HUS-532121274
...
17
SPRING.BRAKE.GEAR.CRD.TEX HUS-583552401
...
49
Bolts HUS-596136201
...
165
BUSHING.SHAFT.BRAKE.HAND HUS-532196212
...
364
BRACKET.IDLER.CRD.TEX HUS-583567401
...
333
WASHER.WAVE.SPRING HUS-532170868
...
189
BELLCRANK.GROUND.DRIVE.CRD.TEX HUS-583492701
...
337
BRACKET.SUPT.SHIFT.CRD.TEX HUS-583507801
...
33
E-RING LT HUS-812000001
...
342
SERVICE KIT KEEPER.BELT.2.5".V HUS-529846301
...
315
BOLT.5/16-18X1.25 HUS-817580520
...
35
Rods HUS-596874801
...
229
Screws HUS-593337601
...
15
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
350
SPRING.TORSION.SHIFT.TXCRDI&II HUS-583576901
