Husqvarna TC 342 - 96051016400 (2017-02) Tractors/Ride Mower

Model: TC 342 - 96051016400 (2017-02)

Back To Assemblies

Save Part Not Listed?
product name

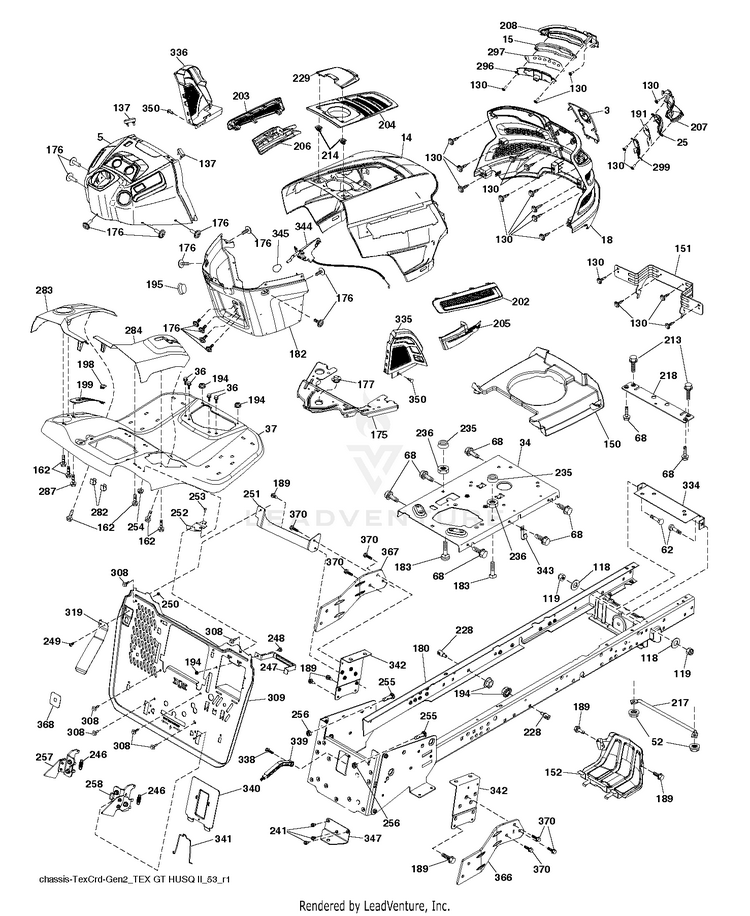

CHASSIS / FRAME

...
...
342
SUPPORT.PNT.FENDER.CRD.TEX HUS-582826802
...
235
Spacers HUS-596564201
...
--
TRACTOR BRUSH GUARD LS MODELS HUS-505568813
...
350
CLIP.X-MAS.TREE HUS-532445143
...
152
SHIELD.BROWNING.PNT.GT.V2 HUS-532439870
...
208
BEZEL GT2 LED LH W/ LOWER ATT LH HUS-585420102
...
25
LENS.RH RH HUS-585420201
...
341
LATCH.BATTERY.DOOR.TCRD HUS-582060801
...
5
DASH.UPR.GT2.DUAL.RD.PT HUS-590748817
...
347
HITCH.TOW.TEX.CRD.GEN.2 HUS-583566701
...
130
Screws HUS-596321701
...
213
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
246
SPRING.LTCH.BGR.GEN2.5.CRD.TEX HUS-591449001
...
202
VENT.SIDE.RH.GT.HUSQ.II. RH HUS-532439728
...
309
BACKPLATE.TEXCRD2.5.BAGGER.479 HUS-582552502
...
119
Nuts HUS-596322601
...
256
Nuts HUS-596219001
...
335
COVER.LOWER.DASH.RH.BLACK HUS-532448204
...
205
SIDE.TRIM.RH.GT.HUSQ.II RH HUS-532439730
...
241
Screws HUS-593337601
...
199
PLATE.DECKLIFT.SRD HUS-583371401
...
258
LATCH.ASM.BGR.RH.GEN2.5.STMPD HUS-589746702
...
255
Bolts HUS-589392203
...
367
BRACKET.LH.FRONT.BAGGER.BLACK HUS-581314502
...
345
KNOB - SHIFT HUS-539132624
...
118
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
206
SIDE.TRIM.LH.GT.HUSQ.II.GRAY LH HUS-532439729
...
336
COVER-LH.LOWER.DASH.GT2.BLACK HUS-532445309
...
283
CONSOLE.DECKLIFT.CRDII.498 HUS-532447212
...
18
Grilles HUS-597247201
...
68
Screws HUS-596030701
...
217
ROD.PIVOT.HOOD HUS-532409167
...
339
SUBASM.BAGGER.FULL.LVER.(2 2) HUS-583510301
...
189
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
191
INSERT INFLECT.RH HUS-586182801
...
368
FULL.LEVER.BAGGER.TEX.CRD HUS-581424801
...
194
GSPW Nuts HUS-596135701
...
182
DSH.LWR.COM.IN-HSE.EZ.MLCH.SLT HUS-583536501
...
34
Engines HUS-593944402
...
203
VENT.SIDE.LH.GT.HUSQ.II.498 LH HUS-532439727
...
180
CHASSIS WELDMENT.CRD2.BKP_BLTS HUS-593898801
...
343
CLIP HUS-582671501
...
257
LATCH.ASM.BGR.LH.GEN2.5.STMPD HUS-589746602
...
175
PLATE.PNT.CROSSMEMBER.HUSQ/PRE HUS-590607702
...
62
Bolts HUS-596728201
...
195
PLUG.HOLE.DASH.LOWER.12V.BLK HUS-532404137
...
204
VENT.TOP.EXTERNAL.FILL.ASY.GT2 HUS-587485901
...
319
LEVER.PRSNC.BGR.TEX.CRD.GEN2.1 HUS-581313907
...
207
BEZEL GT2 LED RH W/ LOWER.ATT RH HUS-585420002
...
253
BOLT CUP HEAD SQUARE NECK BOLT HUS-596238401
...
37
FENDER.TEX.SRD.CRD.BASE HUS-532441419
...
251
BRACKET.PNT.LH.SUPP.BKPLT.EDIP HUS-589318904
...
282
CLIP.RETAINER.CONSOLE.LT.HUSQ HUS-532414110
...
296
LED LIGHT.LH HUS-585420501
...
52
Hardware HUS-596040501
...
14
KIT.HOOD.ASM.HUSQ.GT.TEX.668 HUS-587483301
...
3
APPLIQUE.SUBASM.GT.HUSQ.II HUS-532444481
...
228
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
297
INSERT REFECT LH HUS-586182901
...
344
CONTROL.EZ.MULCH.TEX/CRD HUS-583536701
...
287
SCREW 1/4X20 HUS-817600406
...
366
BRACKET.RH.FRONT.BAGGER.BLACK HUS-581314602
...
247
STRAP.BATTERY.TCRD.GEN2.5X431 HUS-582552602
...
151
SERVICE KIT PIVOT BRACKET BRAC HUS-531077401
...
249
SCREW.BUTTONHD.10-24X1/2.(2 2) HUS-586936001
...
248
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
252
BRACKET.PNT.RH.SUPP.BKPLT.EDIP HUS-581992204
...
250
Hardware HUS-596040801
...
150
AIR.DUCT.GTV.BLACK HUS-532439774
...
308
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
340
BATTERY.DOOR.TCRD.GEN2.5.MS479 HUS-582552702
...
183
Screws HUS-595305701
...
214
CLIP.RETAINER.TINNER. HUS-532199145
...
370
SCREW 3/8-16X1 HUS-817120616
...
137
BUMPER DASH HUS-532407590
...
177
BUSHING STEERING HUS-532195228
...
176
SCREW.#10-24X5/8.RN.QU HUS-532400776
...
254
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
198
INDICATOR.DECK.LIFT.RED HUS-532441552
...
284
CONSOLE.PEDAL.HYDRO HUS-532447220
...
334
BRACKET.ENGINE. HUS-583564401
...
338
BOLT.SHOULDER.5/16-18.X.88 HUS-583510201
...
299
LED LIGHT.RH HUS-585420401
...
15
Grilles LH HUS-597247301
...
229
VENT.TOP.EXTERNAL.FILL.ASY.GT2 HUS-587485901
...
218
X-PIECE.HOOD.STOP.NON/ HUS-532196395
...
162
Screws HUS-596134101
...
36
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
236
NUT.CENTERLOCK.5/16- HUS-873930500
