Husqvarna TC 342 - 96051012900 (2014-08) Tractors/Ride Mower

Model: TC 342 - 96051012900 (2014-08)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
108
COVER ENGINE PULLEY COVER WITH HUS-587179510
...
70
EXHAUST.TUBE.LH.BS/TWIN HUS-581881101
...
21
Screws HUS-596321701
...
82
VALUE.OIL.DRAIN HUS-532428287
...
116
KNOB - SHIFT HUS-539132624
...
9
Keepers HUS-596501502
...
42
Washers HUS-596238901
...
102
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
96
Washers HUS-596135301
...
90
SCREW 3/8-16X1 HUS-817000616
...
15
TANK.ASSY.XTERNAL.FILL.GT2.TEX HUS-583507201
...
97
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
41
WASHER HUS-532126197
...
79
Screws HUS-596134202
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
85
BOLT.HEX.7/16-20X3.75.GR5.RED HUS-501606601
...
137
SPILL.CUP HUS-532441461
...
37
HOSE CLAMP HUS-532123487
...
18
CAP.ASM.FUEL.2.25"TOP.TURN HUS-532441462
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
20
THROTTLE.PRO.RSTART. 38 HUS-587242701
...
1
ENGINE B&S MODEL 44S677-0019-B1 (587526101) HUS-000000000
...
11
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 HUS-587241601
...
69
GASKET.MUFFLER HUS-532165391
...
84
SCREW.3/8-16 HUS-817060620
...
12
PULLEY.ENGINE.TUFFTORQ HUS-532405097
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
2
MUFFLER.ASM.TWIN.MNTG.BRACKET HUS-589818702
...
71
EXHAUST.TUBE.RH.B&S.TWIN.INTEK HUS-581881001

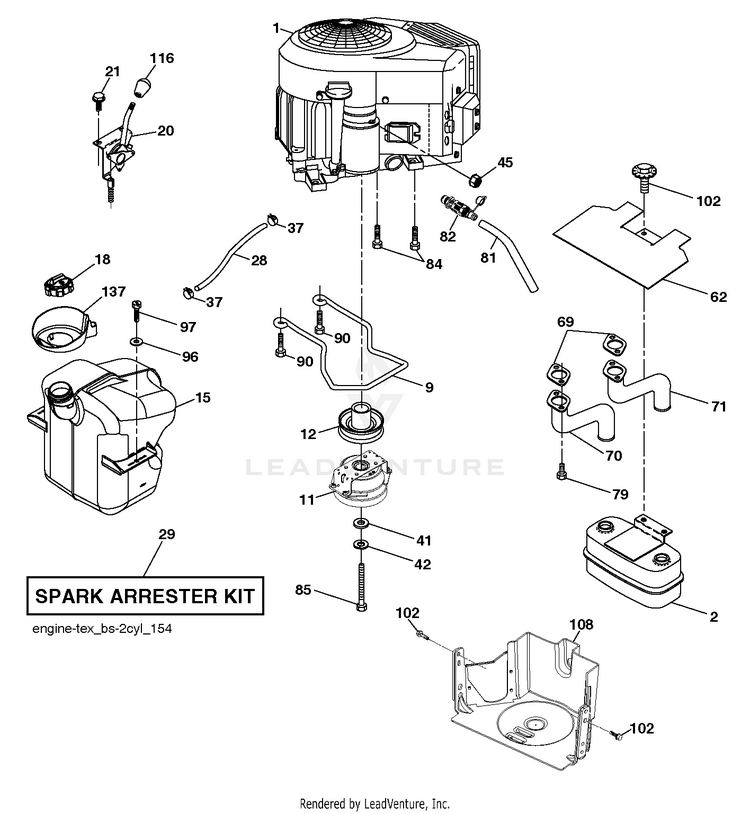

Schematic Image Zoomed
