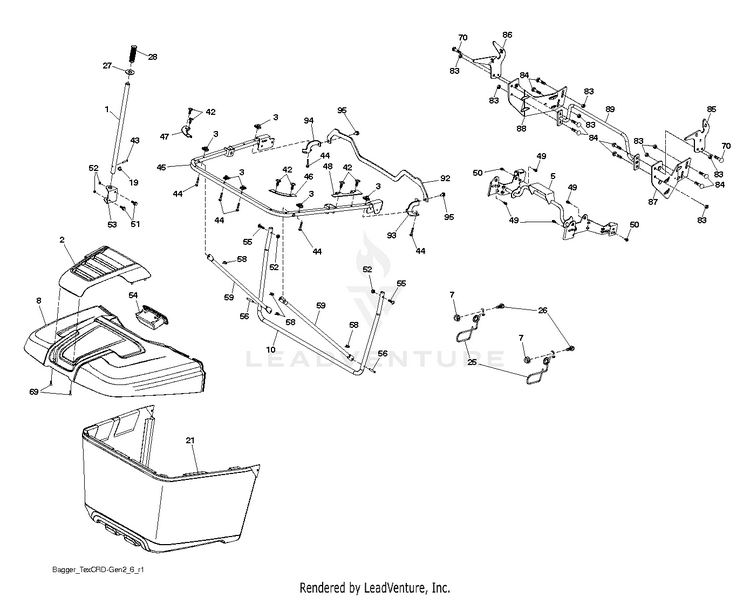

Husqvarna TC 342 - 96051012900 (2014-08) Tractors/Ride Mower

Model: TC 342 - 96051012900 (2014-08)

Back To Assemblies

Save Part Not Listed?
product name

BAGGER

...
...
- -
KIT.BAGGER.COMPLETE.GENII Bagger Complete Kit (Includes Key#'s 1, 5, 10, 19, 21, 27, 28, 42, 43, 46, 47, 48, 49, 50, 52, 54, 56, 59, 65) HUS-586744901
...
87
BRACKET.RH.MID.SUP.BAG.TEX.CRD HUS-581314802
...
48
TOP.BGGR.SIDE.CLOSE-OUT.TCRDII HUS-583573101
...
25
LATCH.BAG.CRD.GEN2 HUS-583580301
...
56
PIN.CLEVIS.183 HUS-532420306
...
21
BAGGER.ASM.FABRIC.CRD.GII.HUSQ HUS-581337103
...
51
BOLT.CARR.SQNK.5/16-18UNC.X3/4 HUS-872110506
...
10
BAGGER.FRAME.LOW.UTUBE.TEX.CRD HUS-583825801
...
3
1/4-20 U NUT HUS-532174814
...
89
TUBE.WELD.OFSET.STRUT.BAG.X431 HUS-581315104
...
49
BOLT, SHOULDER 5/16-18 HUS-532171873
...
52
Hardware HUS-596040501
...
83
Nuts HUS-596322601
...
26
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
58
RETAINER CLIP PM HUS-532085179
...
28
GRIP.HANDLE.BLACK HUS-532165787
...
45
TCRD.-GEN2.UPPR.U.FRAME.WLDMT HUS-583570301
...
88
BRACKET.LH.MID.SUP.BAG.TEX.CRD HUS-581314702
...
70
SCREW, 3/8-16X3/4 HUS-817000612
...
44
SCREW HUS-532199687
...
55
Bolts HUS-596030801
...
2
APPLIQUE BAGGER HUS-583765001
...
5
TCRD.II.UPR.PIVOT TUBE.WLDMT HUS-583570401
...
42
CHRISTMAS.TREE.CLIP HUS-583548101
...
19
PIN.COTTER.5/16.BOW TI HUS-532194208
...
7
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
86
BRACKET.LH.PIVOT.MAN.DUMP.BLAC HUS-581314302
...
95
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
69
SCREW,#8.FLAT.HEAD.DRILL.TIP HUS-583392101
...
43
RIVET,DRILLED HUS-532126875
...
27
RUBBER.GROMMET.DUMP.TUBE.CRDII HUS-583580401
...
59
BAGGER SPRD.TUBE.TEX.CRD.GEN2 HUS-583826601
...
53
BRACKET.DUMP.HANDLE.TEX.CRD.G2 HUS-583573601
...
8
BAGGER.TOP HUS-583825901
...
94
BRACKET.PNT.LH.SUPPORT.ATTACH HUS-586052502
...
85
BRACKET.RH.PIVOT.MAN.DUMP.BLAC HUS-581314402
...
46
LH.BGGR.CRNER.CLOSE-OUT.TEXCRD HUS-583580501
...
1
SERVICE KIT TUBE TUBE.HANDLE.B HUS-531151701
...
84
Bolts HUS-596728201
...
93
BRACKET.PNT.RH.SUPPORT.ATTACH HUS-586052402
...
54
BAGGER TOP.FRONT.HANDLE HUS-583827701
...
50
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
47
LH.BAG.CRNER.CLOSE-OUT.TEXCRD HUS-583573001
...
92
BRACKET.PNT.BAGGER.TOP.SUPPORT HUS-586052302
