Husqvarna TC 342 - 96051012900 (2014-08) Tractors/Ride Mower

Model: TC 342 - 96051012900 (2014-08)

Back To Assemblies

Save Part Not Listed?
product name

STEERING

...
...
8
RING CLIP HUS-812000029
...
67
BUSHING, AXLE HUS-529496302
...
2
SUBASM.AXLE.CAST.NZTR. HUS-583512701
...
70
BRACKET FRONT DECK SUSPENSION HUS-585338802
...
61
Links LH HUS-597047601
...
19
SERVICE KIT PLATE PLATE.STEER. HUS-531169101
...
28
SCREW, 3/8-16X3/4 HUS-817000612
...
21
KIT.SRVC.STEERINGSHAFT.ADAPTER HUS-587738905
...
50
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
66
BOLT HEX FGHD 7/16-14 X 3 SERR HUS-871020748
...
53
WASHER.HARDENED HUS-532188967
...
14
Washers HUS-596238701
...
7
WASHER HUS-532121748
...
13
WASHER HUS-532121749
...
15
NUT CROWNLOCK 3/8-24 HUS-873540600
...
76
SCREW HEAD SOCKET LRVB HUS-580683601
...
75
KIT.SRVC.STEERINGSHAFT.PINION HUS-587738906
...
4
WELDMENT.SPINDLE.LH.15.NZTR LH HUS-583512801
...
27
Washers HUS-596933401
...
122
CAP.GEAR.SECTOR.TEX HUS-583576601
...
26
INSERT.CAP.WHL.STRG.HUSQ.PREM HUS-532439743
...
69
WASHER.1.5X.505X.118 HUS-532199162
...
82
SUBASM;PIVOT;BOLT;NZTR HUS-532442147
...
45
WASHER 9/16"ID, 2 3/8"OD HUS-819183812
...
63
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
85
SERVICE KIT SUBASM.PIVOT.RH.NZ HUS-529846901
...
68
NUT.LOCK.FLANGE.7/16 HUS-873900700
...
5
WELDMENT.SPINDLE.RH.15.NZTR RH HUS-583512901
...
9
CAP.SPINDLE.BLACK HUS-532121232
...
81
Links HUS-597069702
...
60
NUT.FLANGE.LOCK.5/8-11 HUS-583612801
...
86
SUBASM.PIVOT.LH.NZTR HUS-583561001
...
16
KIT.SRVC.STEERINGSHAFT.2HISHFT HUS-587738904
...
58
BOLT.SHOULDER.SECTOR.P HUS-532194747
...
59
WASHER.THURST.SECTOR.S HUS-532194748
...
22
KIT.SRVC.STEERINGSHAFT.LWRBSHG HUS-587738901
...
80
THRUST WASHER HUS-532001370
...
64
RETAINER.CLIP.SPRING.S HUS-532199849
...
6
WASHER THRUST HUS-532006266
...
62
Links RH HUS-597070101
...
1
WHEEL.STEER.HUSQ.SR.498.OVMLD HUS-532439740
...
35
GEAR.SECTOR.TEX.NZTR HUS-583551401

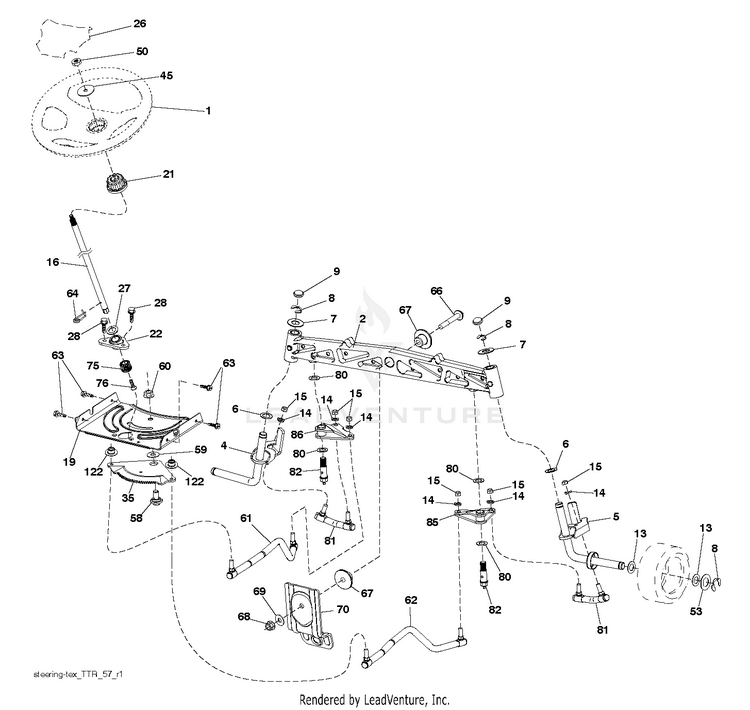

Schematic Image Zoomed
