Husqvarna TC 342 - 96051012900 (2014-08) Tractors/Ride Mower

Model: TC 342 - 96051012900 (2014-08)

Back To Assemblies

Save Part Not Listed?
product name

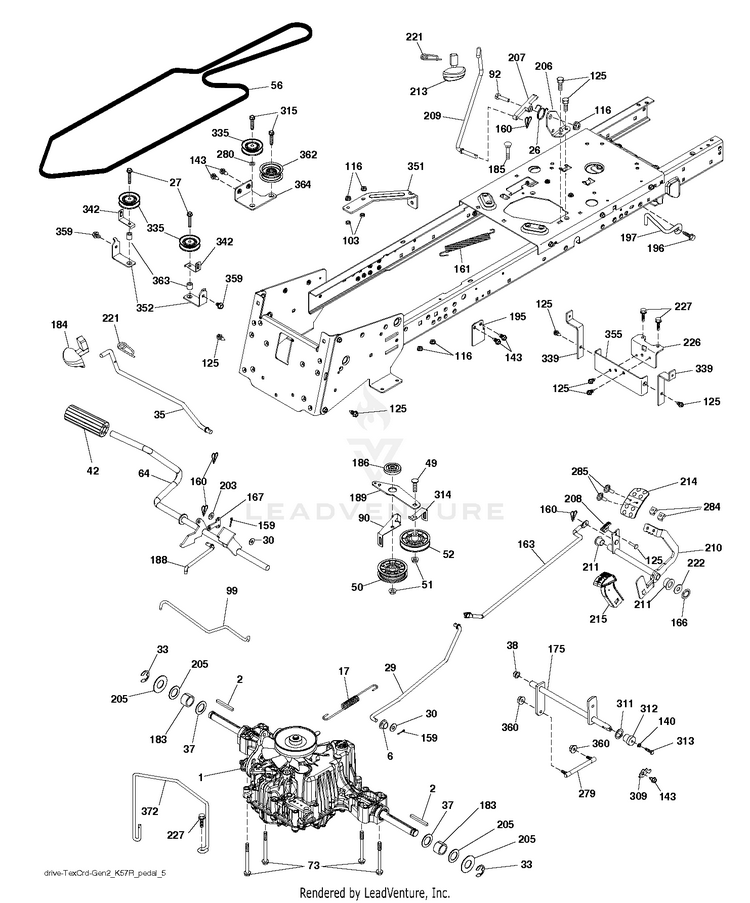

DRIVE

...
...
309
PLATE.FASTENING.CROSS.SHAFT HUS-532165580
...
285
SCREW.MACHINE.CR.1/4-20 HUS-874180412
...
211
BEARING.NYLON HUS-532120183
...
206
BRACKET.MOUNT.CRUISE.LATCH HUS-532448596
...
205
WASHER HUS-532121748
...
2
SQUARE KEY HUS-532123583
...
17
SPRING.BRAKE.K46.TEX.CRD HUS-583508701
...
99
ROD.BYPASS.CRD.TEX.GEN2 HUS-583571801
...
42
PAD, FOOT PEDAL HUS-510089501
...
351
BRACKET.97.CRD.DECK.SWAY HUS-583515101
...
116
GSPW Nuts HUS-596135701
...
33
E-RING LT HUS-812000001
...
222
WASHER 21/32 X 1-1/4 X 10 GA. HUS-879212010
...
161
SPRING, RETURN LT HUS-532105709
...
207
Latch HUS-587031402
...
50
IDLER.FLAT.910.OFFSET HUS-532194327
...
29
ROD.BRAKE.K46.TCRD.GEN2 HUS-583566601
...
183
SPACER AXLE HUS-532137057
...
359
Screws HUS-596564002
...
90
KEEPER.BELT.CLUTCHING.TEX.CRD HUS-583570001
...
226
SERVICE KIT BRACKET HUS-531170501
...
360
NUT.HEX.CENTERLOCK.5/16-24 UNF HUS-583575901
...
342
SERVICE KIT KEEPER.BELT.2.5".V HUS-529846301
...
311
WASHER NYL HUS-532169845
...
221
RETAINER.SPRING.CLIP.H HUS-532403187
...
280
Washers HUS-596039901
...
189
BELLCRANK.GROUND.DRIVE.CRD.TEX HUS-583492701
...
140
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
203
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
185
BOLT HUS-872110622
...
195
BRACKET.ROD.BRAKE HUS-580456901
...
315
BOLT.5/16-18X1.25 HUS-817580520
...
313
Screws HUS-596230901
...
209
Rods HUS-596869801
...
188
LINK.CLUTCH.GROUND DRIVE.LONG HUS-582217001
...
35
Rods HUS-583864502
...
38
NYLINER SNAP 5/8" ID HUS-532169613
...
196
SCREW 3/8-16X1 HUS-817000616
...
175
SHAFT.ASM.CROSS.SHIFT.REAR.FCH HUS-583560401
...
52
IDLER.V-GROOVE.910.OFFSET HUS-532194326
...
363
SPACER.343X63X.62 HUS-583566301
...
51
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
210
ROCKER.ASM.PEDAL.CONTR HUS-532400980
...
92
Screws HUS-595305701
...
184
HANDLE.PARKING.BRAKE.H (BLK) HUS-532196439
...
279
Links HUS-593898401
...
64
SHAFT.ASM.PEDAL.BRK.CNTR HUS-532197865
...
73
Bolts HUS-595316601
...
37
WASHER.HARDENED HUS-532188967
...
103
Nuts HUS-596436301
...
352
BRACKET.IDLER.CRD.TEX HUS-583506401
...
335
PULLEY.V-IDLER. HUS-532199534
...
160
GSPW Retainers HUS-596029401
...
214
PEDAL.FORWARD.HUSQVARNA.DEALER HUS-532416863
...
49
Bolts HUS-596136201
...
312
HUB.TAPERED.ROUND.CRD HUS-532165614
...
143
Screws HUS-596030701
...
1
TRANSAXLE TUFFTORQ K57AH (585743601) HUS-000000000
...
125
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
213
KNOB.CONTROL.CRUSIE.HU HUS-532403119
...
197
Stop HUS-585658602
...
166
NUT.PUSH.625 HUS-532429164
...
227
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
163
Rods HUS-594084102
...
339
STRAP.TORQUE.K46.CRD.TEX HUS-583512601
...
30
Washers HUS-596140201
...
26
SPRING.RETURN.CRUISE HUS-532199679
...
362
IDLER.FLAT.2.25.INCH HUS-583512101
...
314
KEEPER.BELT HUS-583575801
...
6
BUSHING.SNAP.NYL.BLK. HUS-532124028
...
27
Screws HUS-596241001
...
167
SERVICE KIT LATCH LATCH.BRAKE. HUS-531152901
...
284
NUT.U-CHNL.1/4-20.550DP.350PNL HUS-532417693
...
159
Pins HUS-596029501
...
186
SPACER.RETAINER HUS-532194321
...
56
RP_BELT.DRIVE.GROUND.114.25 HUS-583566401
...
364
BRACKET.IDLER.CRD.TEX HUS-583567401
...
355
STRAP.TORQUE.K46.CRD.TEX HUS-583506501
...
215
PEDAL.COVER.REVERSE.CRD.X428BK HUS-586606502
...
208
Gears HUS-596564101
...
372
KEEPER.BELT.CRD2.K46.2.BOLT. HUS-582654901
