Husqvarna TC 342 - 96051012900 (2014-08) Tractors/Ride Mower

Model: TC 342 - 96051012900 (2014-08)

Back To Assemblies

Save Part Not Listed?
product name

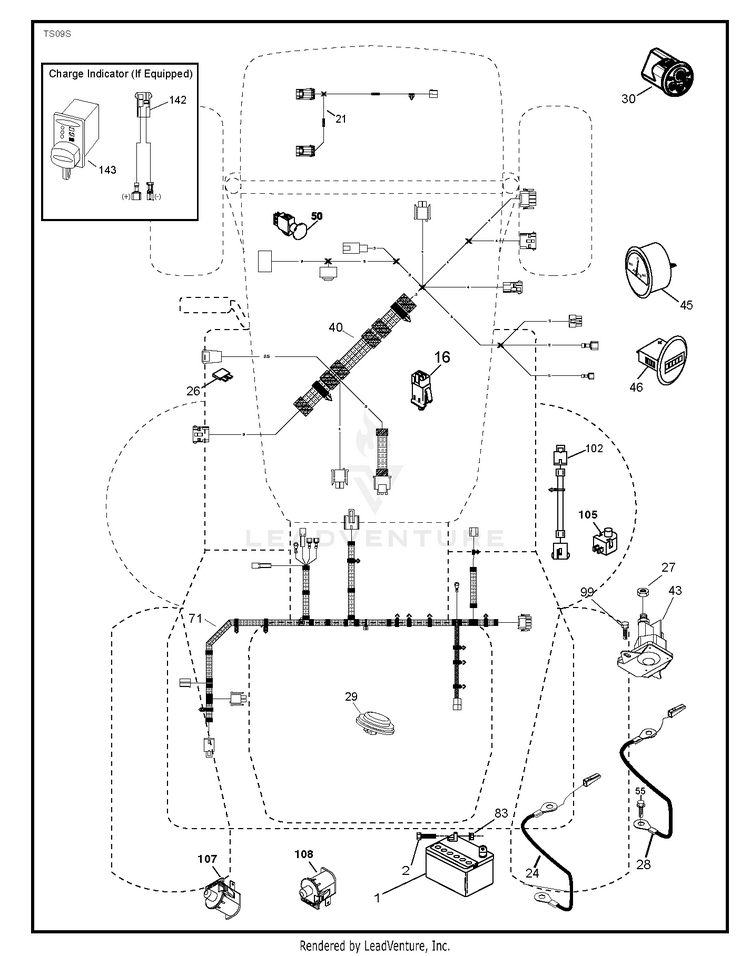

ELECTRICAL

...
...
143
CTEK CHARGE PORT W/HARNESS HUS-583593501
...
108
PLUNGER SWITCH (COLOR:OLIVE) HUS-532160784
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
43
Solenoids HUS-582042802
...
46
HOUR METER HUS-529910701
...
45
AMMETER HUS-529910801
...
50
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
2
Bolts HUS-596320101
...
142
CTEK CHARGE PORT W/HARNESS HUS-583593501
...
83
NUT SQUARE M6, 11X8.5 ZPB HUS-594086501
...
30
SMARTSWTCH.MY15.CRD HUS-586590710
...
21
HARNESS LIGHT ASSY TRACTOR, HUS-585436401
...
24
CABLE.BATTERY.POASTIVE.HAM.POS HUS-585734302
...
105
REVERSE SWITCH HUS-532407568
...
28
CABLE.GROUND, BATT TO HARN HUS-585306903
...
55
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
26
FUSE 20AMP HUS-532175158
...
1
AGM BATTERY HUS-536147701
...
27
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
102
HARNESS.JUMPER.TT.TEXCRD HUS-583555601
...
29
SWITCH.SEAT.OPC.GRY.BUTTON/CAP HUS-581429302
...
107
SWITCH.FBI.CRD HUS-583100701
...
30
KIT.SMRT.SWTCH.RPLMNT.MY14.CRD Smartswitch WITH Adapter HUS-586590707
...
71
HARNESS CHAS,TEX,SIS,CRD SMART HUS-585216601
...
40
HARNESS.DASH.EL.SIS.RND.MY15 HUS-585216502
...
99
Screws HUS-596437001
