Husqvarna TC 342 - 96051012900 (2014-08) Tractors/Ride Mower

Model: TC 342 - 96051012900 (2014-08)

Back To Assemblies

Save Part Not Listed?

Popular Parts

Bolt.Shoulder.3/8-16X3-5/8 HUS-596434404

Bolt Washer Assembly 7/16-20 HUS-532193003

Screw 1/4-20X5/8 HUS-532137729

Screw HUS-584953901

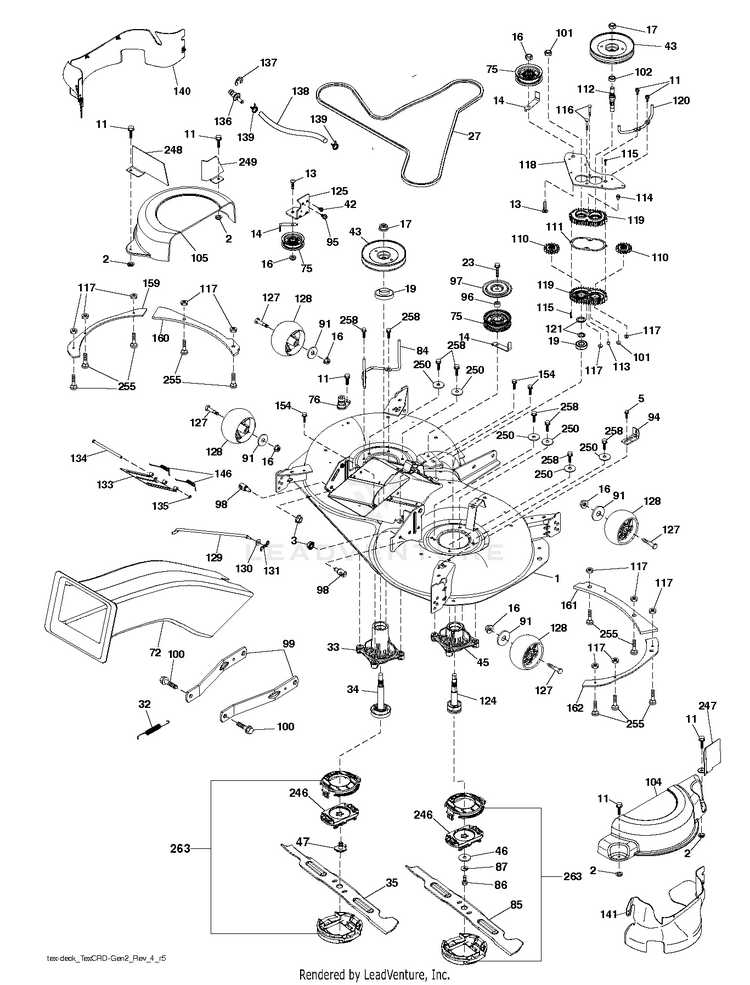

MOWER DECK / CUTTING DECK

CLG HUS-597025001

- -

MANDREL.INT.SPACER.NONGRS.REV Mandrel Assembly Tall (Includes Housing (key #33), Shaft Assembly (key#34), and Bearing Only (key#19) - Pulley/Nut/Washer and Blade Bolt/Washers Not Included) HUS-587126105

MANDREL.ASM.SHORT.LH/THD. HUS-581650501

Keepers HUS-597024901

124

MANDREL.ASM.SHORT.LH/THD. HUS-581650501

131

PIN.COTTER.5/16.BOW TI HUS-532194208

118

ARM.CLUTCHING.107.TEX.CRD HUS-583567701

BRKT.CLUTCH.CABLE HUS-532197250

136

WASHOUT.PORT.REMOTE.HOOKUP HUS-583544201

DECK SVCX 107HP EZMUL 498 HUS-581928401

134

PIN.HINGE HUS-583507401

KEEPER.BELT.MANDREL PULLEY HUS-583567901

139

HOSE.3/8.CLAMP (2 2) HUS-532440742

154

SCREW.1/4-20X.50-0T30 HUS-583254901

135

E-RING.5/16" HUS-532437988

100

BOLT.SHOULDER HUS-532196539

115

SCREW.TORX#10-24X1 HUS-583608901

- -

DECK.ASM SVCX 107TCRD.EL.EZMLH "Includes housing, shaft assembly, and bearing only - pulley/nut/washer and blade bolt/washers not included" HUS-586213901

BOLT.5/16HEX.WHS.HD HUS-817000510

117

NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901

138

107.WASHOUT.PORT.HOSE (2 2) HUS-583591801

- -

KIT.CRD.GEABOX.SVC Gear Case Kit. Use .75 oz. Shell 460 Oil. (Include Gear Output (key #110), Gasket Gearcase (key #111), Shaft Gearcase (key #112), Plug Oil (key #113), Vent Breather 1/8 NPT (key #114), Screw Torx (key #115), Gearcase Subasm (key #119). HUS-532448132

SPRING.DRVE.107&97CM.ELEC.DECK HUS-583584001

BEARING.MANDREL.TOP.EXTENDED HUS-585323901

Washers HUS-596238701

160

REINFORCE.PLATE.LHS.BOLT.431 HUS-585309505

110

CRD.SPUR.GEAR HUS-587934801

1/2" BARB.DECK.WASHOUT.PORT HUS-583544301

133

DOOR.EZ.MULCH.107.CRD HUS-583527801

102

SPACER BEARING HUS-532402511

KIT,MANDREL,NONGREASE,REVOL HUS-587820201

BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867

258

BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901

128

WHEEL.GAUGE.RALLY HUS-589527301

PALNUT 1/4 HUS-532423062

KIT,MANDREL,NONGREASE,REVOL HUS-587820201

SCREW, 3/8-16X3/4 HUS-817000612

GSPW Nuts RH HUS-596135701

127

Bolts HUS-596434404

130

GSPH HUS-596134901

129

ROD.SWAY.97&107.CRDI&II HUS-583568101

161

REINFORCE.PLATE.RH.FRT.X431 HUS-585316005

246

HOLDER.BLADE.REVOLUTION HUS-580954003

BLADE.REVLTION.107CM.LHS.PT431 HUS-581121101

250

WASHER HUS-819111212

BOLT.3/8-24X1.25GR8. LHTHRD HUS-583117001

255

BOLT CUP HEAD SQUARE NECK 1/4- HUS-592807801

BOLT HUS-599972501

120

KEEPER.RH.MANDREL.BELT HUS-583568001

125

IDLER.BRACKET.ASM. HUS-583548001

111

GASKET.GEARCASE.97.CRD (2 2) HUS-583514001

146

SPRING.EZ.MULCH.DOOR HUS-583582001

119

GEAR.CASE.SUBASM. HUS-583527601

248

GUARD.STEEL.CRD.MANDREL.COV.FR HUS-581263602

STUD.W/"D"ANTI-ROTATION HUS-593824001

140

GUARD.ASSEMBLY.107.LH.FRENCH HUS-501580001

SERVICE.KIT ARM.SUSPENSION.MOW HUS-529846401

GSPH HUS-596134901

BLADE.REVLTION.107CM.RHS.PT431 HUS-581121201

105

COVER.MANDREL.107.LH.GEN.2 HUS-532444755

BOLT.WASHER.ASM.7/16-2 HUS-532193003

114

VENT.BREATHER.1/8 NPT HUS-588170501

CHUTE.SLOTTED.HOLES.TEX.CRD.II HUS-581454103

249

GUARD.STEEL.CRD.MANDREL.COV.FR HUS-581263502

SCREW.1/4-20X5/8 HUS-532137729

PULLEY.MANDREL.5.438 PD HUS-583568201

Nuts HUS-596134801

263

CAP.REVOLUTION ASM HUS-586638501

116

Bolts HUS-594976601

NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149

137

RING CLIP HUS-812000029

101

Hardware HUS-596040601

GSPW Bolts HUS-596136101

112

SHAFT.CRD.GEARCASE.ADAPTER HUS-583571601

159

REINFORCE.PLATE.LH.FT.X431 HUS-585309405

BELT.ELECT.MOWER.DRIVE 97.8 EL HUS-532445887

162

REINFORCE.PLAT.RH.SD.BLT.X431 HUS-585316105

113

1/8-27.NPT.OIL.PLUG HUS-583533001

141

GUARD.ASSEMBLY.107.RH.FRENCH HUS-501579602

247

GUARD.STEEL.CRD.MANDREL.COV.FR HUS-581263402

SPACER.NORAM.CRD HUS-583261101

121

WASHER.687.I.D.X.1 OD.X.062THK HUS-583514101

- -

MANDREL.ASM.SHORT.LH/THD. MANDREL ASSEMBLY SHORT (Includes Housing (key #45), Shaft Assembly (key #124), and Bearing (key #19) only - Pulley/Nut/Washer and Blade Bolt/Washers Not Included) HUS-581650501

104

COVER.MANDREL.107.RH.GEN.2 HUS-581714001

SHIELD.IDLER.MOWER.CRD. HUS-583119101
