Husqvarna TC 338 - 96051012800 (2014-07) Tractors/Ride Mower

Model: TC 338 - 96051012800 (2014-07)

Back To Assemblies

Save Part Not Listed?

Popular Parts

Bolt.Shoulder.3/8-16X3-5/8 HUS-596434404

Bolt Washer Assembly 7/16-20 HUS-532193003

Screw 1/4-20X5/8 HUS-532137729

Screw HUS-584953901

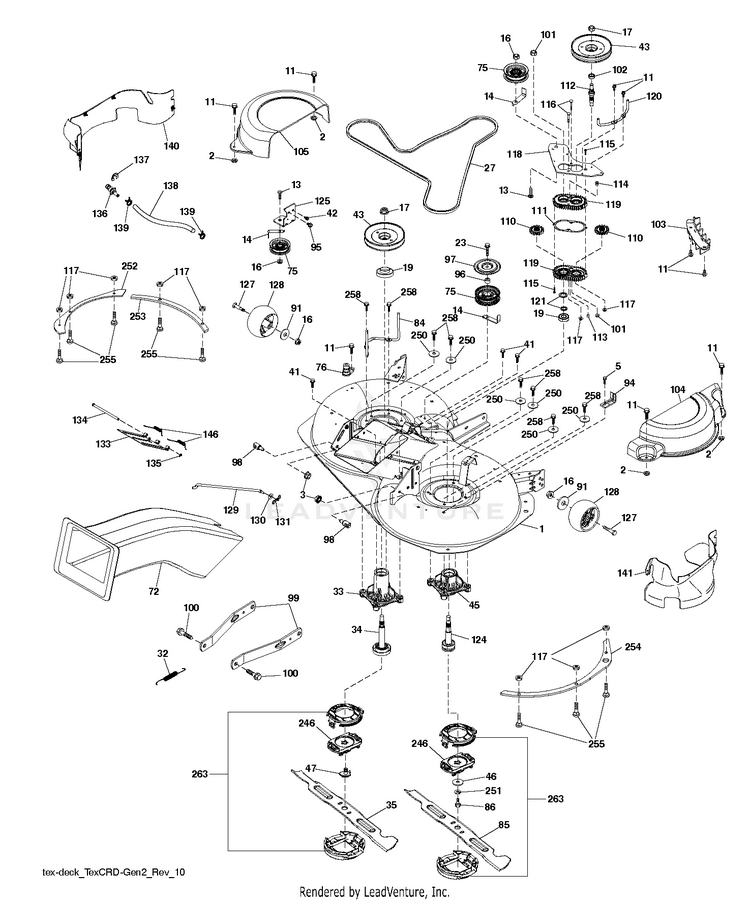

MOWER DECK / CUTTING DECK

102

SPACER BEARING HUS-532402511

119

GEAR.CASE.SUBASM. HUS-583527601

CHUTE.SLOTTED.HOLES.TEX.CRD.II HUS-581454103

137

RING CLIP HUS-812000029

140

GUARD.ASM.LH.CRD.FRENCH.97CM HUS-598660801

133

DOOR.MULCH HUS-583505301

129

ROD.SWAY.97&107.CRDI&II HUS-583568101

KIT.SVC.DECK.WLD.97.EZ_MUL.428 HUS-547664501

127

Bolts HUS-596434404

STUD.W/"D"ANTI-ROTATION HUS-593824001

3/8 FLAT WASHER HUS-585729901

113

1/8-27.NPT.OIL.PLUG HUS-583533001

KIT,MANDREL,NONGREASE,REVOL HUS-587820201

128

WHEEL.GAUGE.RALLY HUS-589527301

SCREW, 3/8-16X3/4 HUS-817000612

125

IDLER.BRACKET.ASM. HUS-583548001

121

WASHER.687.I.D.X.1 OD.X.062THK HUS-583514101

146

SPRING.EZ.MULCH.DOOR HUS-583582001

PALNUT 1/4 HUS-532423062

- -

MANDREL.ASM.SHORT.LH/THD. MANDREL ASSEMBLY SHORT (Includes Housing (key #45), Shaft Assembly (key #124), and Bearing (key #19) only - Pulley/Nut/Washer and Blade Bolt/Washers Not Included) HUS-581650501

BRKT.CLUTCH.CABLE HUS-532197250

118

ARM.CLUTCHING.97.TEX HUS-583514401

BOLT HUS-599972501

GSPW Nuts RH HUS-596135701

BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867

MANDREL.ASM.SHORT.LH/THD. HUS-581650501

251

Washers HUS-596238901

CLG HUS-597025001

SERVICE.KIT ARM.SUSPENSION.MOW HUS-529846401

112

SHAFT.CRD.GEARCASE.ADAPTER HUS-583571601

100

BOLT.SHOULDER HUS-532196539

250

WASHER HUS-819111212

SCREW.1/4-20X5/8 HUS-532137729

103

GUARD.FRONT.VENT.97.CRD HUS-583514601

SPRING.DRVE.107&97CM.ELEC.DECK HUS-583584001

Keepers HUS-597024901

BEARING.MANDREL.TOP.EXTENDED HUS-585323901

116

Bolts HUS-594976601

138

HOSE 3/8ID, RUBBER 12" HUS-587924812

141

GUARD.ASM.RH.CRD.FR.97CM.SLOT HUS-598660701

BLADE.REVOLUTION.97CM.LHS HUS-580983301

117

NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901

NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149

BLADE.REVOLUTION.97CM.RHS HUS-580983401

104

97.CRD.RH.MANDREL.COVER HUS-532438968

111

GASKET.GEARCASE.97.CRD (2 2) HUS-583514001

110

CRD.SPUR.GEAR HUS-587934801

124

MANDREL.ASM.SHORT.LH/THD. HUS-581650501

246

HOLDER.BLADE.REVOLUTION HUS-580954003

BOLT.5/16HEX.WHS.HD HUS-817000510

BELT.97CM.ELECTRIC HUS-583581401

130

GSPH HUS-596134901

136

WASHOUT.PORT.REMOTE.HOOKUP HUS-583544201

SHIELD.IDLER.MOWER.CRD. HUS-583119101

105

LH.MANDREL.COVER.97.TEX.CRD HUS-583534001

Nuts HUS-596134801

- -

MANDREL.INT.SPACER.NONGRS.REV Mandrel Assembly Tall (Includes Housing (key #33), Shaft Assembly (key#34), and Bearing Only (key#19) - Pulley/Nut/Washer and Blade Bolt/Washers Not Included) HUS-587126105

253

PLATE.REINFORCEMENT.LHS.X431 HUS-585308805

134

PIN.HINGE HUS-583507401

- -

KIT.SVC.DECK.WLD.97.EZ_MUL.428 "Includes housing, shaft assembly, and bearing only - pulley/nut/washer and blade bolt/washers not included" HUS-547664501

BELT KEEPER.MANDREL.38"COATED HUS-532400140

BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901

114

VENT.BREATHER.1/8 NPT HUS-588170501

BOLT.3/8-24X1.25GR8. LHTHRD HUS-583117001

GSPH HUS-596134901

SERVICE KIT PULLEY PULLEY.MAND HUS-531170001

252

PLATE.REINFORCEMENT.X431 HUS-585308705

263

CAP.REVOLUTION ASM HUS-586638501

120

KEEPER.BELT.RH.MANDREL.97.CRD HUS-583514501

135

E-RING.5/16" HUS-532437988

139

HOSE.3/8.CLAMP (2 2) HUS-532440742

SPACER.NORAM.CRD HUS-583261101

KIT,MANDREL,NONGREASE,REVOL HUS-587820201

254

PLATE.REINFORCEMENT.LHS.X431 HUS-585309005

BOLT.WASHER.ASM.7/16-2 HUS-532193003

255

BOLT CUP HEAD SQUARE NECK 1/4- HUS-592807801

101

Hardware HUS-596040601

- -

KIT.CRD.GEABOX.SVC Gear Case Kit. Use .75 oz. Shell 460 Oil. (Include Gear Output (key #110), Gasket Gearcase (key #111), Shaft Gearcase (key #112), Plug Oil (key #113), Vent Breather 1/8 NPT (key #114), Screw Torx (key #115), Gearcase Subasm (key #119). HUS-532448132

1/2" BARB.DECK.WASHOUT.PORT HUS-583544301
