Husqvarna TC 242TX - 96051019900 (2020-03) Riding Tractor

Model: TC 242TX - 96051019900 (2020-03)

Back To Assemblies

Save Part Not Listed?
product name

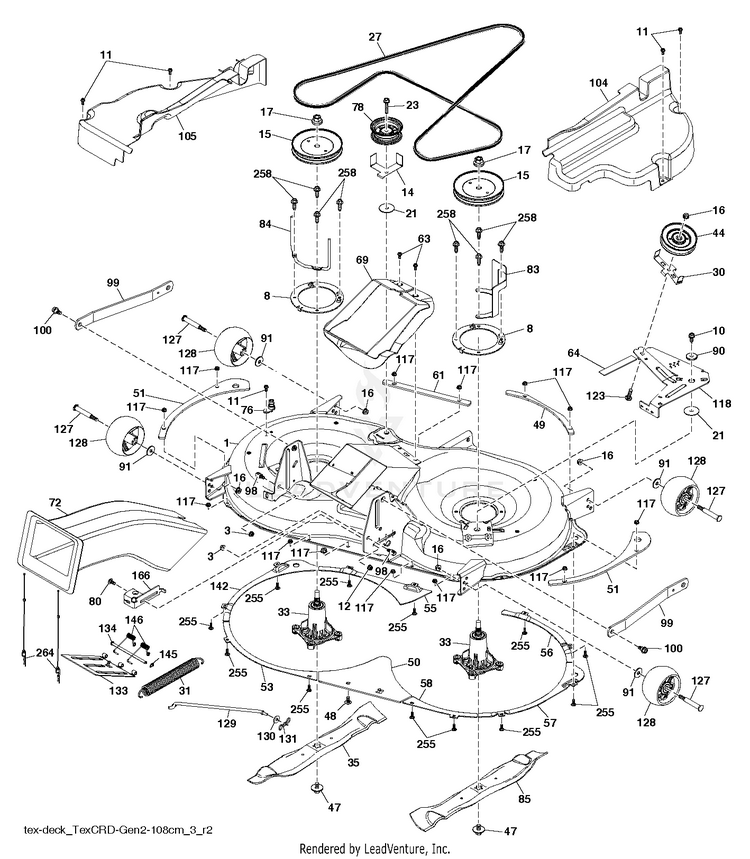

MOWER DECK / CUTTING DECK

...
...
64
VIBRATION PAD HUS-532425417
...
53
Plates HUS-597252502
...
129
ROD.SWAY.97&107.CRDI&II HUS-583568101
...
8
Plates HUS-595960202
...
90
SPACER.RETAINER HUS-532199092
...
78
PULLEY.IDLER.FLAT HUS-532177968
...
23
BOLT HUS-599972501
...
21
WASHER, WEAR LT (1 2) HUS-532106513
...
15
PULLEY.MANDREL.5.438.P HUS-532195945
...
130
Washers HUS-596133201
...
85
NEEDS DESCRIPTION HUS-594024802
...
33
Mandrels HUS-598856201
...
84
KEEPER 42 MANDREL BELT FOR 6.2 HUS-589676103
...
258
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
104
Covers HUS-594025901
...
61
Plates HUS-594025202
...
127
Bolts HUS-596434404
...
80
GSPW Bolts HUS-595901601
...
118
ARMS HUS-599832502
...
105
Covers HUS-594025801
...
166
Brackets HUS-594024602
...
128
WHEEL.GAUGE.RALLY HUS-589527301
...
27
Belts HUS-594024901
...
35
NEEDS DESCRIPTION HUS-594024702
...
146
SPRING.EZ.MULCH.DOOR HUS-583582001
...
17
Nuts HUS-596134801
...
99
Arms HUS-594928202
...
49
Plates HUS-594025102
...
57
Plates HUS-597252402
...
14
GUARD.TUV.IDLER.42 HUS-532436858
...
76
PORT.WASHOUT HUS-532415598
...
10
SCREW 3/8-16X1 HUS-817000616
...
48
Bolts HUS-596136001
...
131
PIN.COTTER.5/16.BOW TI HUS-532194208
...
83
Keepers HUS-595533302
...
47
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
123
GSPW Bolts HUS-596136101
...
255
BOLT CUP HEAD SQUARE NECK BOLT HUS-596238401
...
1
Decks HUS-597959203
...
11
SCREW.1/4-20X5/8 HUS-532137729
...
72
Chutes (581 45 41-04) Chute, Slotted, Holes, Tex, CRD, II HUS-581454104
...
134
Pins HUS-593889501
...
142
Plates HUS-597252302
...
44
PULLEY.V.IDLER HUS-532193195
...
31
SPRING.EXTENSION HUS-582504001
...
91
GSPH HUS-596134901
...
55
PLATE 108CM LH CONTAINMENT KIT HUS-547682401
...
30
SPACERS HUS-599244102
...
3
GSPW Nuts RH HUS-596135701
...
63
HEX.WASHER.HEAD 1/4-20 X .65 HUS-585517801
...
51
Plates HUS-594025002
...
133
Plates HUS-594025502
...
117
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
16
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
69
Seals HUS-597252201
...
58
Plates HUS-597252602
...
264
Retainers HUS-589392902
...
56
Plates HUS-597252802
...
100
BOLT.SHOULDER HUS-532196539
...
12
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
98
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
50
Plates HUS-595839602
...
- -
Decks "Includes housing, shaft assembly, and bearing only - pulley/nut/washer and blade bolt/washers not included" HUS-597959303
...
145
E-RING.5/16" HUS-532437988
