Husqvarna TC 242 - 96051012701 (2015-07) Tractors/Ride Mower

Model: TC 242 - 96051012701 (2015-07)

Back To Assemblies

Save Part Not Listed?
product name

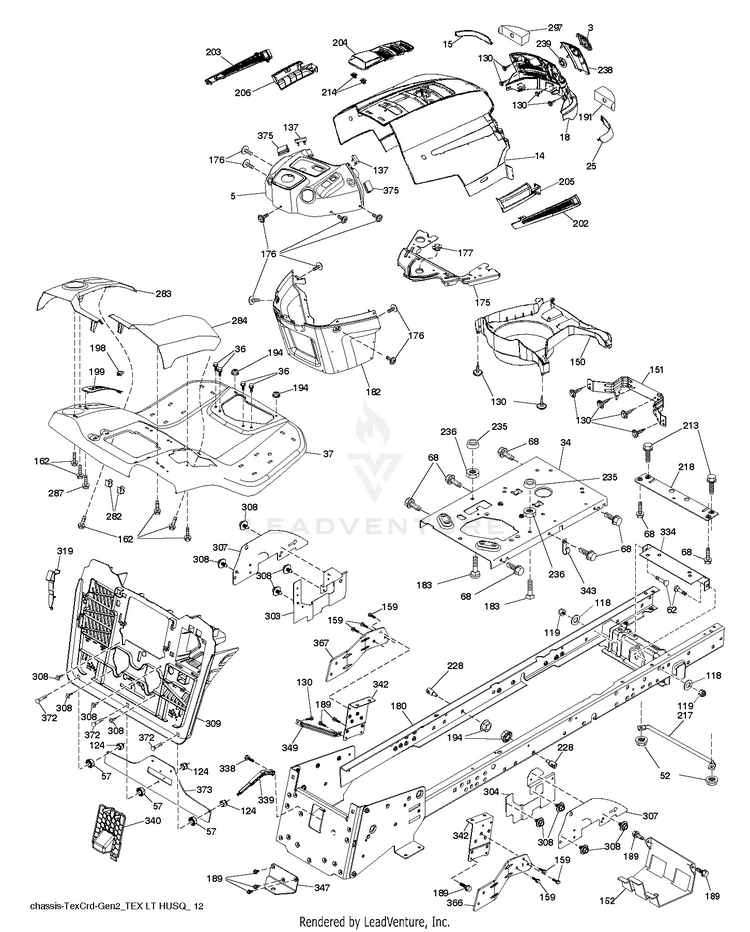

CHASSIS & ENCLOSURES

...
...
159
SCREW, 3/8-16X3/4 HUS-817000612
...
36
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
130
Screws HUS-596321701
...
25
LENS.HUSQVARNA LT.RH HUS-532406663
...
204
SUBASM.TOP.VENT.HUSQ.LT HUS-532441375
...
14
HOOD.HUSQVARNA.LT.ORANGE HUS-532441267
...
308
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
284
CONSOLE.PEDAL.HYDRO HUS-532447220
...
238
TRIM.HUSQ LT.668 HUS-532407881
...
334
BRACKET.ENGINE. HUS-583564401
...
137
BUMPER DASH HUS-532407590
...
176
SCREW.#10-24X5/8.RN.QU HUS-532400776
...
235
Spacers HUS-596564201
...
287
SCREW 1/4X20 HUS-817600406
...
205
SKIRT.SIDE.HUSQVARNA.LT.RT HUS-532441344
...
151
BRACKET PIVOT HUS-532407807
...
367
BRACKET.LH.FRONT.BAGGER.BLACK HUS-581314502
...
198
INDICATOR.DECK.LIFT.RED HUS-532441552
...
213
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
282
CLIP.RETAINER.CONSOLE.LT.HUSQ HUS-532414110
...
339
SUBASM.BAGGER.FULL.LVER.(2 2) HUS-583510301
...
375
BUMPER CLIP-ON. DASH 1" HUS-586908201
...
18
GRILLE.SVC.HUSQVARNA.L HUS-584382301
...
175
CROSSMEMBER HUS-532199472
...
57
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
319
LEVER.BAG.CRDII.ANTIROTATION HUS-581313906
...
338
BOLT.SHOULDER.5/16-18.X.88 HUS-583510201
...
236
NUT.CENTERLOCK.5/16- HUS-873930500
...
162
Screws HUS-596134101
...
203
VENT SIDE HOOD HUS-532406671
...
366
BRACKET.RH.FRONT.BAGGER.BLACK HUS-581314602
...
199
PLATE.DECKLIFT.SRD HUS-583371401
...
218
X-PIECE.HOOD.STOP.NON/ HUS-532196395
...
68
Screws HUS-596030701
...
- -
TRACTOR BUMPER KIT ALL MODELS HUS-531307007
...
119
Nuts HUS-596322601
...
3
LOGO.HUSQ.GT.LT.CROWN.H HUS-532430771
...
34
Engines HUS-593944402
...
214
CLIP.RETAINER.TINNER. HUS-532199145
...
15
LENS.HUSQVARNA LT.LH HUS-532406664
...
309
Plates HUS-597316401
...
183
Screws HUS-595305701
...
194
GSPW Nuts HUS-596135701
...
304
SHIELD.LWR.RH.LT30DECK.PNT.BLK HUS-587492702
...
180
WELDMENT.CHASSIS.TEX.CRD.GEN.2 HUS-583902701
...
307
SHIELD.UPPER.CRD.SRD.ISO HUS-587494501
...
5
DASH HUS-585529804
...
62
Bolts HUS-596728201
...
191
INSERT.REFLECTIVE.RH. HUS-583358401
...
189
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
303
SHIELD.LWR.LH.LT.30DECK.CRDSRD HUS-587493101
...
202
VENT.SIDE.HUSQVARNA.LT.RT HUS-532441342
...
37
FENDER.TEX.SRD.CRD.FRN.GUARDS HUS-583759601
...
349
LRVB.FUEL.TANK.SUPPORT.BRACKET HUS-583509701
...
343
CLIP HUS-582671501
...
118
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
373
REINFORCEMENT BACKPLATE. CRD B HUS-586299803
...
347
HITCH.TOW.TEX.CRD.GEN.2 HUS-583566701
...
239
IS ITO HUS-532404883
...
52
Hardware HUS-596040501
...
340
BACKPLATE.ASM.TXCRDII.ANTIROTA HUS-581328906
...
152
SERVICE KIT SHIELD SHIELD.BROW HUS-531169901
...
342
SUPPORT.PNT.FENDER.CRD.TEX HUS-582826802
...
283
CONSOLE.DECKLIFT.CRDII.498 HUS-532447212
...
150
AIR DUCT HUS-532406662
...
372
BOLT CUP HEAD SQUARE NECK 1/4- HUS-592807801
...
297
INSERT REFLECTIVE HUS-532406665
...
206
SKIRT.SIDE.HUSQVARNA.LT.LEFT HUS-532441345
...
228
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
182
DASH.LOWER.PREDATOR LT HUS-532407176
...
124
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
217
ROD.PIVOT.HOOD HUS-532409167
...
177
BUSHING STEERING HUS-532195228
