Husqvarna TC 242 - 96051012701 (2015-07) Tractors/Ride Mower

Model: TC 242 - 96051012701 (2015-07)

Back To Assemblies

Save Part Not Listed?
product name

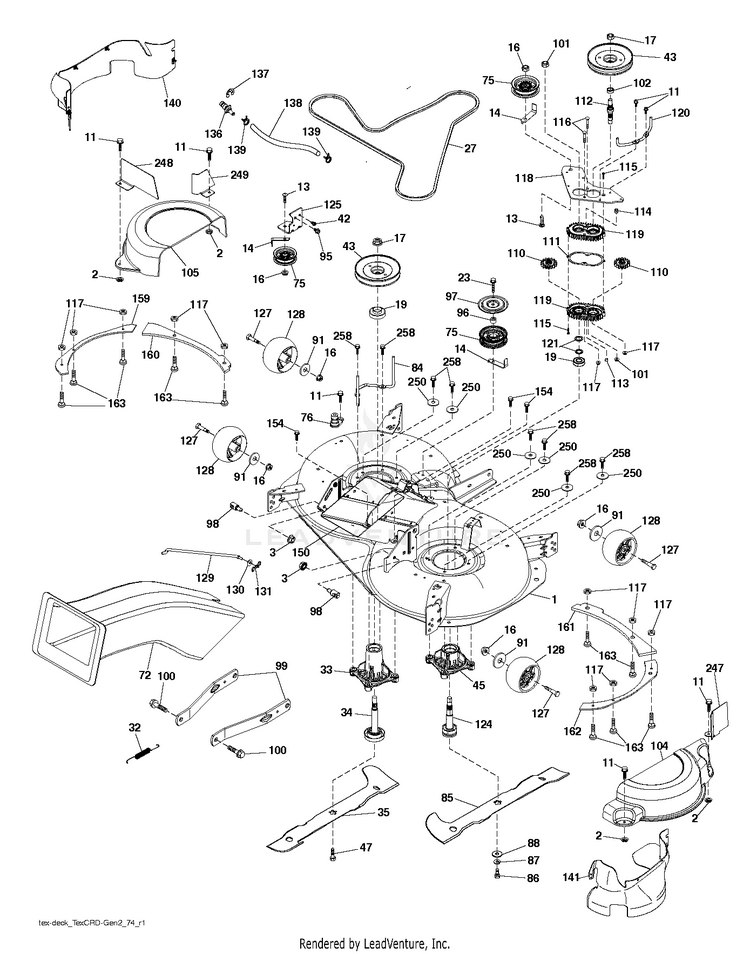

MOWER DECK / CUTTING DECK

...
...
121
WASHER.687.I.D.X.1 OD.X.062THK HUS-583514101
...
43
PULLEY.MANDREL.5.438 PD HUS-583568201
...
141
GUARD.ASSEMBLY.107.RH.FRENCH HUS-501579602
...
131
PIN.COTTER.5/16.BOW TI HUS-532194208
...
140
GUARD.ASSEMBLY.107.LH.FRENCH HUS-501580001
...
42
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
113
1/8-27.NPT.OIL.PLUG HUS-583533001
...
86
BOLT.3/8-24X1.25GR8. LHTHRD HUS-583117001
...
84
KEEPER.BELT.MANDREL PULLEY HUS-583567901
...
- -
MANDREL.INT.SPACER.NONGRS.REV (Includes Housing, Shaft Assembly, And Bearing Only - Pulley/Nut/Washer And Blade Bolt/Washers Not Included) HUS-587126105
...
136
WASHOUT.PORT.REMOTE.HOOKUP HUS-583544201
...
3
GSPW Nuts HUS-596135701
...
104
COVER.MANDREL.107.RH.GEN.2 HUS-581714001
...
- -
KIT.CRD.GEABOX.SVC Gear Case Kit. Use .75 oz. Shell 460 Oil. (Include Gear Output (key #110), Gasket Gearcase (key #111), Shaft Gearcase (key #112), Plug Oil (key #113), Vent Breather 1/8 NPT (key #114), Screw Torx (key #115), Gearcase Subasm (key #119). HUS-532448132
...
97
SHIELD.IDLER.MOWER.CRD. HUS-583119101
...
125
BRACKET.IDLER.CHASSIS.97.CRD HUS-583514801
...
34
KIT,MANDREL,NONGREASE,REVOL HUS-587820201
...
159
REINFORCE.PLATE.LHS.BOLT.431 HUS-585309505
...
47
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
116
Bolts HUS-594976601
...
- -
DECK.ASM.SVCX.107TCRD.EL.EZ CE HUS-587596201
...
137
RING CLIP HUS-812000029
...
13
GSPW Bolts HUS-596136101
...
87
Washers HUS-596238701
...
258
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
114
VENT.BREATHER.1/8 NPT HUS-588170501
...
27
BELT.ELECT.MOWER.DRIVE 97.8 EL HUS-532445887
...
162
REINFORCE.PLAT.RH.SD.BLT.X431 HUS-585316105
...
100
BOLT.SHOULDER HUS-532196539
...
249
GUARD.STEEL.CRD.MANDREL.COV.FR HUS-581263502
...
248
GUARD.STEEL.CRD.MANDREL.COV.FR HUS-581263602
...
130
GSPH HUS-596134901
...
72
CHUTE.SLOTTED.HOLES.TEX.CRD.II HUS-581454103
...
247
GUARD.STEEL.CRD.MANDREL.COV.FR HUS-581263402
...
119
GEAR.CASE.SUBASM. HUS-583527601
...
110
CRD.SPUR.GEAR HUS-587934801
...
99
SERVICE.KIT ARM.SUSPENSION.MOW HUS-529846401
...
102
SPACER BEARING HUS-532402511
...
88
WASHER.BLADE HUS-532140296
...
14
Keepers HUS-597024901
...
150
CHUTE LOWER.WLDT.107.CRDII HUS-596012302
...
33
KIT,MANDREL,NONGREASE,REVOL HUS-587820201
...
163
BOLT.CARRIAGE.1/4-20X3/4 HUS-582735501
...
32
SPRING.DRVE.107&97CM.ELEC.DECK HUS-583584001
...
76
1/2" BARB.DECK.WASHOUT.PORT HUS-583544301
...
154
SCREW.1/4-20X.50-0T30 HUS-583254901
...
96
SPACER.NORAM.CRD HUS-583261101
...
98
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
139
HOSE.3/8.CLAMP (2 2) HUS-532440742
...
161
REINFORCE.PLATE.RH.FRT.X431 HUS-585316005
...
2
PALNUT 1/4 HUS-532423062
...
111
GASKET.GEARCASE.97.CRD (2 2) HUS-583514001
...
19
BEARING.MANDREL.TOP.EXTENDED HUS-585323901
...
138
107.WASHOUT.PORT.HOSE (2 2) HUS-583591801
...
35
BLADE.107.LH.SINGLE.NON.QD HUS-581517901
...
11
SCREW.1/4-20X5/8 HUS-532137729
...
129
ROD.SWAY.97&107.CRDI&II HUS-583568101
...
120
KEEPER.RH.MANDREL.BELT HUS-583568001
...
112
SHAFT.CRD.GEARCASE.ADAPTER HUS-583571601
...
115
SCREW.TORX#10-24X1 HUS-583608901
...
128
WHEEL.GAUGE.RALLY HUS-589527301
...
117
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
1
DECK SVCX 107HP EZMUL 498 HUS-581928401
...
101
Hardware HUS-596040601
...
160
REINFORCE.PLATE.LH.FT.X431 HUS-585309405
...
105
COVER.MANDREL.107.LH.GEN.2 HUS-532444755
...
91
GSPH HUS-596134901
...
45
MANDREL.ASM.SHORT.LH/THD. HUS-581650501
...
23
BOLT HUS-599972501
...
75
CLG HUS-597025001
...
16
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
95
SCREW, 3/8-16X3/4 HUS-817000612
...
17
Nuts HUS-596134801
...
118
ARM.CLUTCHING.107.TEX.CRD HUS-583567701
...
250
WASHER HUS-819111212
...
127
Bolts HUS-596434404
...
124
MANDREL.ASM.SHORT.LH/THD. HUS-581650501
...
85
BLADE.107.RH.SINGLE.NON.QD HUS-581518001
