Husqvarna TC 238T - 96051019000 (2019-07) Riding Tractor

Model: TC 238T - 96051019000 (2019-07)

Back To Assemblies

Save Part Not Listed?
product name

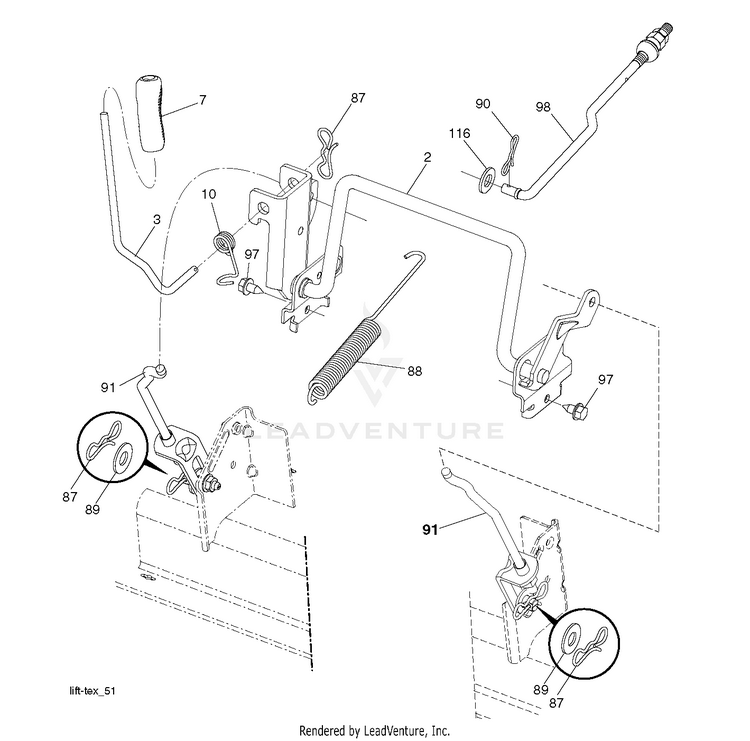

MOWER LIFT / DECK LIFT

...
...
116
Washers HUS-594976501
...
90
PIN.COTTER.5/16.BOW TI HUS-532194208
...
89
WASHER.CLEAR.ZINC HUS-819191912
...
2
DECK.LIFT.WELDMENT RH HUS-583515001
...
7
GRIP.HANDLE.LIFT.PVC.BLACK HUS-532411555
...
98
Links HUS-581506906
...
88
DECK.LIFTING.SPRING HUS-583580001
...
91
Links HUS-589464804
...
10
SPRING.TORSION.LIFT.HANDLE HUS-532196314
...
87
PIN.COTTER.7/16.BOW TI. HUS-532194209
...
97
Bolts HUS-596564001
...
3
Levers RH HUS-594018001
