Husqvarna TC 238T - 96051019000 (2019-07) Riding Tractor

Model: TC 238T - 96051019000 (2019-07)

Back To Assemblies

Save Part Not Listed?
product name

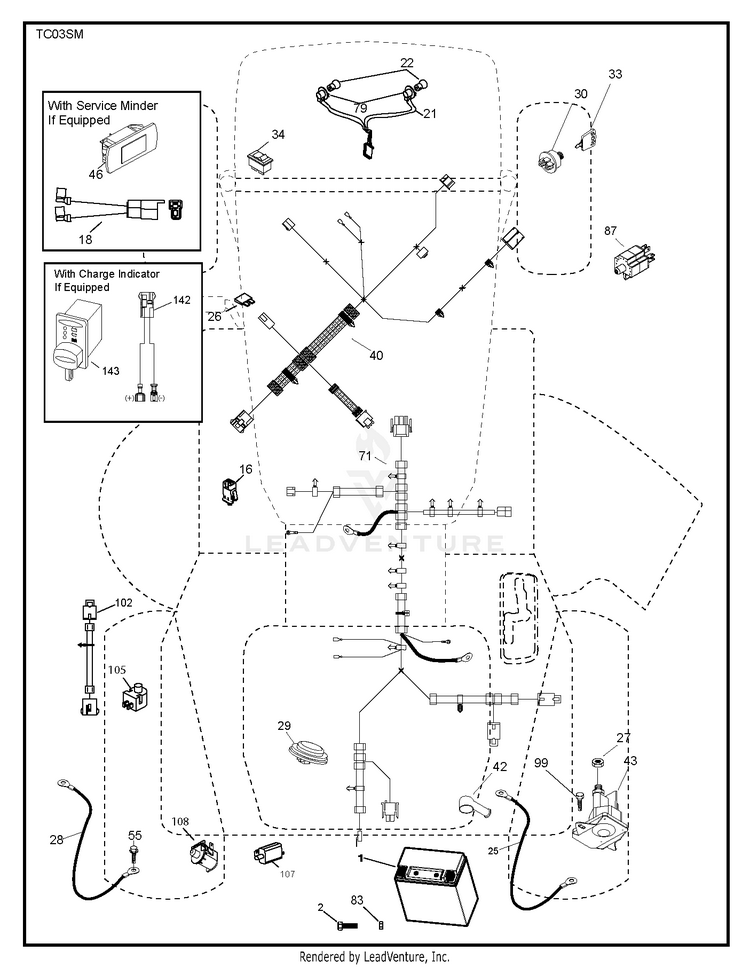

ELECTRICAL

...
...
2
Bolts HUS-596320101
...
34
SWITCH LT HUS-532110712
...
108
SWITCH.SNPMT.NCBT.CRD.MTL.BKPL HUS-589500301
...
1
AGM BATTERY HUS-536147701
...
27
Hardware HUS-596133601
...
40
HARN.DASH.CRD.CC.SQ.RDSTRT HUS-585849901
...
46
GUAGE.SRVCMNDR.HRMTR. HUS-594919101
...
105
REVERSE SWITCH HUS-532407568
...
22
LIGHTBULB HUS-532004152
...
29
SWITCH.SEAT.DELTA.OPC. HUS-532401545
...
28
CABLE.BATT.BLCK10.SLV.CRD2.5 HUS-589323601
...
107
SWITCH.FBI.CRD HUS-583100701
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
30
SWITCH.IGN.DELTA.W.LGH.ROS HUS-532193350
...
99
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
43
Solenoids HUS-582042802
...
102
HARNESS.JUMPER.TT.TEXCRD HUS-583555601
...
33
KEY.CHAIN.BLISTER.PACK.GEN.INT HUS-532411935
...
25
CABLE.BATT.8GA.RED9.CRD2.5 HUS-589323701
...
79
BULB HOLDER ASM. HUS-532175242
...
87
SWITCH.RAILMOUNT.NO-NC-NC HUS-583385701
...
55
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
21
HARNESS.LIGHT W/4152J BULBS HUS-532400252
...
83
NUT SQUARE M6, 11X8.5 ZPB HUS-594086501
...
42
COVER.TERMINAL.RED HUS-532154336
...
26
FUSE 20AMP HUS-532175158
...
71
HARNESS.CHASS.CRD.TEX.RDY.STRT HUS-587268701
