Husqvarna TC 238 - 96051016300 (2017-02) Tractors/Ride Mower

Model: TC 238 - 96051016300 (2017-02)

Back To Assemblies

Save Part Not Listed?
product name

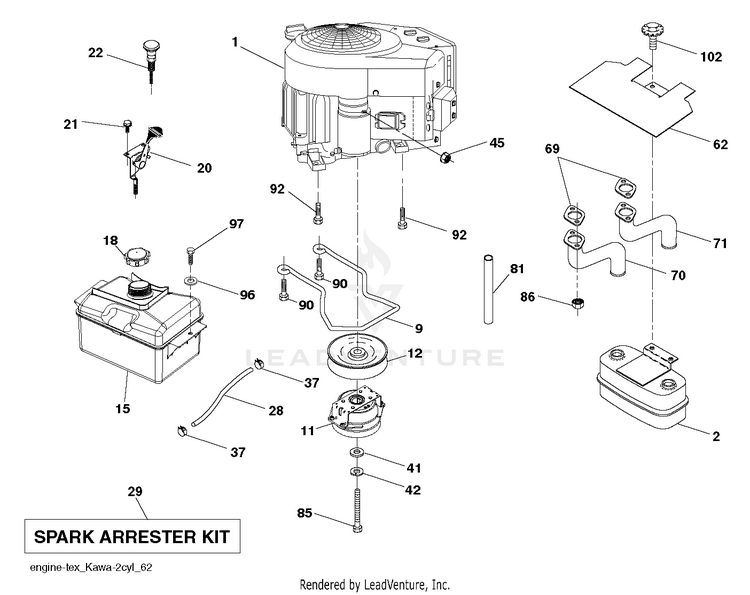

ENGINE

...
...
21
Screws HUS-596321701
...
11
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 HUS-587241601
...
37
HOSE CLAMP HUS-532123487
...
97
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
9
Keepers HUS-596501502
...
18
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
102
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
92
SCREW 3/8-16X1 HUS-817120616
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
22
CONTROL.CHOKE.ERGO.PUSH-IN.BLA HUS-532191596
...
71
EXHAUST.TUBE.RH.B&S.TWIN.INTEK HUS-581881001
...
2
MUFFLER.ASM.TWIN.MNTG.BRACKET HUS-589818702
...
20
CONTROL.THROTTLE.COBRA.BLACK HUS-532412165
...
70
EXHAUST.TUBE.LH.BS/TWIN HUS-581881101
...
12
PULLEY.ENGINE.TUFFTORQ HUS-532405097
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
15
TANK.ASSEMBL.2.5GAL.NON-EPA HUS-581290101
...
86
NUT.HEX.FLANGE.TOPLOCK HUS-532184362
...
85
BOLT.HEX.7/16-20X3.75.GR5.RED HUS-501606601
...
69
GASKET.MUFFLER HUS-532165391
...
90
SCREW 3/8-16X1 HUS-817000616
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
42
Washers HUS-596238901
...
41
WASHER HUS-532126197
...
28
HOSE.1/4".LOW.PERM.FUEL.LN.60" HUS-587044860
...
96
Washers HUS-596135301
...
1
ENGINE KAWA MODEL NO. FR600V-AS11 (581477001) HUS-000000000
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
