Husqvarna TC 238 - 96051013702 (2016-10) Tractors/Ride Mower

Model: TC 238 - 96051013702 (2016-10)

Back To Assemblies

Save Part Not Listed?
product name

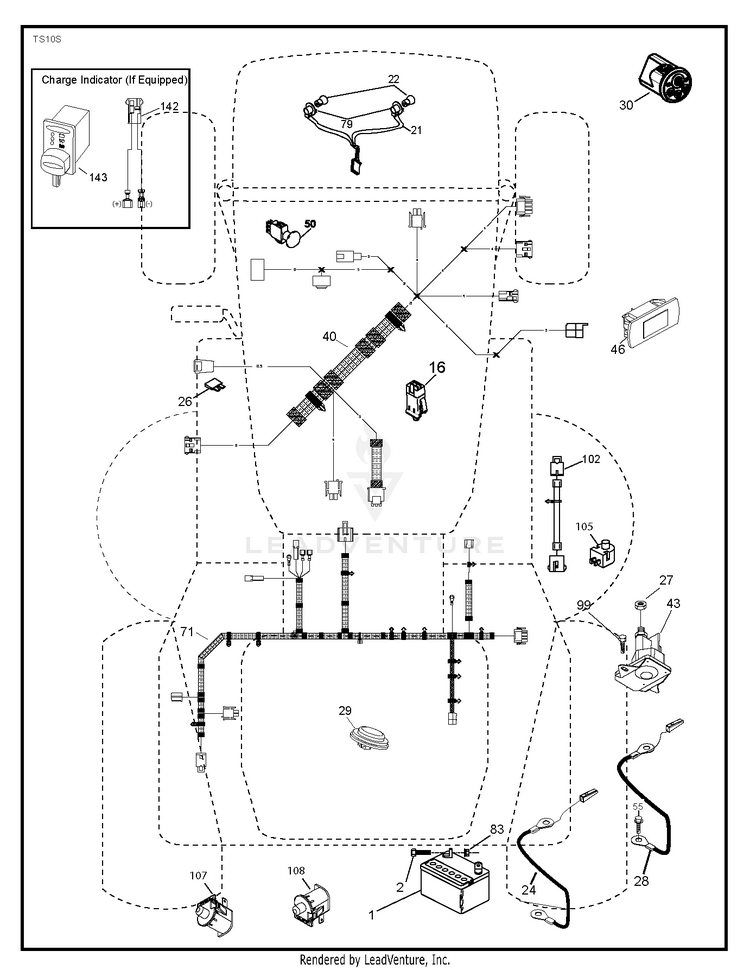

ELECTRICAL

...
...
50
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
102
HARNESS.JUMPER.TT.TEXCRD HUS-583555601
...
71
HARNESS CHAS,TEX,SIS,CRD SMART HUS-585216601
...
40
HARNESS.DASH.EL.SIS.RECT.CRD HUS-585216801
...
46
GUAGE.SRVCMNDR.HRMTR. HUS-594919101
...
105
REVERSE SWITCH HUS-532407568
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
28
CABLE.GROUND, BATT TO HARN HUS-585306903
...
99
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
108
PLUNGER SWITCH (COLOR:OLIVE) HUS-532160784
...
83
NUT SQUARE M6, 11X8.5 ZPB HUS-594086501
...
27
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
43
Solenoids HUS-582042802
...
1
AGM BATTERY HUS-536147701
...
21
HARNESS.LIGHT W/4152J BULBS HUS-532400252
...
24
CABLE.BATTERY.POASTIVE.HAM.POS HUS-585734302
...
30
KIT.SMRT.SWTCH.RPLMNT.MY14.CRD HUS-586590707
...
107
SWITCH.FBI.CRD HUS-583100701
...
2
Bolts HUS-596320101
...
29
SWITCH.SEAT.OPC.GRY.BUTTON/CAP HUS-581429302
...
26
FUSE 20AMP HUS-532175158
...
79
BULB HOLDER ASM. HUS-532175242
...
22
LIGHTBULB HUS-532004152
...
55
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
