Husqvarna TC 238 - 96051013700 (2015-03) Tractors/Ride Mower

Model: TC 238 - 96051013700 (2015-03)

Back To Assemblies

Save Part Not Listed?
product name

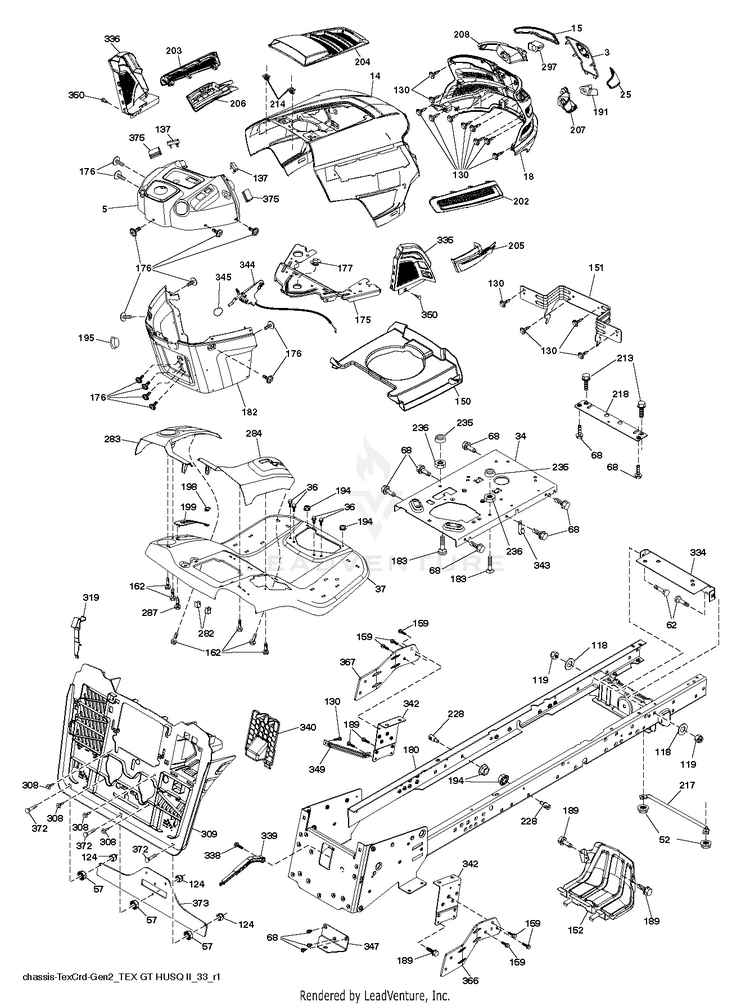

CHASSIS / FRAME

...
...
37
FENDER.TEX.SRD.CRD.BASE HUS-532441419
...
34
Engines HUS-593944402
...
68
Screws HUS-596030701
...
284
CONSOLE.PEDAL.HYDRO HUS-532447220
...
159
SCREW, 3/8-16X3/4 HUS-817000612
...
205
SIDE.TRIM.RH.GT.HUSQ.II RH HUS-532439730
...
366
BRACKET.RH.FRONT.BAGGER.BLACK HUS-581314602
...
287
SCREW 1/4X20 HUS-817600406
...
5
DASHBOARD.UPPER.ASM.GT2.498 HUS-590748821
...
177
BUSHING STEERING HUS-532195228
...
36
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
202
VENT.SIDE.RH.GT.HUSQ.II. RH HUS-532439728
...
62
Bolts HUS-596728201
...
130
Screws HUS-596321701
...
137
BUMPER DASH HUS-532407590
...
57
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
203
VENT.SIDE.LH.GT.HUSQ.II.498 LH HUS-532439727
...
208
HEADLIGHT.CUP.BEZEL.HUS.GT2.LH LH HUS-587464501
...
52
Hardware HUS-596040501
...
236
NUT.CENTERLOCK.5/16- HUS-873930500
...
340
BACKPLATE.ASM.TXCRDII.ANTIROTA HUS-581328906
...
283
CONSOLE.DECKLIFT.CRDII.498 HUS-532447212
...
152
SHIELD.BROWNING.PNT.GT.V2 HUS-532439870
...
162
Screws HUS-596134101
...
14
KIT.HOOD.ASM.HUSQ.GT.TEX.668 HUS-587483301
...
217
ROD.PIVOT.HOOD HUS-532409167
...
213
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
- -
TRACTOR BUMPER KIT ALL MODELS HUS-531307007
...
198
INDICATOR.DECK.LIFT.RED HUS-532441552
...
119
Nuts HUS-596322601
...
347
HITCH.TOW.TEX.CRD.GEN.2 HUS-583566701
...
18
Grilles HUS-597247201
...
228
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
349
LRVB.FUEL.TANK.SUPPORT.BRACKET HUS-583509701
...
319
LEVER.BAG.CRDII.ANTIROTATION HUS-581313906
...
308
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
3
APPLIQUE.SUBASM.GT.HUSQ.II HUS-532444481
...
372
BOLT CUP HEAD SQUARE NECK 1/4- HUS-592807801
...
- -
PLUG.LIGHT.SWITCH.GREY HUS-586297601
...
373
REINFORCEMENT BACKPLATE. CRD B HUS-586299803
...
189
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
343
CLIP HUS-582671501
...
150
AIR.DUCT.GTV.BLACK HUS-532439774
...
336
COVER-LH.LOWER.DASH.GT2.BLACK HUS-532445309
...
- -
PLUG.HOLE.DASH.LOWER.12V.BLK HUS-532404137
...
344
CONTROL.EZ.MULCH.TEX/CRD HUS-583536701
...
194
GSPW Nuts HUS-596135701
...
15
LENS.HEADLIGHT.LH.GTII.2011 LH HUS-532439733
...
339
SUBASM.BAGGER.FULL.LVER.(2 2) HUS-583510301
...
335
COVER.LOWER.DASH.RH.BLACK HUS-532448204
...
309
Plates HUS-597316401
...
118
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
175
PLATE.PNT.CROSSMEMBER.HUSQ/PRE HUS-590607702
...
180
WELDMENT.CHASSIS.TEX.CRD.GEN.2 HUS-583902701
...
199
PLATE.DECKLIFT.SRD HUS-583371401
...
176
SCREW.#10-24X5/8.RN.QU HUS-532400776
...
350
CLIP.X-MAS.TREE HUS-532445143
...
191
INSERT.REFLECTIVE.RH.HUSQ.GTII HUS-532437455
...
297
INSERT.REFLECTIVE.LH.HUSQ.GTII HUS-532437456
...
282
CLIP.RETAINER.CONSOLE.LT.HUSQ HUS-532414110
...
214
CLIP.RETAINER.TINNER. HUS-532199145
...
342
SUPPORT.PNT.FENDER.CRD.TEX HUS-582826802
...
195
PLUG.HOLE.DASH.LOWER.12V.BLK HUS-532404137
...
334
BRACKET.ENGINE. HUS-583564401
...
151
SERVICE KIT PIVOT BRACKET BRAC HUS-531077401
...
338
BOLT.SHOULDER.5/16-18.X.88 HUS-583510201
...
375
BUMPER CLIP-ON. DASH 1" HUS-586908201
...
183
Screws HUS-595305701
...
182
DSH.LWR.COM.IN-HSE.EZ.MLCH.SLT HUS-583536501
...
367
BRACKET.LH.FRONT.BAGGER.BLACK HUS-581314502
...
25
LENS.HEADLIGHT.RH.GTII.2011 RH HUS-532443385
...
218
X-PIECE.HOOD.STOP.NON/ HUS-532196395
...
206
SIDE.TRIM.LH.GT.HUSQ.II.GRAY LH HUS-532439729
...
235
Spacers HUS-596564201
...
124
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
207
HEADLIGHT.CUP.BEZEL.HUS.GT2.RH RH HUS-587464801
...
345
KNOB - SHIFT HUS-539132624
...
204
VENT.TOP.ASM.HUSQ.GT2 HUS-587485801
