Husqvarna TC 238 - 96051012600 (2014-08) Tractors/Ride Mower

Model: TC 238 - 96051012600 (2014-08)

Back To Assemblies

Save Part Not Listed?
product name

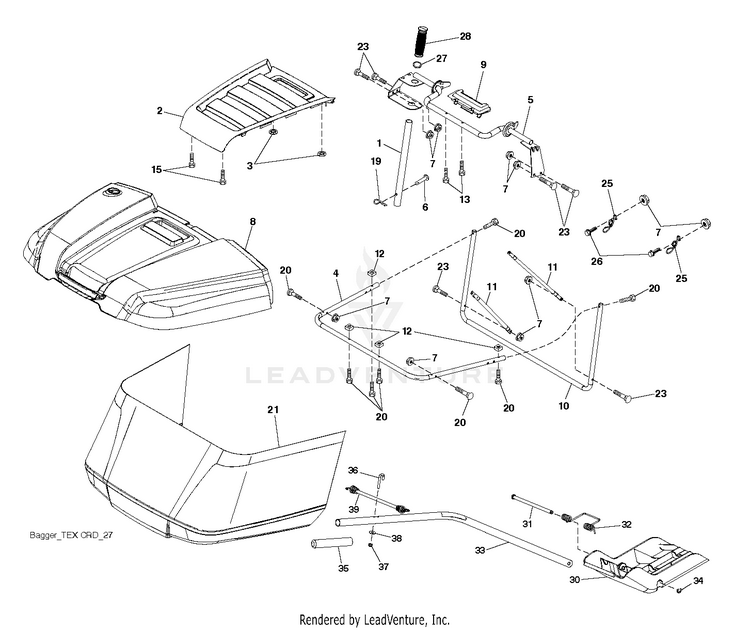

BAGGER

...
...
6
RIVET,DRILLED HUS-532126875
...
27
GROMMET.RUBBER.SRD HUS-583387201
...
12
NUT.SQUARE.1/4 HUS-583391701
...
30
PLUG.97CM.TEX.CRD.MULCH HUS-583519701
...
34
E-RING.5/16" HUS-532437988
...
37
LOCKNUT HUS-532069180
...
38
WASHER HUS-819070818
...
13
SCREW.1/4X1.150.HXWSH HUS-583391201
...
25
SPRING.LATCH.BAGGER.SRD (3 2) HUS-583389801
...
1
SERVICE KIT TUBE TUBE.HANDLE.B HUS-531151701
...
26
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
4
BAGGER SWAGE TUBE HANDLE ASSY HUS-579785402
...
9
INSERT.HANDLE.BAGGER.SRD HUS-583365801
...
7
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
11
BRACE.SIDE.TUBE.TEX/CRD.BLACK HUS-583511601
...
3
NUT.PUSH.156 HUS-583343001
...
32
SPRING.DOUBLE.TORSION.SPRING HUS-584455101
...
19
PIN.COTTER.5/16.BOW TI HUS-532194208
...
10
FRAME FRONT TUBE TEX CRD BLACK HUS-585384501
...
31
PIN.HINGE HUS-583507401
...
33
SHAFT.TEX.CRD.MULCH.PLUG HUS-583531101
...
39
BUNGEE.TEX.CRD HUS-583539501
...
23
BOLT HUS-872040410
...
8
SRD.BAGGER.TOP.SUB.ASM HUS-583503801
...
35
GRIP.MULCH.PLUG.HAND. HUS-583539101
...
5
FRAME.ASM.TOP.BAGGER.SRD HUS-583365901
...
36
Bolts HUS-594093401
...
28
GRIP.HANDLE.BLACK HUS-532165787
...
20
SCREW.HEXCAP.1/4X-20X1.500 HUS-501406601
...
21
SUBASM.TCRD2 GEN.HUSQ.BAGGER HUS-583595201
...
15
SCREW,#8.FLAT.HEAD.DRILL.TIP HUS-583392101
...
2
APPLIQUE.TOP.BAG.SRD.ORANGE HUS-532441358
