Husqvarna TC 142 - 96051012500 (2014-08) Tractors/Ride Mower

Model: TC 142 - 96051012500 (2014-08)

Back To Assemblies

Save Part Not Listed?
product name

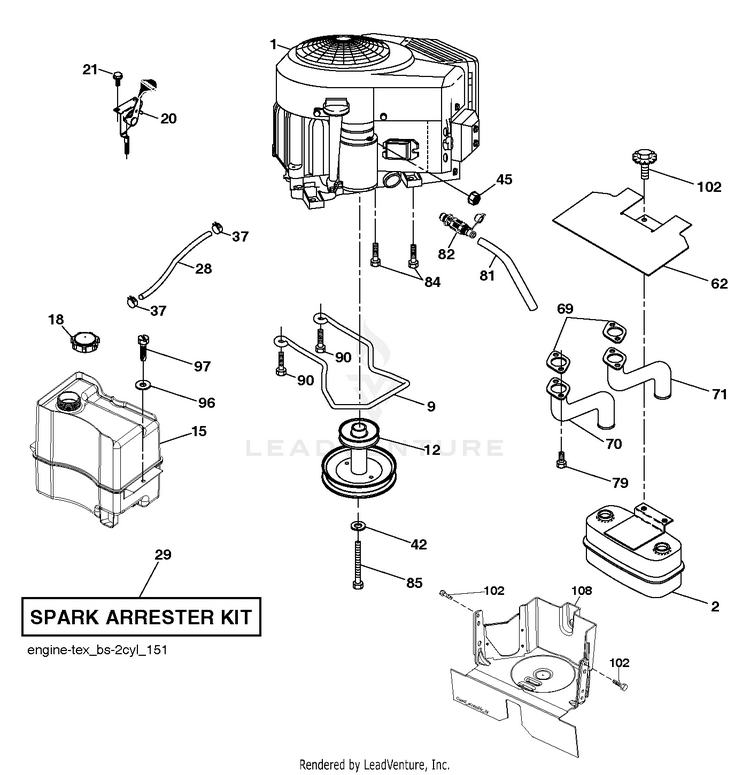

ENGINE

...
...
97
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
2
MUFFLER.ASM.TWIN.MNTG.BRACKET HUS-589818702
...
37
HOSE CLAMP HUS-532123487
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
70
EXHAUST.TUBE.LH.BS/TWIN HUS-581881101
...
12
ENGINE.PULLEY HUS-586478501
...
96
Washers HUS-596135301
...
102
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
90
SCREW 3/8-16X1 HUS-817000616
...
9
Keepers HUS-596501502
...
20
THROTTLE CABLE HUS-587242504
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
85
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
15
TANK.ASSEMBL.2.5GAL.NON-EPA HUS-581290101
...
69
GASKET.MUFFLER HUS-532165391
...
82
VALUE.OIL.DRAIN HUS-532428287
...
42
Washers HUS-596238901
...
18
CAP.ASM.FUEL.2.25"TOP.TURN HUS-532441462
...
84
SCREW.3/8-16 HUS-817060620
...
21
Screws HUS-596321701
...
79
Screws HUS-596134202
...
108
COVER ENGINE PULLEY COVER WITH HUS-587179510
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
1
B&S Model No. 40N777-0009-B1 (582593401) HUS-000000000
...
71
EXHAUST.TUBE.RH.B&S.TWIN.INTEK HUS-581881001
