Husqvarna TC 138 - 96051012402 (2015-07) Tractors/Ride Mower

Model: TC 138 - 96051012402 (2015-07)

Back To Assemblies

Save Part Not Listed?
product name

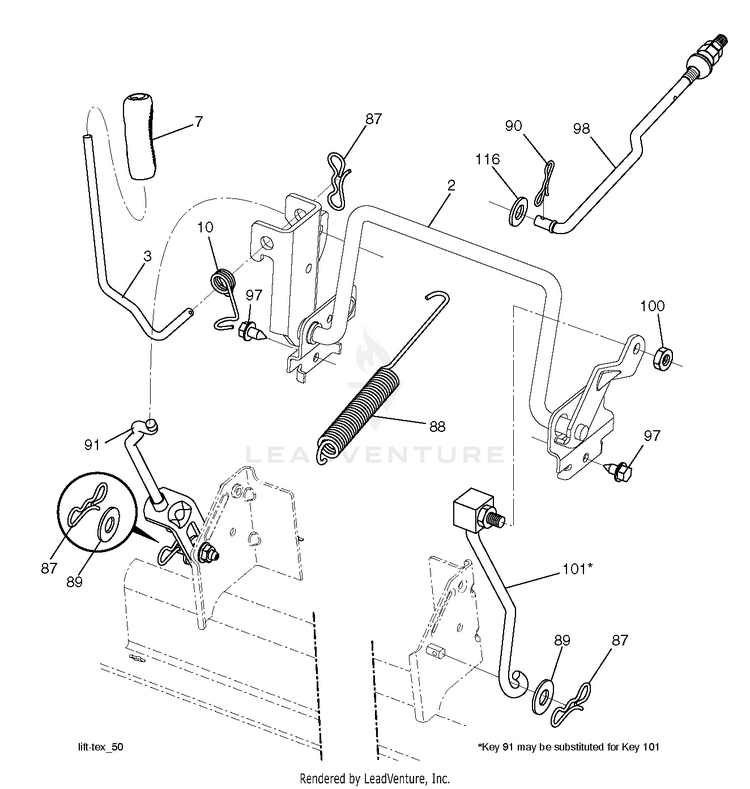

MOWER LIFT / DECK LIFT

...
...
3
Levers HUS-594018001
...
87
PIN.COTTER.7/16.BOW TI. HUS-532194209
...
2
DECK.LIFT.WELDMENT HUS-583515001
...
7
GRIP.HANDLE.LIFT.PVC.BLACK HUS-532411555
...
101
LINK.ASM.LIFT.FIXE.38/42/46" HUS-532407003
...
10
SPRING.TORSION.LIFT.HANDLE HUS-532196314
...
116
Washers HUS-594976501
...
98
Links HUS-581506903
...
91
Links HUS-589464807
...
88
DECK.LIFTING.SPRING HUS-583580001
...
90
PIN.COTTER.5/16.BOW TI HUS-532194208
...
89
WASHER.CLEAR.ZINC HUS-819191912
...
100
Nuts HUS-596322601
...
97
Bolts HUS-596564001
