Husqvarna TC 138 - 96051012401 (2015-05) Tractors/Ride Mower

Model: TC 138 - 96051012401 (2015-05)

Back To Assemblies

Save Part Not Listed?
product name

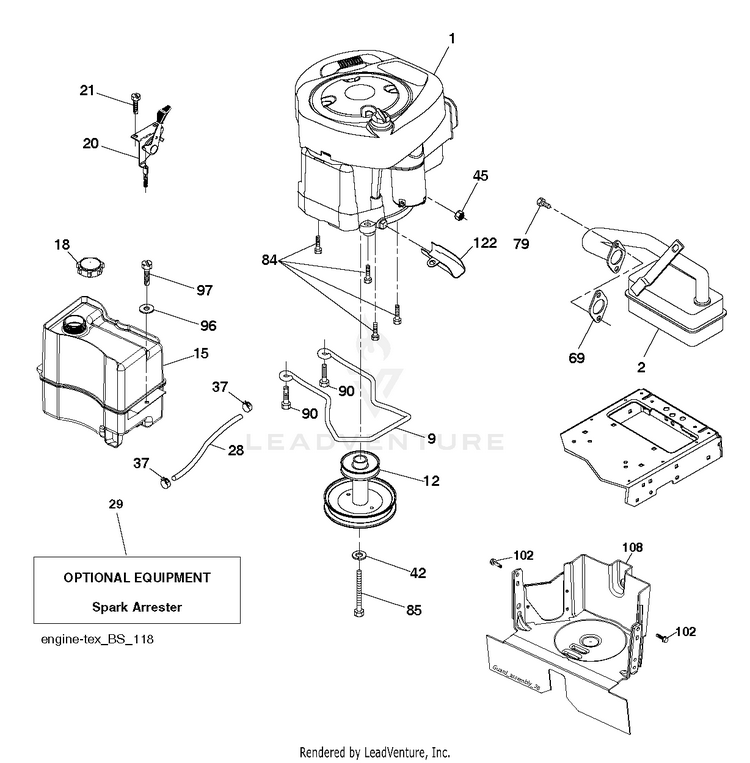

ENGINE

...
...
12
ENGINE.PULLEY HUS-586478501
...
21
Screws HUS-596321701
...
1
B&S MODEL 31R577-0027-B1 (587333501) HUS-000000000
...
15
FUEL.TANK.ASM.NON-EPA HUS-581289901
...
102
Screws HUS-593337601
...
9
Keepers HUS-596501502
...
96
Washers HUS-596135301
...
42
Washers HUS-596238901
...
37
HOSE CLAMP HUS-532123487
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
79
Screws HUS-596134201
...
84
SCREW.3/8-16 HUS-817060620
...
18
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
122
EXTENSION DRAIN OIL HUS-532421922
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
20
CONTROL.TH/CK.C.BLACK HUS-532176636
...
69
GASKET.ENG.1.313 ID.TIN PLATED HUS-532272293
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
85
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
97
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
90
SCREW 3/8-16X1 HUS-817000616
...
2
MUFFLER.LT.BRIGGS.14HP.IC/OHV HUS-532137352
...
108
COVER ENGINE PULLEY COVER WITH HUS-587179510
