Husqvarna TC 130 - 96051012301 (2017-05) Tractors/Ride Mower

Model: TC 130 - 96051012301 (2017-05)

Back To Assemblies

Save Part Not Listed?
product name

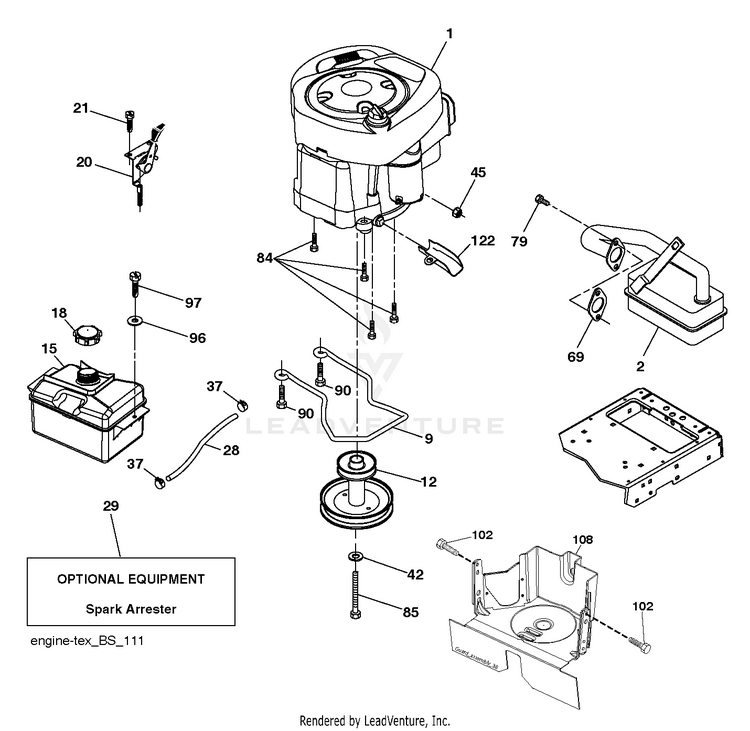

ENGINE

...
...
21
Screws HUS-596321701
...
15
FUEL.TANK.ASM.NON-EPA HUS-581289901
...
85
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
69
GASKET.ENG.1.313 ID.TIN PLATED HUS-532272293
...
42
Washers HUS-596238901
...
90
SCREW 3/8-16X1 HUS-817000616
...
122
EXTENSION DRAIN OIL HUS-532421922
...
97
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
1
Engine BS Model No. 21R777-0100-B5 (597359501) HUS-000000000
...
37
HOSE CLAMP HUS-532123487
...
102
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
18
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
96
Washers HUS-596135301
...
84
SCREW.3/8-16 HUS-817060620
...
9
KEEPER.BELT.ENG.3.25"2BOLT.PNT HUS-582540302
...
108
COVER ENGINE PULLEY COVER WITH HUS-587179512
...
20
THROTTLE CABLE HUS-587242604
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
12
PULLEY.ENG.CL.MECH.SLVR.LT/YT HUS-532140186
...
2
MUFFLER.B&S.MODEL.21.11HP.OHV HUS-532179758
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
79
Screws HUS-596134201
