Husqvarna TC 130 - 96051012301 (2017-05) Tractors/Ride Mower

Model: TC 130 - 96051012301 (2017-05)

Back To Assemblies

Save Part Not Listed?
product name

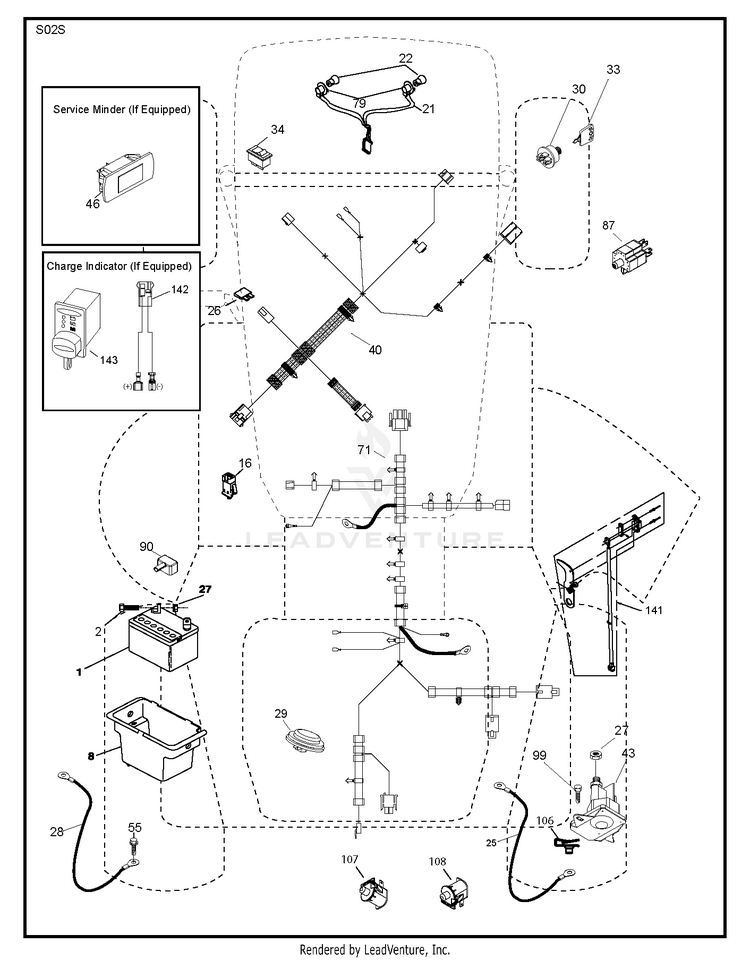

ELECTRICAL

...
...
71
HARNESS.CHASS.SRD.RDY.START HUS-501133401
...
33
KEY.CHAIN.BLISTER.PACK.GEN.INT HUS-532411935
...
142
CTEK CHARGE PORT W/HARNESS HUS-583593501
...
8
BOX.BATTERY.LT/SRD HUS-583377701
...
27
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
21
HARNESS.LIGHT W/4152J BULBS HUS-532400252
...
22
LIGHTBULB HUS-532004152
...
25
CABLE.BATTERY.20.RED.8 AWG HUS-532416694
...
106
1/4-20 U NUT HUS-532174814
...
79
BULB HOLDER ASM. HUS-532175242
...
40
HARN.DASH.CRD.CC.SQ.RDSTRT HUS-585849901
...
43
Solenoids HUS-582042802
...
55
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
90
COVER.TERMINAL.BATTERY HUS-532435395
...
143
CTEK CHARGE PORT W/HARNESS HUS-583593501
...
28
CABLE.GROUND.REAR.BATTERY.8GA HUS-583390701
...
30
SWITCH.IGN.DELTA.W.LGH.ROS HUS-532193350
...
29
SWITCH.SEAT.DELTA.OPC. HUS-532401545
...
87
SWITCH.RAILMOUNT.NO-NC-NC HUS-583385701
...
108
SWITCH.SNAPMOUNT.NC HUS-532421062
...
26
FUSE 20AMP HUS-532175158
...
99
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
107
SWITCH.SNAPMOUNT.NO.#2 HUS-532421061
...
2
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
34
SWITCH LT HUS-532110712
...
141
KIT T2.ROS 71677 HUS-532416977
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
1
BATTERY.DRY.30.AMP HUS-532123899
