Husqvarna TC 130 - 96051012301 (2017-05) Tractors/Ride Mower

Model: TC 130 - 96051012301 (2017-05)

Back To Assemblies

Save Part Not Listed?
product name

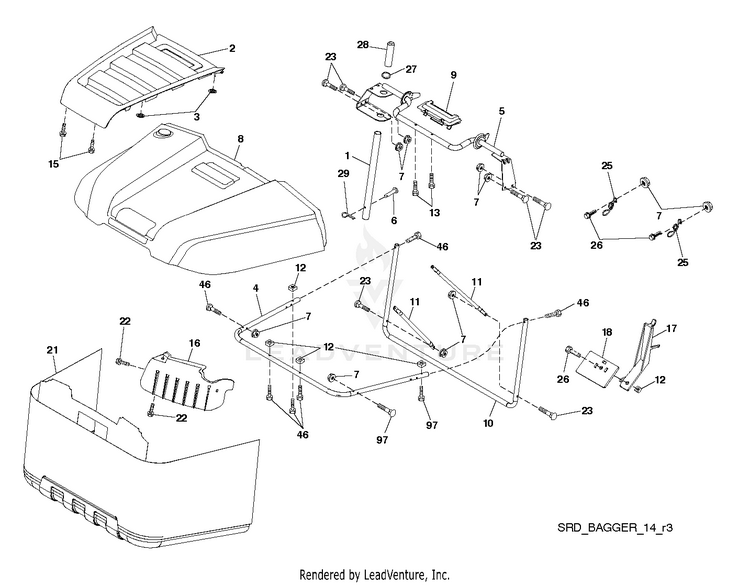

BAGGER

...
...
17
LEVER.BAGGER.FULL.SRD.BLACK HUS-532421749
...
1
SERVICE KIT TUBE TUBE.HANDLE.B HUS-531151701
...
18
PADDLE.BAGGER.FULL.SRD.BLACK HUS-583391001
...
4
BAGGER SWAGE TUBE HANDLE ASSY HUS-579785402
...
2
APPLIQUE.TOP.BAG.SRD.ORANGE HUS-532441358
...
7
SRD.BAGGER.TOP.SUB.ASM HUS-583503801
...
27
GROMMET.RUBBER.SRD HUS-583387201
...
5
FRAME.ASM.TOP.BAGGER.SRD HUS-583365901
...
25
SPRING.LATCH.BAGGER.SRD (3 2) HUS-583389801
...
21
BAG.ASM.BAGGER.SRD.HUSQVA.GREY HUS-583825601
...
3
NUT.PUSH.156 HUS-583343001
...
23
BOLT HUS-872040410
...
29
PIN.COTTER.5/16.BOW TI HUS-532194208
...
8
SRD.BAGGER.TOP.SUB.ASM HUS-583503801
...
9
INSERT.HANDLE.BAGGER.SRD HUS-583365801
...
10
FRAME.FRONT.SRD.BAGGER HUS-532417190
...
22
Screws HUS-596134101
...
15
SCREW,#8.FLAT.HEAD.DRILL.TIP HUS-583392101
...
46
SCREW.HEXCAP.1/4X-20X1.500 HUS-501406601
...
12
NUT.SQUARE.1/4 HUS-583391701
...
97
SCREW.TORX.BUTN.HD.1/4-20-1.5" HUS-590105701
...
11
TUBING.BRACE.BAGGER.SRD.BLACK HUS-532417188
...
26
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
16
DEFLECTOR.BAGGER.SRD HUS-532421566
...
28
GRIP.HANDLE.BLACK HUS-532165787
...
13
SCREW.1/4X1.150.HXWSH HUS-583391201
...
6
RIVET,DRILLED HUS-532126875
