Husqvarna TC 130 - 96051012300 (2014-07) Tractors/Ride Mower

Model: TC 130 - 96051012300 (2014-07)

Back To Assemblies

Save Part Not Listed?

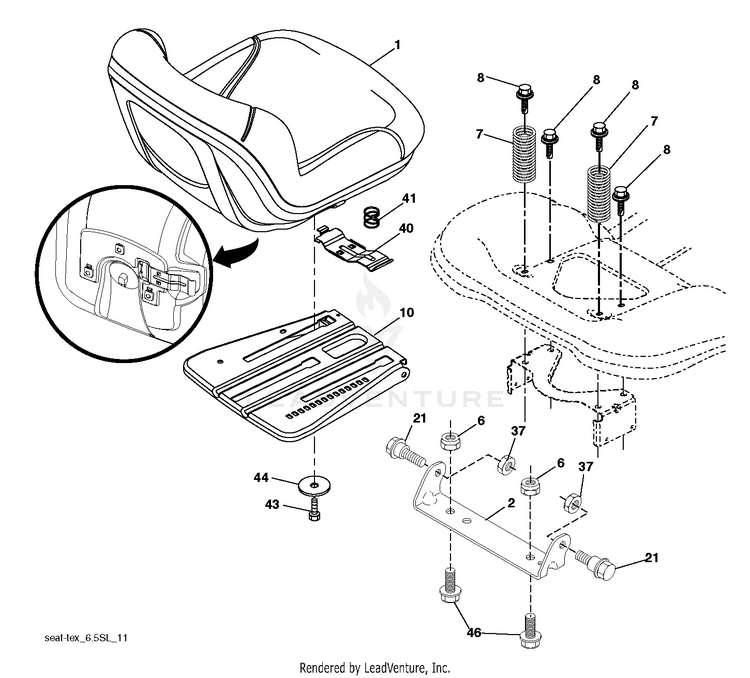

product name

SEAT

...
...
7
SPRING.COMPRESSION.SEAT.BLACK HUS-587613301
...
43
BOLT HUS-874760612
...
41
SPRING.LATCH.SEAT.TEX HUS-532198200
...
21
BOLT.5/16-18X5/8.SHOULDER HUS-587907801
...
1
SEAT.TH110.HUSQ.TEX.GREY HUS-583544801
...
44
WASHER.13/32x2 3/8x12GA HUS-583789501
...
46
BOLT.3/8-16X1;1.25OD.WSHR.SEMS HUS-588090401
...
40
Handles HUS-595088102
...
37
Hardware HUS-596040501
...
10
KIT.PLATE.SEAT HUS-596768801
...
2
BRKT.PIVOT.FENDER HUS-532180166
...
6
Nuts HUS-596322601
...
8
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
