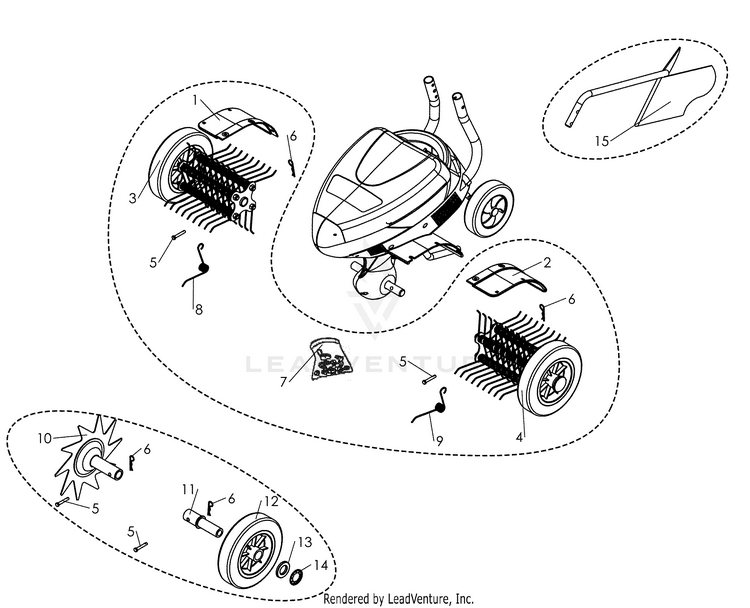

Husqvarna TB 1000 (2009-01) Tiller Accessory

Model: TB 1000 (2009-01)

Back To Assemblies

Save Part Not Listed?
product name

Repair Parts

...
...
1
FENDER Aile protection droite Orange RAL 2009 HUS-522993001
...
2
FENDER Aile de protection gauche Orange RAL 2009 HUS-522993101
...
3
LAWNRAKE Emousseur Droit Méca/MB FUN/MBE HUS-510371001
...
4
LAWNRAKE Emousseur Gauche Méca/MB FUN/MBE HUS-510371201
...
5
PIN Goupille 8x37 Z HUS-510371401
...
6
COTTER PIN Goupille Béta 2 Z HUS-519651220
...
7
SCREW KIT Pochette visseries tôles additionnelles HUS-510372101
...
8
LAWNRAKE Pochette ressort droit emousseur Méca/MB FUN (Qté.10) HUS-510371101
...
9
SPRING Pochette ressort gauche Emousseur MECA/MB FUN (Qté.10) HUS-510371301
...
10
EDGER ATTACHMENT Outil coupe boudure Noir HUS-510371901
...
11
EDGER Moyeu roue coupe bordure HUS-510371501
...
12
WHEEL Roue Ø200 ales 25 HUS-510371601
...
13
WASHER Rondelle 25x45x4z HUS-510370501
...
14
WASHER Rondelle starlock Ø25 HUS-510370601
...
15
PLOUGH Butteur MBE Noir HUS-525344701
