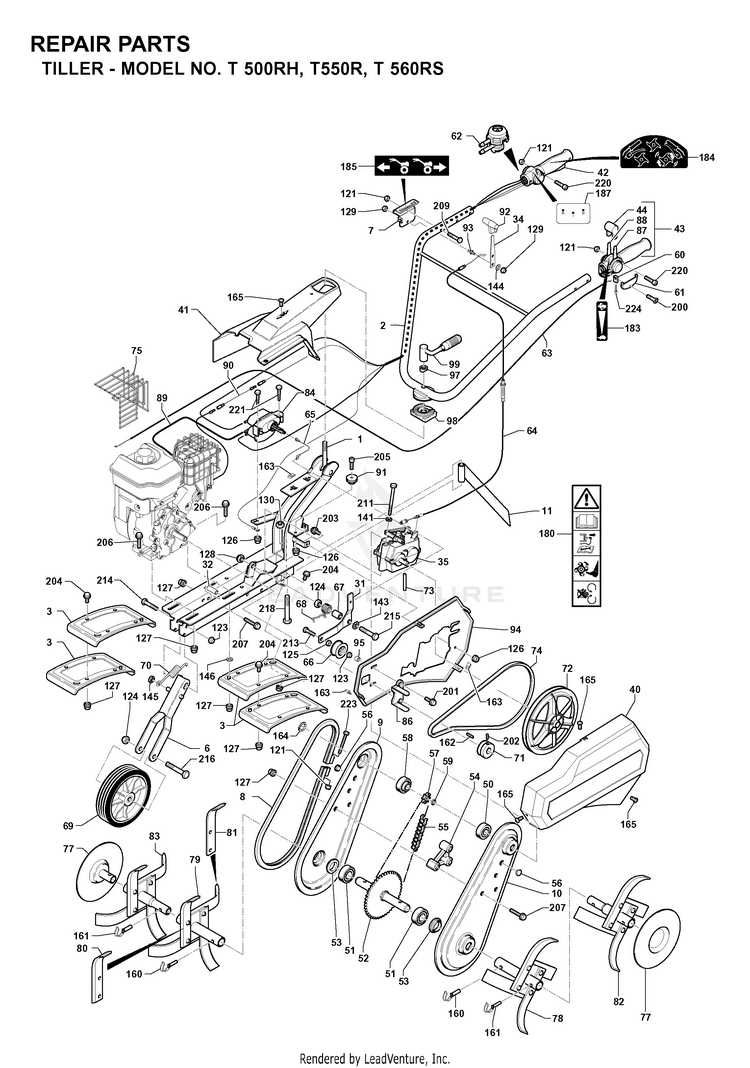

Husqvarna T550 R (2004-01) Cultivator/Tiller

Model: T550 R (2004-01)

Save Part Not Listed?
product name

PRODUCT COMPLETE

...
...
62
NEEDS DESCRIPTION HUS-531008248
...
42
NEEDS DESCRIPTION HUS-531008243
...
220
BOLT HUS-519653026
...
215
SCREW HUS-519653454
...
201
SCREW HUS-519653412
...
66
PULLEY HUS-519653457
...
184
LABEL HUS-519653085
...
53
NEEDS DESCRIPTION HUS-531008576
...
50
BEARING HUS-519002631
...
125
NUT HUS-519653456
...
207
NEEDS DESCRIPTION HUS-519653463
...
531008586
NEEDS DESCRIPTION HUS-531008586
...
77
NEEDS DESCRIPTION HUS-519653362
...
7
NEEDS DESCRIPTION HUS-531008517
...
160
PIN HUS-519653093
...
94
NEEDS DESCRIPTION HUS-531008235
...
82
NEEDS DESCRIPTION HUS-531008522
...
70
SPRING HUS-519650260
...
163
CLIP HUS-519653425
...
44
NEEDS DESCRIPTION HUS-531008245
...
1
NEEDS DESCRIPTION HUS-531008581
...
80
NEEDS DESCRIPTION HUS-531008547
...
56
NEEDS DESCRIPTION HUS-519653391
...
58
NEEDS DESCRIPTION HUS-531008546
...
55
DRIVE CHAIN HUS-519653009
...
221
NEEDS DESCRIPTION HUS-531008255
...
71
NEEDS DESCRIPTION HUS-531008229
...
200
SCREW HUS-531008252
...
75
NEEDS DESCRIPTION HUS-531008582
...
9
HOUSING HUS-519653041
...
6
SUPPORT HUS-519653460
...
99
NEEDS DESCRIPTION HUS-531008237
...
60
NEEDS DESCRIPTION HUS-531008246
...
205
NEEDS DESCRIPTION HUS-531008253
...
180
NEEDS DESCRIPTION HUS-531008540
...
531008250
NEEDS DESCRIPTION HUS-531008250
...
92
HANDLE HUS-519653091
...
98
SPACER HUS-519653415
...
145
NEEDS DESCRIPTION HUS-519653462
...
2
NEEDS DESCRIPTION HUS-531008241
...
72
PULLEY HUS-519653060
...
165
SCREW HUS-519653426
...
68
SPRING HUS-519653090
...
185
LABEL HUS-519653084
...
11
NEEDS DESCRIPTION HUS-531008206
...
531008585
NEEDS DESCRIPTION HUS-531008585
...
93
NEEDS DESCRIPTION HUS-531008518
...
8
RING HUS-519653043
...
161
PIN HUS-519653360
...
65
WIRE HUS-519653409
...
531008584
NEEDS DESCRIPTION HUS-531008584
...
141
WASHER HUS-519653450
...
78
NEEDS DESCRIPTION HUS-531008520
...
69
WHEEL HUS-519653259
...
146
WASHER HUS-519653097
...
59
SPACER HUS-519653094
...
202
SCREW HUS-519653020
...
162
SCREW HUS-519653021
...
81
NEEDS DESCRIPTION HUS-531008548
...
206
SCREW HUS-519653413
...
204
NEEDS DESCRIPTION HUS-531008202
...
128
NEEDS DESCRIPTION HUS-531008221
...
95
NEEDS DESCRIPTION HUS-531008216
...
91
ROLLER HUS-519653052
...
123
NUT HUS-519653458
...
61
NEEDS DESCRIPTION HUS-531008247
...
214
SCREW HUS-519653046
...
43
NEEDS DESCRIPTION HUS-531008244
...
41
NEEDS DESCRIPTION HUS-531008225
...
31
ARM Assy including: 31,124, 67, 143, 215, 213, 125, 66, 123 HUS-519653407
...
519653081
NEEDS DESCRIPTION HUS-519653081
...
223
BOLT HUS-519653010
...
183
NEEDS DESCRIPTION HUS-531008251
...
88
NEEDS DESCRIPTION HUS-531008258
...
121
Blocking nut M 6 Z HUS-732261601
...
63
NEEDS DESCRIPTION HUS-531008583
...
187
DECAL HUS-519653103
...
209
SCREW HUS-519653437
...
124
HUS-725255051
...
3
GUARD HUS-519650281
...
52
GEAR HUS-519653007
...
10
HOUSING HUS-519653042
...
73
SHAFT HUS-519653067
...
79
NEEDS DESCRIPTION HUS-531008521
...
86
NEEDS DESCRIPTION HUS-531008577
...
129
NUT HUS-519653411
...
34
NEEDS DESCRIPTION HUS-531008519
...
224
NEEDS DESCRIPTION HUS-531008256
...
83
NEEDS DESCRIPTION HUS-531008523
...
203
SCREW HUS-519653435
...
64
CABLE HUS-519653055
...
54
BRACKET HUS-519653006
...
89
HOSE HUS-519653416
...
57
PINION HUS-519653057
...
51
BEARING HUS-519653053
...
74
BELT HUS-519653058
...
126
NUT HUS-519653432
...
67
ROD HUS-519653451
...
130
NEEDS DESCRIPTION HUS-531008578
...
164
RETAINING RING HUS-519653466
...
144
WASHER HUS-519653449
...
218
NEEDS DESCRIPTION HUS-531008220
...
531008236
NEEDS DESCRIPTION HUS-531008236
...
35
GEAR HUS-519653092
...
211
SCREW HUS-519653045
...
40
COVER HUS-519653423
...
213
SCREW HUS-519653455
...
216
NEEDS DESCRIPTION HUS-519653131
...
127
NUT HUS-519653430
...
97
SPACER HUS-519653414
...
143
WASHER HUS-519653453
...
32
SPACER HUS-519653424
...
87
NEEDS DESCRIPTION HUS-531008257
...
84
NEEDS DESCRIPTION HUS-531008249
...
90
NEEDS DESCRIPTION HUS-531008233
