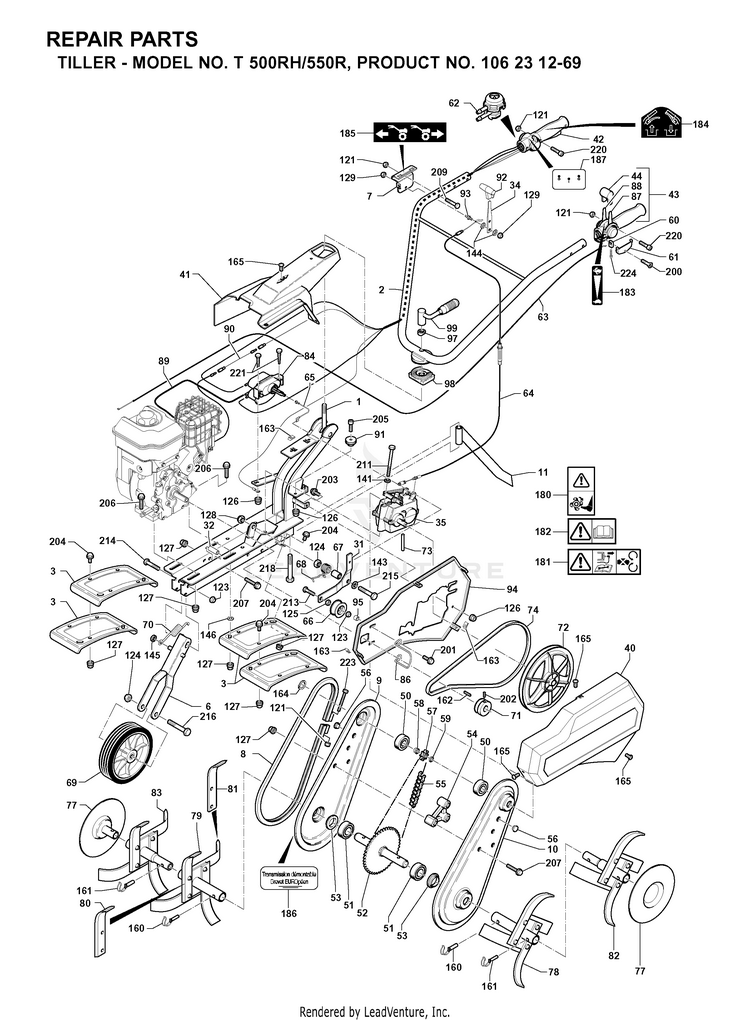

Husqvarna T550 R (2001-04) Cultivator/Tiller

Model: T550 R (2001-04)

Back To Assemblies

Save Part Not Listed?
product name

PRODUCT COMPLETE

...
...
163
CLIP HUS-519653425
...
68
SPRING HUS-519653090
...
201
SCREW HUS-519653412
...
42
NEEDS DESCRIPTION HUS-531008243
...
41
NEEDS DESCRIPTION HUS-531008225
...
123
NUT HUS-519653458
...
209
SCREW HUS-519653437
...
164
RETAINING RING HUS-519653466
...
205
NEEDS DESCRIPTION HUS-531008253
...
202
SCREW HUS-519653020
...
74
BELT HUS-519653058
...
79
TINE HUS-519653029
...
60
NEEDS DESCRIPTION HUS-531008246
...
519653201
NEEDS DESCRIPTION HUS-519653201
...
144
WASHER HUS-519653049
...
129
NUT HUS-519653411
...
72
PULLEY HUS-519653060
...
31
ARM Assy including: 31,124, 67, 143, 215, 213, 125, 66, 123 HUS-519653407
...
207
NEEDS DESCRIPTION HUS-519653463
...
35
GEAR HUS-519653092
...
86
NEEDS DESCRIPTION HUS-519653393
...
185
LABEL HUS-519653084
...
51
BEARING HUS-519653053
...
531008232
NEEDS DESCRIPTION HUS-531008232
...
66
PULLEY HUS-519653457
...
82
NEEDS DESCRIPTION HUS-531008214
...
11
NEEDS DESCRIPTION HUS-531008206
...
161
PIN HUS-519653360
...
70
SPRING HUS-519650260
...
58
SPACER HUS-519653095
...
44
NEEDS DESCRIPTION HUS-531008245
...
97
SPACER HUS-519653414
...
531008211
NEEDS DESCRIPTION HUS-531008211
...
64
CABLE HUS-519653055
...
57
PINION HUS-519653057
...
200
SCREW HUS-531008252
...
124
HUS-725255051
...
221
NEEDS DESCRIPTION HUS-531008255
...
146
WASHER HUS-519653097
...
127
NUT HUS-519653430
...
90
NEEDS DESCRIPTION HUS-531008233
...
78
TINE HUS-519653028
...
203
SCREW HUS-519653435
...
43
NEEDS DESCRIPTION HUS-531008244
...
53
SPACER SLEEVE HUS-519653072
...
63
THROTTLE CABLE HUS-519644361
...
94
NEEDS DESCRIPTION HUS-531008235
...
224
NEEDS DESCRIPTION HUS-531008256
...
181
NEEDS DESCRIPTION HUS-519653271
...
220
BOLT HUS-519653026
...
184
LABEL HUS-519653085
...
128
NEEDS DESCRIPTION HUS-531008221
...
50
BEARING HUS-519002631
...
121
Blocking nut M 6 Z HUS-732261601
...
87
NEEDS DESCRIPTION HUS-531008257
...
206
SCREW HUS-519653413
...
1
NEEDS DESCRIPTION HUS-531008240
...
10
HOUSING HUS-519653042
...
125
NUT HUS-519653456
...
40
COVER HUS-519653423
...
77
NEEDS DESCRIPTION HUS-519653362
...
69
WHEEL HUS-519653259
...
71
NEEDS DESCRIPTION HUS-531008229
...
80
BLADE HUS-519653447
...
7
NEEDS DESCRIPTION HUS-531008222
...
81
BLADE HUS-519653448
...
160
PIN HUS-519653093
...
88
NEEDS DESCRIPTION HUS-531008258
...
92
HANDLE HUS-519653091
...
67
ROD HUS-519653451
...
83
NEEDS DESCRIPTION HUS-531008215
...
223
BOLT HUS-519653010
...
165
SCREW HUS-519653426
...
65
WIRE HUS-519653409
...
55
DRIVE CHAIN HUS-519653009
...
2
NEEDS DESCRIPTION HUS-531008241
...
91
ROLLER HUS-519653052
...
73
SHAFT HUS-519653067
...
531008230
NEEDS DESCRIPTION HUS-531008230
...
52
GEAR HUS-519653007
...
89
HOSE HUS-519653416
...
145
NEEDS DESCRIPTION HUS-519653462
...
56
NEEDS DESCRIPTION HUS-519653391
...
84
NEEDS DESCRIPTION HUS-531008249
...
182
NEEDS DESCRIPTION HUS-519653272
...
98
SPACER HUS-519653415
...
519653081
NEEDS DESCRIPTION HUS-519653081
...
95
NEEDS DESCRIPTION HUS-531008216
...
187
DECAL HUS-519653103
...
180
DECAL HUS-519653096
...
531008213
NEEDS DESCRIPTION HUS-531008213
...
183
NEEDS DESCRIPTION HUS-531008251
...
61
NEEDS DESCRIPTION HUS-531008247
...
8
RING HUS-519653043
...
204
NEEDS DESCRIPTION HUS-531008202
...
216
NEEDS DESCRIPTION HUS-519653131
...
93
SHAFT HUS-519653066
...
34
ARM HUS-519653070
...
531008236
NEEDS DESCRIPTION HUS-531008236
...
59
SPACER HUS-519653094
...
99
NEEDS DESCRIPTION HUS-531008237
...
215
SCREW HUS-519653454
...
141
WASHER HUS-519653450
...
213
SCREW HUS-519653455
...
211
SCREW HUS-519653045
...
6
SUPPORT HUS-519653460
...
32
SPACER HUS-519653424
...
143
WASHER HUS-519653453
...
218
NEEDS DESCRIPTION HUS-531008220
...
162
SCREW HUS-519653021
...
126
NUT HUS-519653432
...
186
LABEL HUS-519653044
...
62
NEEDS DESCRIPTION HUS-531008248
...
214
SCREW HUS-519653046
...
9
HOUSING HUS-519653041
...
3
GUARD HUS-519650281
...
531008250
NEEDS DESCRIPTION HUS-531008250
...
54
BRACKET HUS-519653006
