product name

Husqvarna T55 R (2004-01) Cultivator/Tiller

Model: T55 R (2004-01)

Save Part Not Listed?
product name

PRODUCT COMPLETE

...
...
21
STRUT, RIGHT HUS-539108350
...
22
OIL TANK HUS-539105024
...
19
SPACER HUS-539106962
...
26
Screws HUS-596230901
...
32
HOUR METER HUS-576179401
...
539105281
FUEL LINE 30" HUS-539105382
...
33
Screws HUS-596230901
...
47
CHOKE CONTROL, COMPLETE HUS-539102733
...
539105527
HOSE, FUEL .25 ID X 26" HUS-539107765
...
539105530
FUEL LINE 34" HUS-539105530
...
38
TANK MOUNT HUS-539106931
...
12
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
23
HYDRAULIC CAP HUS-539101202
...
539912222
HOSE CLAMP HUS-539912222
...
539102650
HOSE BARB 90 DEGREE HUS-539102650
...
13
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
40
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
5
FOOT PLATE HUS-539106954
...
34
SCREW 1/4 X 5/8 HUS-539990362
...
35
Washers HUS-596564801
...
28
IGNITION SWITCH KIT HUS-539101770
...
18
ENGINE SHROUD BRKT HUS-539106961
...
39
TANK MOUNT HUS-539106929
...
30
BUSHING HUS-539102519
...
24
BATTERY HOLD DOWN HUS-539106899
...
41
LOOM CLIP HUS-539102685
...
45
Bolts HUS-596435701
...
6
GROMMET, BUMPER HUS-539102587
...
8
FUEL CAP, GENERIC HUS-539130394
...
31
Washers HUS-597338501
...
46
Bolts HUS-596435501
...
25
Washers HUS-597338501
...
3
ANTI-SKID PAD HUS-539977778
...
44
KNOB HUS-539105169
...
20
STRUT MOUNT WELDMENT HUS-539104197
...
11
FUEL TANK RT HUS-539104410
...
29
GSPH HUS-596134901
...
539103275
THROTTLE CABLE HUS-539103275
...
36
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
9
SPRING HUS-539102845
...
1
DECK W/DECALS 61" HUS HUS-539109285
...
17
ENGINE GUARD HUS-539106959
...
539104409
LEFT TANK W/CUP HOLDER HUS-539104409
...
2
FOOTREST ORANGE HUS-539106941
...
27
SEAT BRKT W/DECAL HUS-539105224
...
16
SKID PLATE HUS-539106957
...
4
GSPW Knobs HUS-597783101
...
10
STUD, 5/16C HUS-539102502
...
37
STUD/PLATE MOUNT HUS-539105039
...
539108351
STRUT, LEFT HUS-539108351
...
539102679
FUEL VALVE HUS-539102679
...
43
Nuts HUS-596580701
...
42
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
15
Bolts HUS-596580801
...
14
Nuts HUS-596583702
...
7
CONSOLE WLD HUS-539104996

DECALS

...
...
3
Decals HUS-529527001
...
5
DECAL.DECK.6MIL.EURO.NOSTEP HUS-581724301
...
1
DECAL, EURO SEVERING HUS-539105746
...
4
DECAL, EURO WARNING HUS-539105785
...
539102670
DECAL, FUEL VALVE HUS-539102670
...
12
NEEDS DESCRIPTION HUS-539108267
...
539107745
DECAL - IZ4821 HUS-539107745
...
8
DECAL, MOBIL 1 HUS-539105301
...
16
DECAL, CPSC HUS-539913010
...
18
DECAL - IZIZ4218 HUS-539107743
...
6
DECALS.WARN.CA.SPKARREST/PROP HUS-596024201
...
10
DECAL, EXHAUST HUS-539100128
...
11
DECAL, LGE CROWN 7X6" HUS-539105803
...
15
DECAL.ZTR.MOTCONTRL.SYMBOL.HUS HUS-589283001
...
13
SERVICE DECAL HUS-539107289
...
9
DECAL, HUSQVARNA LOGO 9.25" HUS-539104787
...
2
DECAL, BELT DRIVE HUS-539105744
...
17
DECAL - CE CONSOLE HUS-539106483
...
14
BELT ROUTING DECAL HUS-539107288

PARKING BRAKE

...
...
101
SCREW HUS-519653412
...
51
BEARING HUS-519653053
...
85
NEEDS DESCRIPTION HUS-519653232
...
77
NEEDS DESCRIPTION HUS-519653362
...
55
DRIVE CHAIN HUS-519653009
...
127
NUT HUS-519653430
...
68
SPRING HUS-519653090
...
61
THROTTLE CONTROL HUS-519649471
...
112
NEEDS DESCRIPTION HUS-531008219
...
71
PULLEY HUS-519653068
...
86
NEEDS DESCRIPTION HUS-531008577
...
105
SCREW HUS-519653413
...
9
HOUSING HUS-519653041
...
519653081
NEEDS DESCRIPTION HUS-519653081
...
32
SPACER HUS-519653424
...
56
NEEDS DESCRIPTION HUS-519653391
...
531008211
NEEDS DESCRIPTION HUS-531008211
...
80
BLADE HUS-519653447
...
89
NEEDS DESCRIPTION HUS-531008216
...
83
NEEDS DESCRIPTION HUS-531008215
...
31
ARM Assy including: 31,124, 67, 143, 110, 108, 125, 66, 123 HUS-519653407
...
122
NUT HUS-519006200
...
66
PULLEY HUS-519653457
...
72
PULLEY HUS-519653060
...
67
ROD HUS-519653451
...
40
NEEDS DESCRIPTION HUS-531008207
...
11
NEEDS DESCRIPTION HUS-531008206
...
57
PINION HUS-519653057
...
164
RETAINING RING HUS-519653466
...
60
THROTTLE TRIGGER HUS-519653459
...
123
NUT HUS-519653458
...
104
NEEDS DESCRIPTION HUS-531008202
...
78
TINE HUS-519653028
...
184
LABEL HUS-519653085
...
52
GEAR HUS-519653007
...
141
WASHER HUS-519653450
...
88
HANDLE HUS-519000113
...
183
NEEDS DESCRIPTION HUS-519646680
...
53
NEEDS DESCRIPTION HUS-531008576
...
185
LABEL HUS-519653084
...
64
NEEDS DESCRIPTION HUS-531008209
...
41
NEEDS DESCRIPTION HUS-531008208
...
87
THROTTLE CONTROL HUS-519654065
...
54
BRACKET HUS-519653006
...
126
NUT HUS-519653432
...
163
CLIP HUS-519653425
...
124
HUS-725255051
...
114
BOLT HUS-519653010
...
108
SCREW HUS-519653455
...
161
PIN HUS-519653360
...
100
SCREW HUS-519653461
...
70
SPRING HUS-519650260
...
59
SPACER HUS-519653094
...
4
NEEDS DESCRIPTION HUS-531008204
...
6
SUPPORT HUS-519653460
...
103
SCREW HUS-519653435
...
125
NUT HUS-519653456
...
165
SCREW HUS-519653426
...
115
NEEDS DESCRIPTION HUS-531008253
...
3
NEEDS DESCRIPTION HUS-531008203
...
5
NEEDS DESCRIPTION HUS-531008205
...
121
Blocking nut M 6 Z HUS-732261601
...
113
NEEDS DESCRIPTION HUS-531008220
...
73
SHAFT HUS-519653067
...
531008580
NEEDS DESCRIPTION HUS-531008580
...
143
WASHER HUS-519653453
...
145
NEEDS DESCRIPTION HUS-519653462
...
10
HOUSING HUS-519653042
...
8
RING HUS-519653043
...
62
KNOB HUS-516836515
...
107
SCREW HUS-519653045
...
50
BEARING HUS-519002631
...
1
NEEDS DESCRIPTION HUS-531008200
...
160
PIN HUS-519653093
...
2
NEEDS DESCRIPTION HUS-531008201
...
109
SCREW HUS-519653046
...
79
TINE HUS-519653029
...
111
NEEDS DESCRIPTION HUS-519653131
...
69
WHEEL HUS-519653259
...
110
SCREW HUS-519653454
...
106
NEEDS DESCRIPTION HUS-519653463
...
180
NEEDS DESCRIPTION HUS-531008540
...
82
NEEDS DESCRIPTION HUS-531008214
...
7
GEAR HUS-519653092
...
128
NEEDS DESCRIPTION HUS-531008221
...
531008213
NEEDS DESCRIPTION HUS-531008213
...
162
SCREW HUS-519653021
...
74
BELT HUS-519653058
...
63
NEEDS DESCRIPTION HUS-531008579
...
58
NEEDS DESCRIPTION HUS-531008546
...
65
NEEDS DESCRIPTION HUS-531008210
...
81
BLADE HUS-519653448
...
102
SCREW HUS-519653020

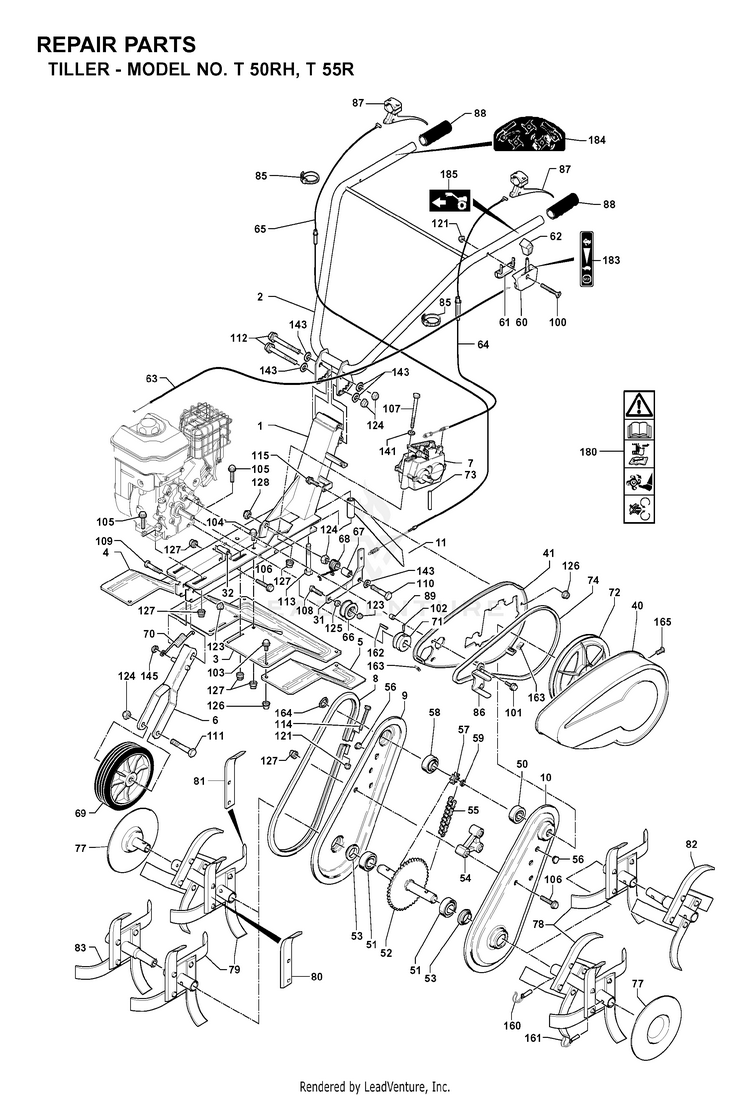

Schematic Image Zoomed
