Husqvarna T55 R (2001-04) Cultivator/Tiller

Model: T55 R (2001-04)

Save Part Not Listed?
product name

PRODUCT COMPLETE

...
...
501 45 27-02
NUT HUS-501452702
...
503 20 02-16
SCREW HUS-503200216
...
503 21 27-16
NEEDS DESCRIPTION HUS-586505201
...
505 27 57-19
SEAL RING HUS-505275719
...
503 68 42-42
BAR BOLT HUS-503684242
...
501 79 50-01
FELLING DOG HUS-501795001
...
501 54 63-01
SCREW HUS-501546301
...
501 45 41-01
PAWL HUS-501454101
...
503 20 02-25
SCREW HUS-503200225
...
503 20 02-50
SCREW HUS-503207450
...
721 12 10-40
GROOVED PIN 3X20 HUS-721121040
...
503 78 24-01
BELLOWS HUS-503782401
...
720 13 07-10
Pins HUS-720130752
...
503 57 89-01
TANK LOCK HUS-503578901
...
501 76 64-03
CHAIN CATCHER HUS-501766403
...
501 76 44-03
CAP HUS-501764403
...
501 76 30-03
AIR CONDUCTOR HUS-501763003
...
503 66 84-01
OIL TANK VENT HUS-503668401
...
503 73 04-01
AIR BAFFLE HUS-503730401
...
501 76 22-02
CRANKCASE HUS-501762202
...
501 76 56-02
OIL CAP HUS-501765602
...
503 72 98-01
AIR NOZZLE HUS-503729801
...
503 22 62-01
PLATE NUT HUS-503226201
...
740 44 05-00
O-RING HUS-740440500
...
724 33 25-56
SCREW *** HUS-724332556

CARBURETOR & AIR FILTER

...
...
503 20 32-16
SCREW HUS-503203216
...
503 21 07-45
SCREW HUS-503210745
...
503 76 48-01
PARTITION HUS-503764801
...
503 16 16-02
INTAKE PIPE HUS-530029814
...
501 63 97-01
PLUG HUS-503405901
...
503 60 84-01
CHOKE CONTROL HUS-503608402
...
505 31 07-51
IMPULSE PIPE HUS-505310751
...
503 28 31-05
CARBURETOR CIQ-EL6 ZAMA HUS-503283105
...
503 73 08-01
GROMMET HUS-503730801
...
503 73 09-01
PLUG HUS-503730901
...
503 89 81-01
AIR FILTER-FELT HUS-503898101
...
503 20 02-16
SCREW HUS-503200216
...
503 20 02-10
SCREW M5 X 10 HUS-503200710
...
503 89 82-01
AIR FILTER HOLDER HUS-503898201
...
501 77 00-02
GASKET HUS-501770002
...
503 89 81-02
AIR FILTER-NYLON HUS-503898102

CARBURETOR DETAILS

...
...
503 47 95-01
PUMPCOVER HUS-503479501
...
503 47 97-01
INLET NEEDLE HUS-503479701
...
503 48 17-01
CHOKE FLAP HUS-503481701
...
503 48 15-01
SPRING HUS-503481501
...
503 48 03-01
GASKET METERING SIDE HUS-503480301
...
503 48 10-01
SPRING HUS-503481001
...
503 47 92-01
SCREW HUS-503479201
...
503 97 44-01
NEEDLE HUS-503974401
...
503 48 00-01
PIN HUS-537020801
...
503 47 96-01
SCREW HUS-503479601
...
503 66 59-01
LEVER HUS-503665901
...
503 48 08-01
SPRING HUS-503994301
...
503 97 42-01
THROTTLE SHAFT HUS-503974201
...
503 47 99-01
SPRING HUS-503479901
...
503 47 90-01
SCREW HUS-503479001
...
503 48 02-01
METERING DIAPHRAGM HUS-503480201
...
503 48 11-01
PLUG HUS-503481101
...
503 47 88-01
STARTER LEVER HUS-503478801
...
503 48 05-01
SCREW HUS-503480501
...
503 48 09-01
SCREW HUS-503480901
...
503 97 45-01
CHOKE SHAFT HUS-503974501
...
503 48 16-01
STARTER LEVER HUS-503481601
...
503 97 43-01
COVER HUS-503974301
...
503 48 01-01
SCREW HUS-503480101
...
503 47 94-01
GASKET PUMPSIDE HUS-503479401
...
503 73 81-01
SPRING HUS-503738101
...
503 48 07-01
HI-SPEED NEEDLE HUS-503480701
...
503 48 13-01
FUEL INLET SCREEN HUS-503481301
...
503 48 18-01
SCREW HUS-503481801
...
503 28 31-05
CARBURETOR CIQ-EL6 ZAMA HUS-503283105
...
503 47 89-01
SPACER HUS-503478901
...
503 75 53-01
SCREW * HUS-503755301
...
503 80 56-01
PUMP DIAPHRAGM HUS-503805601
...
503 47 91-01
THROTTLEFLAP HUS-503479101

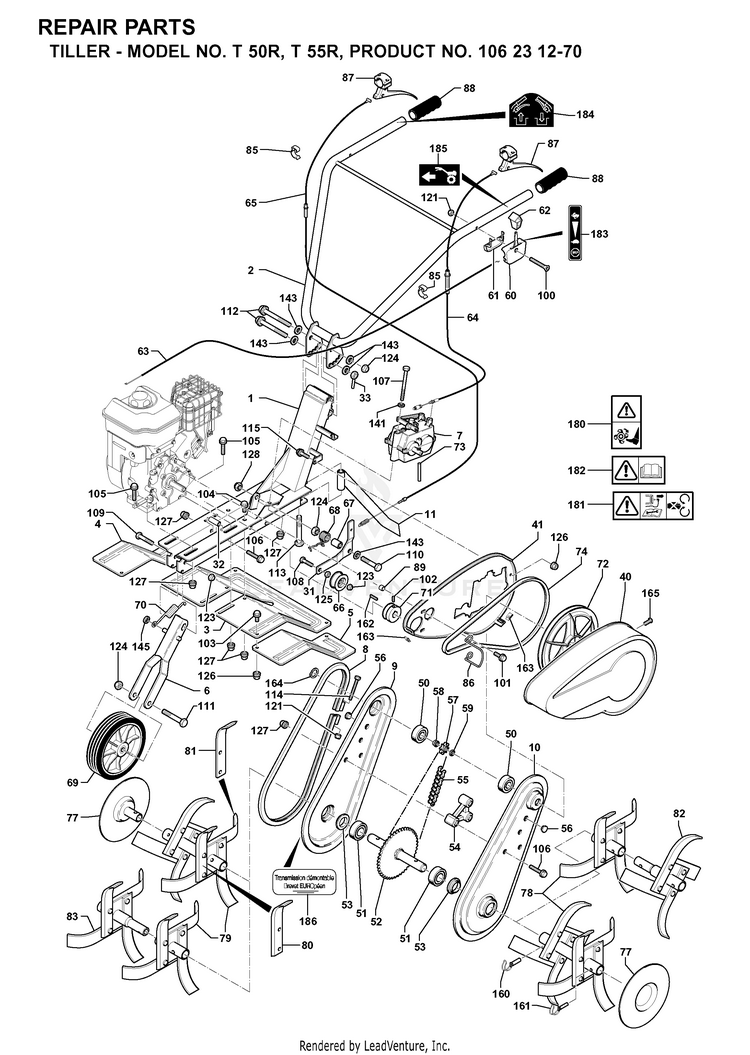

CYLINDER PISTON

...
...
163
CLIP HUS-519653425
...
71
PULLEY HUS-519653068
...
57
PINION HUS-519653057
...
78
TINE HUS-519653028
...
101
SCREW HUS-519653412
...
183
NEEDS DESCRIPTION HUS-519646680
...
54
BRACKET HUS-519653006
...
184
LABEL HUS-519653085
...
65
NEEDS DESCRIPTION HUS-531008210
...
51
BEARING HUS-519653053
...
165
SCREW HUS-519653426
...
8
RING HUS-519653043
...
141
WASHER HUS-519653450
...
145
NEEDS DESCRIPTION HUS-519653462
...
106
NEEDS DESCRIPTION HUS-519653463
...
63
NEEDS DESCRIPTION HUS-519653221
...
4
NEEDS DESCRIPTION HUS-531008204
...
11
NEEDS DESCRIPTION HUS-531008206
...
115
NEEDS DESCRIPTION HUS-531008253
...
181
NEEDS DESCRIPTION HUS-519653271
...
50
BEARING HUS-519002631
...
109
SCREW HUS-519653046
...
62
KNOB HUS-516836515
...
519004168
THROTTLE CABLE HUS-519644361
...
89
NEEDS DESCRIPTION HUS-531008216
...
531008203
NEEDS DESCRIPTION HUS-531008203
...
87
THROTTLE CONTROL HUS-519654065
...
6
SUPPORT HUS-519653460
...
2
NEEDS DESCRIPTION HUS-531008201
...
186
LABEL HUS-519653044
...
519653081
NEEDS DESCRIPTION HUS-519653081
...
182
NEEDS DESCRIPTION HUS-519653272
...
33
NEEDS DESCRIPTION HUS-519653038
...
124
HUS-725255051
...
88
HANDLE HUS-519000113
...
59
SPACER HUS-519653094
...
5
NEEDS DESCRIPTION HUS-531008205
...
102
SCREW HUS-519653020
...
127
NUT HUS-519653430
...
105
SCREW HUS-519653413
...
77
NEEDS DESCRIPTION HUS-519653362
...
69
WHEEL HUS-519653259
...
70
SPRING HUS-519650260
...
10
HOUSING HUS-519653042
...
112
NEEDS DESCRIPTION HUS-531008219
...
128
NEEDS DESCRIPTION HUS-531008221
...
160
PIN HUS-519653093
...
74
BELT HUS-519653058
...
121
Blocking nut M 6 Z HUS-732261601
...
64
NEEDS DESCRIPTION HUS-531008209
...
32
SPACER HUS-519653424
...
85
HOLDER HUS-519006417
...
56
NEEDS DESCRIPTION HUS-519653391
...
164
RETAINING RING HUS-519653466
...
103
SCREW HUS-519653435
...
61
THROTTLE CONTROL HUS-519649471
...
53
SPACER SLEEVE HUS-519653072
...
123
NUT HUS-519653458
...
122
NUT HUS-519006200
...
531008211
NEEDS DESCRIPTION HUS-531008211
...
100
SCREW HUS-519653461
...
125
NUT HUS-519653456
...
185
LABEL HUS-519653084
...
104
NEEDS DESCRIPTION HUS-531008202
...
67
ROD HUS-519653451
...
73
SHAFT HUS-519653067
...
107
SCREW HUS-519653045
...
1
NEEDS DESCRIPTION HUS-531008200
...
41
NEEDS DESCRIPTION HUS-531008208
...
60
THROTTLE TRIGGER HUS-519653459
...
113
NEEDS DESCRIPTION HUS-531008220
...
180
DECAL HUS-519653096
...
40
NEEDS DESCRIPTION HUS-531008207
...
114
BOLT HUS-519653010
...
58
SPACER HUS-519653095
...
79
TINE HUS-519653029
...
81
BLADE HUS-519653448
...
68
SPRING HUS-519653090
...
162
SCREW HUS-519653021
...
126
NUT HUS-519653432
...
110
SCREW HUS-519653454
...
72
PULLEY HUS-519653060
...
161
PIN HUS-519653360
...
143
WASHER HUS-519653453
...
531008213
NEEDS DESCRIPTION HUS-531008213
...
108
SCREW HUS-519653455
...
7
GEAR HUS-519653092
...
83
NEEDS DESCRIPTION HUS-531008215
...
9
HOUSING HUS-519653041
...
86
NEEDS DESCRIPTION HUS-519653393
...
66
PULLEY HUS-519653457
...
55
DRIVE CHAIN HUS-519653009
...
80
BLADE HUS-519653447
...
111
NEEDS DESCRIPTION HUS-519653131
...
82
NEEDS DESCRIPTION HUS-531008214
...
31
ARM Assy including: 31,124, 67, 143, 110, 108, 125, 66, 123 HUS-519653407
...
52
GEAR HUS-519653007

MUFFLER

...
...
503 74 91-01
MUFFLER - USA HUS-503749103
...
503 74 97-01
SCREEN HUS-503749701
...
501 76 88-01
SILENCER BRACKET HUS-501768801
...
503 21 82-02
SQUARE HEAD SCREW 5X80 HUS-503218202
...
503 22 24-01
NUT HUS-503222401
...
724 12 87-55
SCREW HUS-724128759
...
501 76 66-02
MUFFLER - USA HUS-503749103
