Husqvarna T535i XP Chain Saw

Model: T535i XP

Save Part Not Listed?
product name

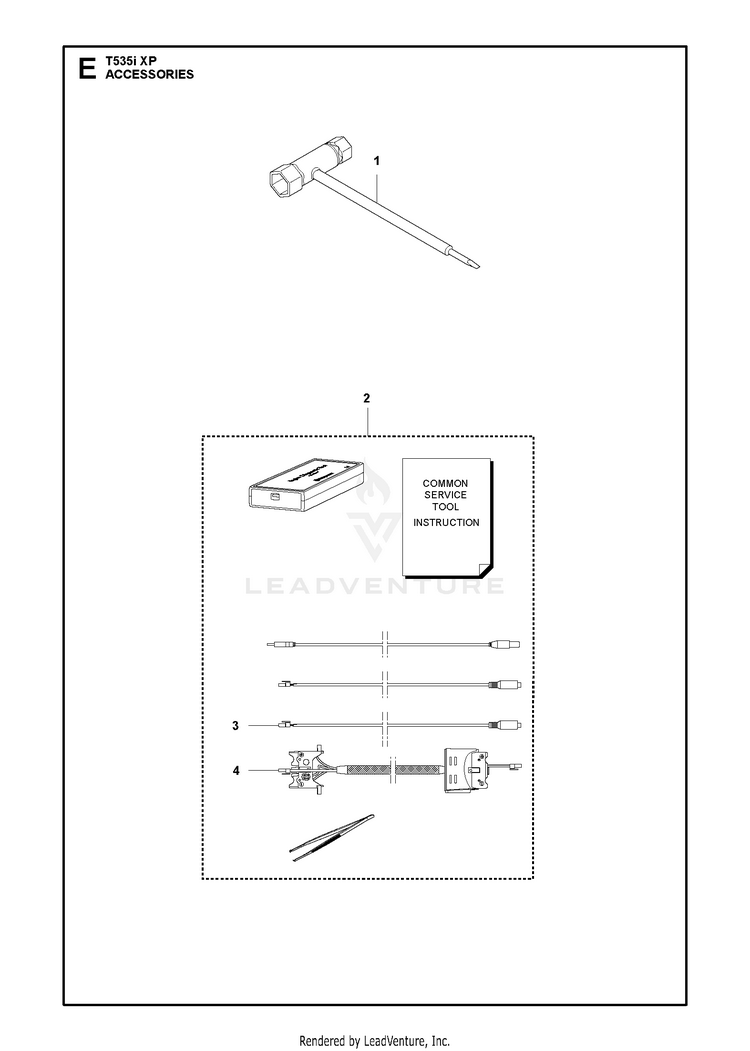

ACCESSORIES

...
...
2
DIAGNOSTIC TOOL KIT HUS-583897101
...
3
CABLE ASSY HUS-576952201
...
4
WIRING ASSY HUS-579621301
...
1
COMBINATION WRENCH COMBI TOOL HUS-531222001

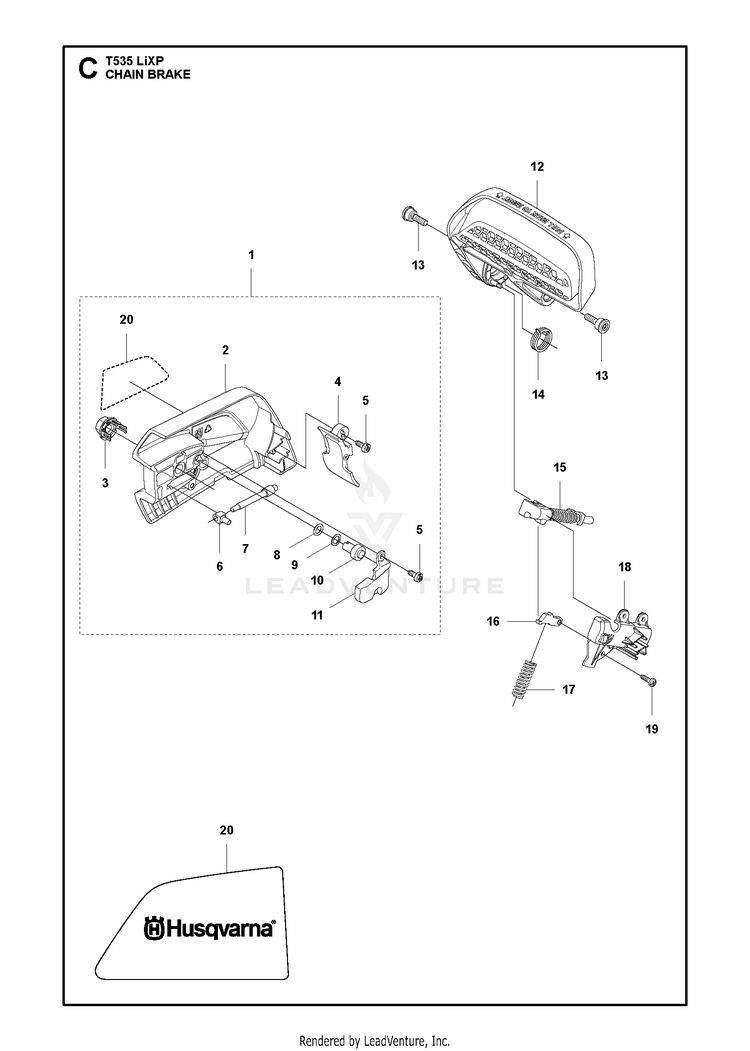

CHAIN BRAKE

...
...
10
WORM WHEEL LEFT HAND TEETH HUS-599724101
...
9
WASHER HUS-503230063
...
2
CLUTCH COVER HUS-576905701
...
16
CATCH HUS-577272001
...
20
DECAL HUS-578228901
...
8
O-RING HUS-740480702
...
1
CLUTCH COVER ASSY HUS-576905603
...
6
PIN BAR ADJUSTING HUS-588850301
...
5
SCREW HUS-503217072
...
13
SCREW HUS-503893001
...
15
SHAFT ASSY HUS-577549501
...
4
CHIP GUARD HUS-577722101
...
7
SCREW HUS-537397001
...
14
TORSION SPRING HUS-577649801
...
12
HAND GUARD HUS-576903801
...
19
SCREW HUS-503212813
...
3
NUT RETAINER ASSY HUS-505197301
...
18
BRACKET HUS-577365601
...
17
SPRING HUS-576904601
...
11
COVER LID HUS-505214501

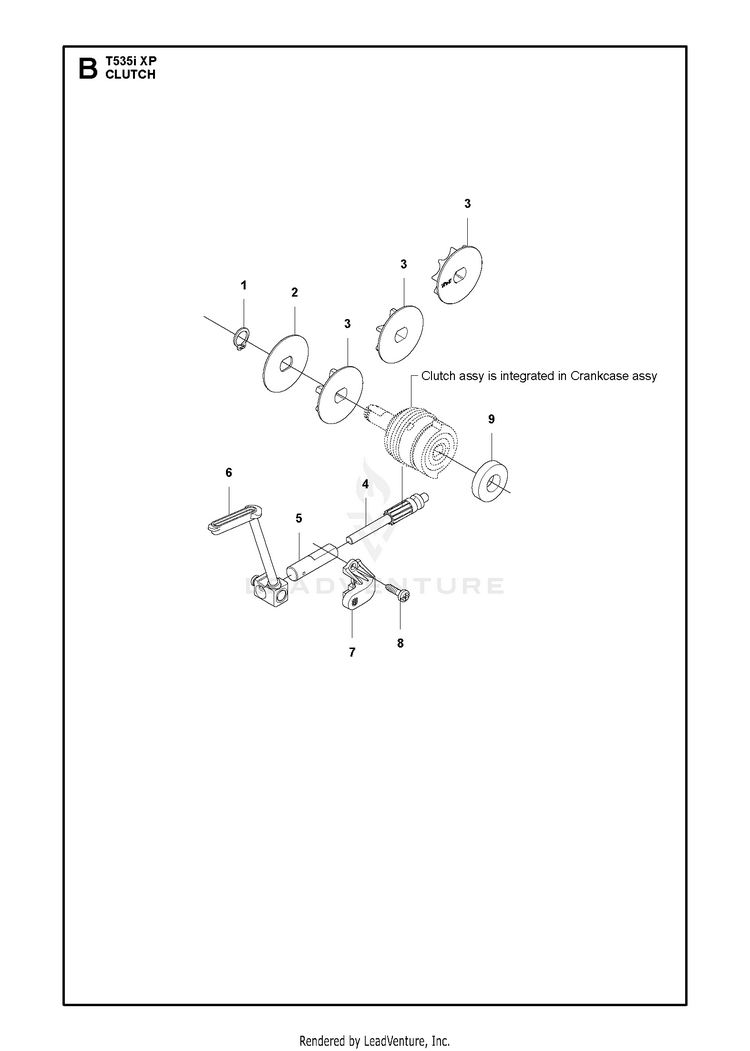

CLUTCH

...
...
3
SPUR SPROCKET 3/8" - 6T 3/8"mini - 6T HUS-590087701
...
3
SPUR SPROCKET 1/4IN MINI 9T SP 1/4"mini - 9T - SP11G HUS-535557401
...
5
PUMP CYLINDER HUS-537154801
...
7
BRACKET HUS-579246901
...
4
PISTON PUMP HUS-540057901
...
3
Sprockets .325"mini - 7T HUS-594035201
...
1
RETAINING RING SGA 10 HUS-735311200
...
8
SCREW HUS-503212813
...
2
WASHER HUS-577271501
...
6
OIL HOSE HUS-577272501
...
3
SPUR SPROCKET 1/4" 8T "1/4"" - 8T" HUS-579534501
...
9
DISTANCE Not needed with Clutch assy, 585 57 64-01 HUS-580760601

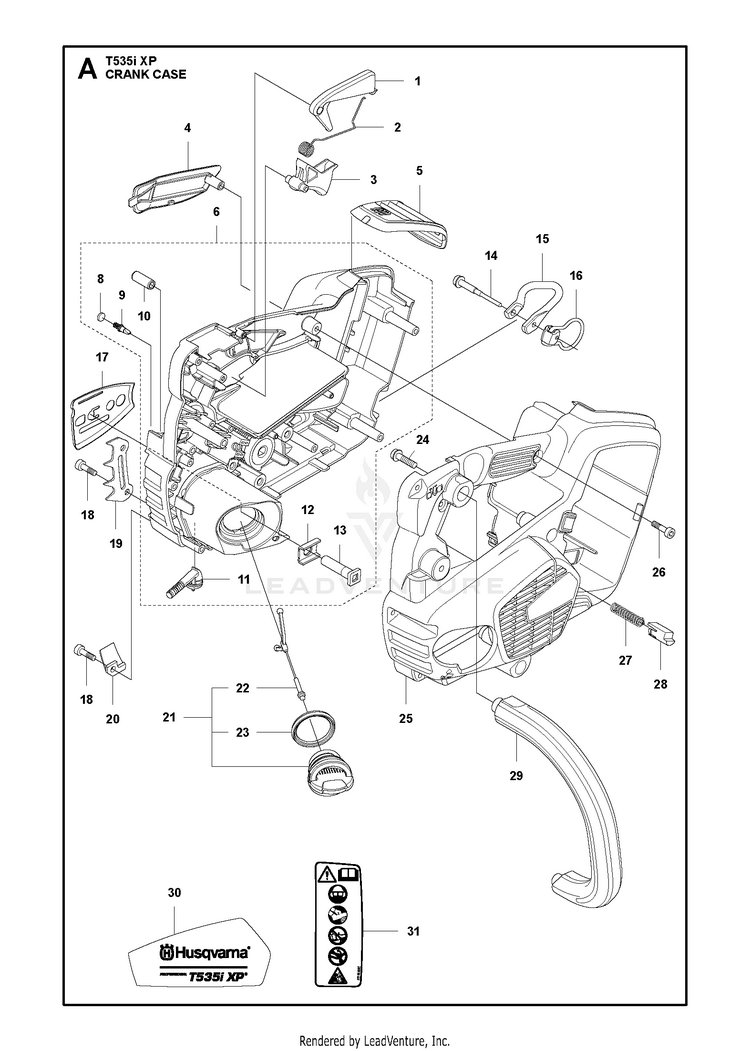

CRANKCASE

...
...
5
COVER HUS-576901201
...
20
CHAIN CATCHER HUS-505288501
...
2
SPRING HUS-544099901
...
8
SINTERED BRONZE FILTER HUS-537403502
...
11
OIL SCREEN HUS-598749201
...
26
SCREW IHSCT MT4X18 10.9 ZN/FE HUS-503216674
...
6
CRANKCASE ASSEM FROM REV G For keypad, please refer to ELECTRICAL page in the IPL HUS-581053803
...
28
PUSH BUTTON HUS-577996601
...
23
SEALING HUS-589241101
...
29
FRONT HANDLE HUS-576901101
...
22
TANK LOCK HUS-503578901
...
27
SPRING PUSH OUT HUS-585480001
...
19
INDRE BARKSTØD HUS-577286601
...
9
VALVE-CHECK (DUCKBILL) HUS-530026119
...
12
PLATE HUS-576999701
...
1
THROTTLE LOCKOUT HUS-506495701
...
31
DECAL HUS-577844301
...
21
TANK CAP ASSY HUS-522620003
...
14
SCREW ITXSCFM HUS-522847901
...
30
DECAL PRODUCT T535I XP HUS-578229002
...
13
BOLT HUS-503875401
...
15
LOOP HUS-576381301
...
25
CRANKCASE HUS-576901002
...
17
CHAIN GUIDE HUS-576901401
...
4
HANDLE INSERT HUS-576900901
...
3
THROTTLE CONTROL HUS-577312601
...
18
SCREW HUS-503217416
...
16
LOOP HUS-580860002
...
24
SCREW IHSCFT HUS-503216872
...
10
GUIDE BAR LOCATING PIN HUS-501623301

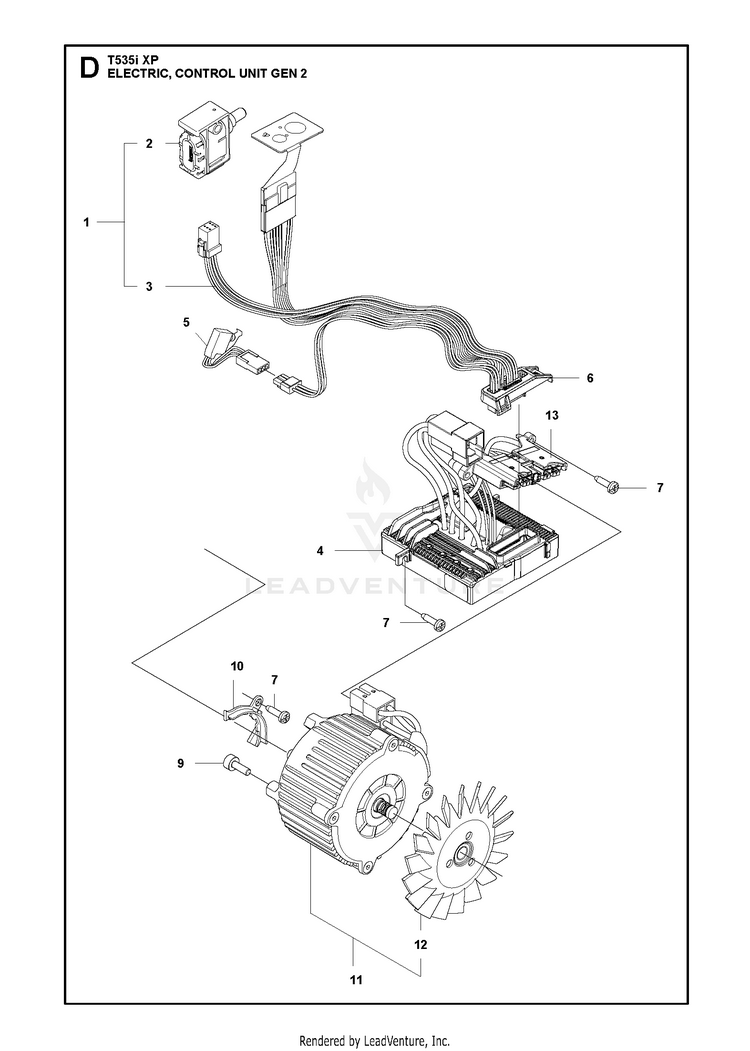

ELECTRICAL

...
...
6
BRACKET HUS-587327201
...
11
MOTOR ASSY BLDC D70 Complete with fan HUS-577315802
...
4
CONTROL UNIT HUS-586265201
...
9
SCREW HUS-503202512
...
13
CONNECTOR BATTERY HUS-593813001
...
12
FAN HUS-581300901
...
1
SWITCH KIT BATTERY TOP HANDLE HUS-593896101
...
2
TRIGGER SWITCH IPX4 HUS-582050701
...
7
SCREW HUS-503212813
...
5
WIRING ASSY HUS-577827701
...
3
WIRING ASSY SIGNAL TOPHANDLE HUS-582713402
...
10
COVER HUS-577585201
