Husqvarna T525 Chain Saw

Model: T525

Back To Assemblies

Save Part Not Listed?

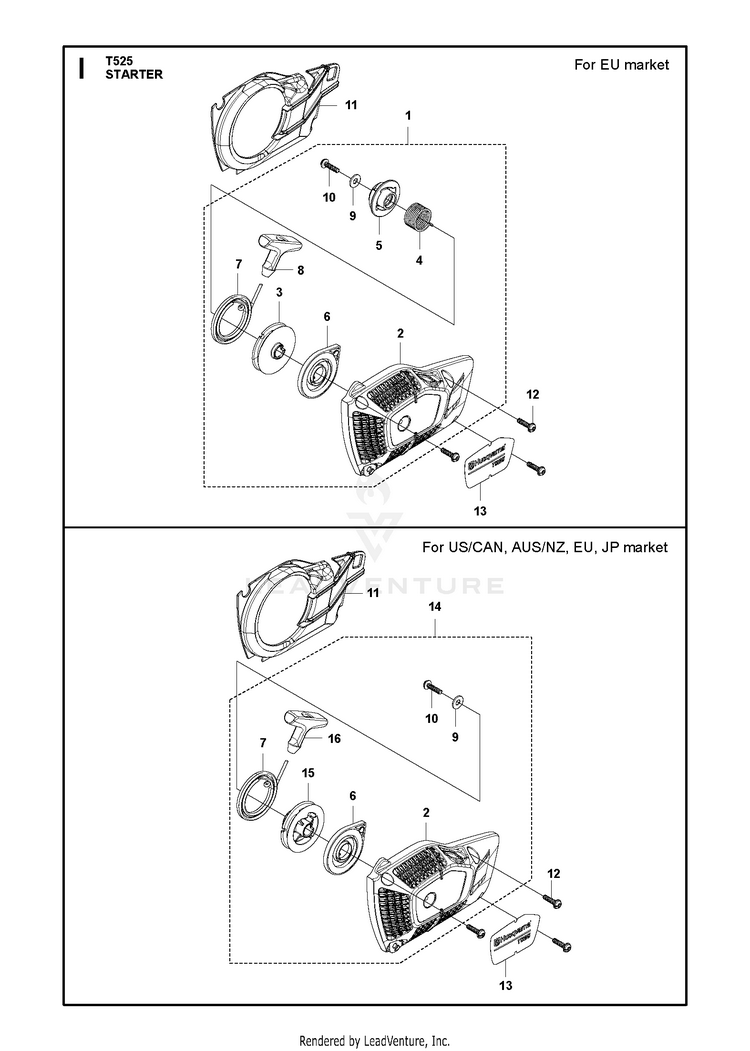

product name

STARTER

...
...
2
STARTER HOUSING ORANGE s/n up to 20202700809 for all market HUS-587875601
...
14
STARTER ASSY T525 (WITHOUT DA s/n up to 20202700809 for US/CA, AU/NZ market HUS-596914001
...
10
SCREW (RPLS 267132210) HUS-521518001
...
6
SPRING HUS-513734601
...
12
SCREW HUS-521518101
...
1
STARTER ASSY s/n up to 20202609488 For EU market HUS-587875501
...
11
COOLING AIR CONDUCTOR HUS-587876401
...
14
STARTERS For US/CAN, AUS/NZ market, s/n from 20202700810 For EU, JP market HUS-596914002
...
16
STARTER HANDLE For US/CAN, AUS/NZ market, s/n from 20202700810 For EU, JP market HUS-593587302
...
2
HOUSINGS HUS-587875602
...
4
SPRING s/n up to 20202609488 For EU market HUS-587875901
...
3
STARTER PULLEY s/n up to 20202609488 For EU market HUS-587875801
...
7
ROPE HUS-513417101
...
8
STARTER HANDLE s/n up to 20202609488 For EU market HUS-575489501
...
13
DECAL STARTER HUS-593781701
...
5
RATCHET s/n up to 20202609488 For EU market HUS-587876001
...
9
WASHER HUS-505054401
...
15
STARTER PULLEY For US/CAN, AUS/NZ market, s/n from 20202700810 For EU, JP market HUS-593587101
